| Prod Model: |

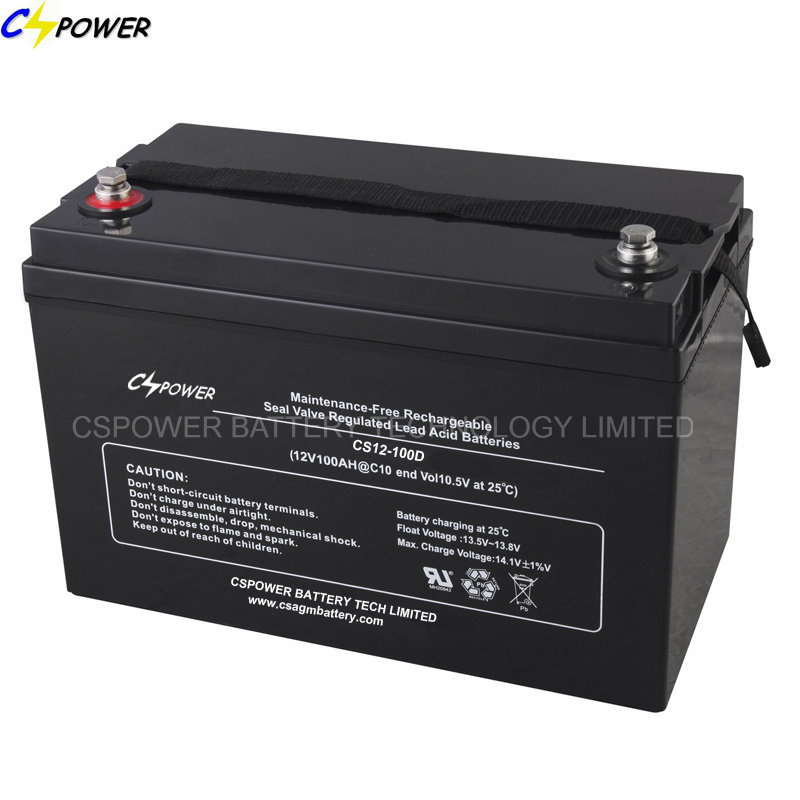

CS12-100D AGM VRLA Battery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
12V Rechargeable Battery |
| Maximum Capacity: |
300ah VRLA Battery |
| Size: |
L*W*H=329*173*210mm |
| Weight: |
28.5kgs AGM Battery |
| Warranty: |
3 Years Solar Battery |
| Expected Cycle Life: |
10-12 Years Sealed Lead Acid Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Delivery Time: |
7-10 Days |
| Proof: |
Waterproof |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Rechargeable AGM VRLA Battery 12V 100Ah for solar backup
Long life Rechargeable AGM VRLA Battery 12V Battery for solar
SLA Battery/VRLA Battery/UPS Battery 3 years warranty
Maintenance free Batteries over 10-12 years design life
Features
- Sealed and maintenance free operation
- Non-Spillable construction design.
- ABS Containers and Covers (UL94HB), UL94V-0 optional.
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
- Flexibility design for multiple install positions.
Construction
· Component ......Raw material ·
Sealant ........Epoxy Resin
· Positive ........Lead dioxide ·
Safety valve .....EPDR
· Negative ........Lead ·
Terminal ........Copper
· Container ........ABS ·
Separator ........Fiber glass
· Cover ........ABS ·
Electrolyte .......Sulfuric acid
Applicition
1,Solar & Wind power systems
2,UPS system
3,Uninterruptible power supplies
4,Golf cart, Electric vehicle
5,Electric powered bicycle and wheelchairs
6,Marine equipment
7,Communication equipment
8,Power tools
9,Telecommunication systems
10,Fire & security systems
About CSPOWER:
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
CSPOWER Battery Tech Co.,Ltd supply our customers reliable products with high quality and competitive price, since we have our own Lead mine & smelter factory & plate factory & SLA battery assembling factory, the purity quotient of our lead is99.998%.
The main products of CSPOWER is 2V/6V/12V AGM sealed free maintenance lead acid battery, Solar deep cycle battery, Solar GEL battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.
Contact CSPOWER Details:
Web: www.csbattery.net
www.csagmbattery.com
www.cssolarbattery.com
www.cspowerinverter.com
http://cspower.en.made-in-china.com/
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-1.2D | 12 | 1.2 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.3D | 12 | 1.3 | 0.55 | 1.21 | 98 | 3.86 | 45 | 1.77 | 52 | 2.05 | 59 | 2.32 | T0 |
| CS12-1.9D | 12 | 1.9 | 0.87 | 1.91 | 178 | 7.01 | 35 | 1.38 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-2.9D | 12 | 2.9 | 1.05 | 2.31 | 79 | 3.11 | 56 | 2.20 | 100 | 3.94 | 106 | 4.17 | T0 |
| CS12-2.3D | 12 | 2.3 | 0.90 | 1.98 | 178 | 7.01 | 34 | 1.34 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.3D | 12 | 3.3 | 1.24 | 2.73 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-3.5D | 12 | 3.5 | 1.28 | 2.82 | 134 | 5.28 | 67 | 2.64 | 60 | 2.36 | 66 | 2.60 | T0 |
| CS12-4D | 12 | 4 | 1.35 | 2.97 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-4.5D | 12 | 4.5 | 1.53 | 3.37 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5D | 12 | 5 | 1.70 | 3.74 | 90 | 3.54 | 70 | 2.76 | 101 | 3.98 | 106 | 4.17 | T1 |
| CS12-5.5D | 12 | 5.5 | 1.86 | 4.09 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-5D | 12 | 5 | 1.67 | 3.67 | 151 | 5.94 | 51 | 2.01 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-6.5D | 12 | 6.5 | 2.00 | 4.4 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | T1 |
| CS12-7D | 12 | 7 | 2.10 | 4.62 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.2D | 12 | 7.2 | 2.20 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-7.5D | 12 | 7.5 | 2.30 | 5.06 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-8D | 12 | 8 | 2.35 | 5.17 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-9D | 12 | 9 | 2.50 | 5.50 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-10D | 12 | 10 | 3.10 | 6.82 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-10D | 12 | 10 | 2.95 | 6.49 | 151 | 5.94 | 65 | 2.56 | 111 | 4.37 | 116 | 4.57 | T2 |
| CS12-12D | 12 | 12 | 3.35 | 7.37 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-14D | 12 | 14 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T1 |
| CS12-15D | 12 | 15 | 4.80 | 10.56 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-17D | 12 | 17 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-18D | 12 | 18 | 5.00 | 11.00 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.50 | 12.10 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-24D | 12 | 24 | 7.60 | 16.72 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-24D | 12 | 24 | 7.80 | 17.16 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T32 |
| CS12-26D | 12 | 26 | 8.10 | 17.82 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 8.60 | 18.92 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-28D | 12 | 28 | 9.00 | 19.80 | 166 | 6.54 | 126 | 4.96 | 174 | 6.85 | 181 | 7.13 | T4 |
| CS12-33D | 12 | 33 | 10.00 | 22.00 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.20 | 22.44 | 196 | 7.72 | 131 | 5.16 | 163 | 6.42 | 180 | 7.09 | T16 |
| CS12-38D | 12 | 38 | 12.20 | 26.84 | 197 | 7.76 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-40D | 12 | 40 | 13.0 | 28.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 13.50 | 29.70 | 197 | 7.76 | 166 | 6.54 | 171 | 6.73 | 171 | 6.73 | T12 |
| CS12-50D | 12 | 50 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 224 | 8.82 | T12 |
| CS12-55D | 12 | 55 | 16.20 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.31 | 229 | 9.02 | T9/T16 |
| CS12-60D | 12 | 60 | 19.40 | 42.68 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T7 |
| CS12-65D | 12 | 65 | 20.50 | 45.10 | 350 | 13.78 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 22.00 | 48.40 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-80D | 12 | 80 | 23.40 | 51.48 | 260 | 10.24 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 22.50 | 49.50 | 350 | 13.78 | 169 | 6.65 | 179 | 7.05 | 179 | 7.05 | T14 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 307 | 12.09 | 169 | 6.65 | 211 | 8.31 | 215 | 8.46 | T16 |
| CS12-90D | 12 | 90 | 27.00 | 59.40 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T8 |
| CS12-100D | 12 | 100 | 29.80 | 65.56 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-100P | 12 | 100 | 30.00 | 66.00 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-110D | 12 | 110 | 31.10 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-110P | 12 | 110 | 33.40 | 73.48 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-120D | 12 | 120 | 36.50 | 80.30 | 407 | 16.02 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-150D | 12 | 150 | 42.50 | 93.50 | 484 | 19.06 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-160D | 12 | 160 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T18 |
| CS12-165D | 12 | 165 | 49.00 | 107.80 | 494 | 19.45 | 204 | 8.03 | 208 | 8.19 | 232 | 9.13 | T11 |
| CS12-180D | 12 | 180 | 56.50 | 124.30 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-200D | 12 | 200 | 60.00 | 132.00 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64.00 | 140.80 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69.50 | 152.90 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T9 |
| CS12-250P | 12 | 250 | 68.00 | 149.60 | 522 | 20.55 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-300D | 12 | 300 | 73.00 | 160.60 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
