| Prod Model: |
FN-BU1 |
| Warranty: |
1 Years |
| Model Number: |
LiFePO4 |
| Weight: |
20kg |
| Composed Type: |
Customized |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Usage: |
High-Current Device, Medical Equipment, etc |
Product Description
Overview
SpecificationsPlace of Origin:Guangdong, China (Mainland)Brand Name:REVESIModel Number:FN-BU1Composed Type:customizedType:Li-IonComponents:PVCSize:customized, customers requiremenVoltage:12VWeight:20kgNominal Capacity:100AhApplication:High-current device, medical equipment, etc, electric motorsChemistry:LiFePO4Charge Temprature:0-45 degree centigrateCertificate:CE,UL, MSDSParts:BMSCycle life:2000 TimesWarranty:1 YearPackaging & DeliveryPackaging Details:Original package or according to customer requirement.
Delivery Detail:Shipped in 7 days after paymentrechargeable deep cycle best price high quality sealed 12v 100ah solar rocket ups battery
Product DescriptionSpecification:| Brand | REVESI |
| Model | FN-BU1 |
| Nominal Voltage | 12V |
| Nominal Capacity | 100Ah |
| Max.Charge Current | 2A (adjustable) |
| continuous discharge current | 10A (adjustable) |
| Max pulse discharge current | 15A (adjustable) |
| over-charge protection voltage | 12.6±0.025V |
| over-discharge protection voltage | 9±0.10V |
| cycle life | 2000 times |
| charge mode | CC/CV |
| charge temperature | 0~45°C,45~85%RH |
| discharge temperature | -20~55°C,45~85%RH |
| storage temperature and RH | within 1 month -20~+55°C,45~85%RH
above 3 months -20~+45°C,45~85%RH
within 12 months -5~+20°C,45~85%RH |
| size | customized |
| matching charger | 12.6v 5A (DC) |
| weight | About 20kg |
Advantages1.Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 500 times deep cycle 80% capacity left,4 times of lead acid battery
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH/Ni-Cd battery, 1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Safety Precaution:
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway

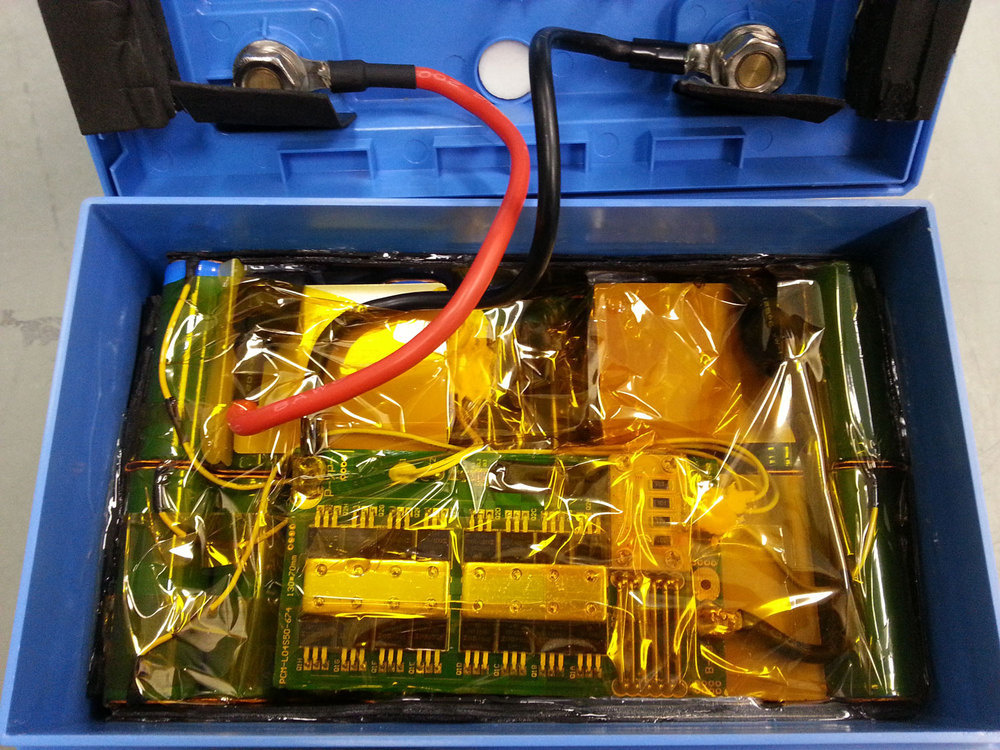

Detailed Images
Advantages LiFePO4 Battery Advantage:
1.Long cycle life:2000+cycles
2.High voltage,low self-discharge
3.Environment friendly
4.No memory effect
The main application
1 Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
FAQ1.Shipping: We will ship by Fedex,UPS,TNT,DHL door to door.Shipping time is 3-5 working days.
2.Discount:if you order above 5pcs per order please contact with us we can give you some discount.
3.Guarantee;1 year warranty,if there is any quality problem in one month we can return the money after you provide the proof.
4.All the battery we use high quality cell and BMS,we 100% test every battery before shipping.Rest assured purchased!
