| Prod Model: |
HTL6V-310Ah |
| Model: |
Rechargeable Gel Battery 6V 310ah Deep Cycle |
| Size: |
295*178*354*360mm |
| Gross Weight: |
46kgs |
| Warranty: |
3 Years |
| Delivery Time: |
10-15 Days |
| Design Life: |
18 Years |
| Brand: |
Cspower/OEM |
| Color: |
Red Color with Black Cover |
| OEM: |
Available |
| Rated Capacity: |
310ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar and Wind System |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Gel |
Product Description
rechargeable Gel Battery 6V 310ah Deep Cycle for Power Storage
CSPOWER TAGS:
1. Power supply, battery, Power battery, batteries lead acid, motive battery, deep cycle gel battery
2. Sealed lead acid battery, UPS Battery, Gel batteries, solar battery, long life battery,rechargeable battery
3. Gel Battery, Deep cycle Battery, Solar Gel Battery, Solar panel Battery, Solar Inverter Battery, Solar charger controller Battery
4. Lead acid battery, rechargeable battery, SLA Battery, SMF Battery, Free maintenance battery, sealed battery, AGM Battery, batteries lead acid, power storage batteries
5. OPzV Battery, Tubular Gel Battery, 2V Gel Battery. 25years life gel battery
1. NEWEST IN 2016, CSPOWER HIGH TEMPERATURE LONG LIFE GEL BATTERY, BEST CHOICE TO WORK IN HOT TEMPERATURE SITES AND LONG LIFE OVER 15YEARS.
Many countries in Middle East and Africa such as Pakistan, Israel, Nigeria have an average temperature of 40°C during hot season. If the battery lay out of door, the temperature is even higher and can go up to 50 °C. You may already know it, for every 10°C increase in temperature, the battery life will be reduced by half.
Due to the nature and construction of the normal AGM lead acid battery, it cannot bear such a hot temperature, this is why for outdoor use have to be equipped with air-conditioner.
Not only does it increase your capital expenses (CAPEX) and operational expenditure (OPEX) by spending thousands of dollars per year and per site in maintenance & electricity fees, it will also increase the energy used and thus increase your CO2 emissions. Reduction of Energy Consumption and increase of Energy Efficiency is one of the most important keys for outdoor use application.
Considering the above challenge, we developed a new range type of battery adapted for these environments.
We are proud to introduce our High Temperature Long Life Deep Cycle GEL Battery - HTL series.
Using thick plate design with special additives (super-C). This newly developed battery can work even high temperature up to 60°C without the use of any air-conditioner.

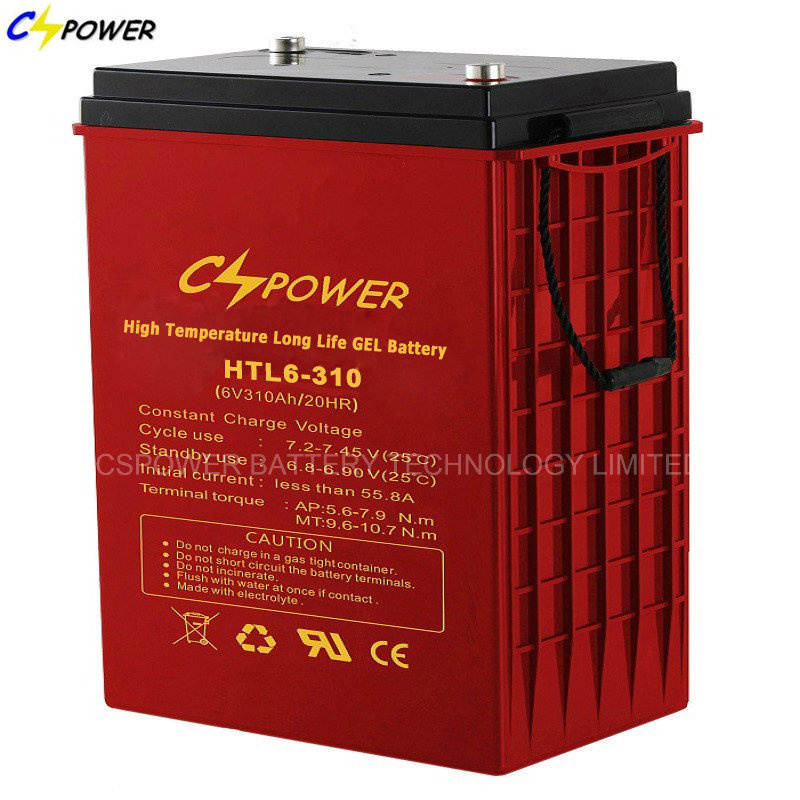

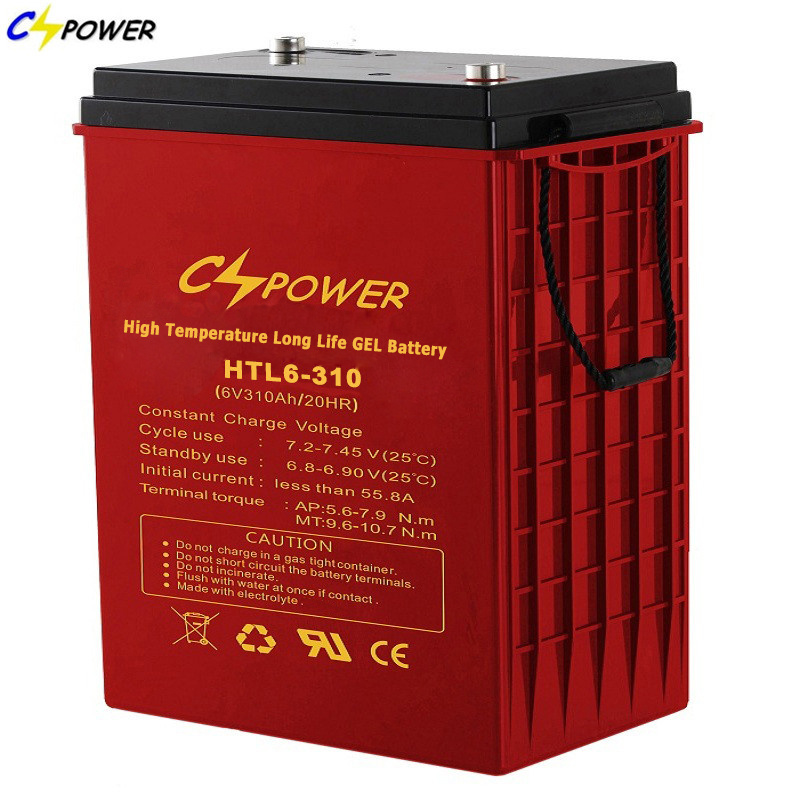

2. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Features
motive gel battery 6v 310ah deep cycle for power storage
HTL series is High-temperature sealed free maintenance deep cycle GEL battery with 15-18 years design life in float service. Best partner for solar and UPS system.
It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high temperature sites.
3. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Speciality
rechargeable gel battery 6v 310ah deep cycle for power storage
1) Positive plate: Thick high Sn low Ca grid minimize corrosion and prolong life
2) Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
3) Separator: Advanced AGM separator for ultra low float current
4) Electrolyte: nano GEL electrolyte import from Evonik Degussa Germany.
5) Battery container and cover: fire resistance ABS for higher temperature
6) Pillar seal: 100% factory tested, proven two layers epoxy resin seal
7) Relief valve : Complete with integrated flame arrestor
4. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Advantages
rechargeable gel battery 6v 310ah deep cycle for power storage
1. Three years warranty at 35°C-40°C average
2. Able to operate at -40°C to 60°C
3. Longer life and higher stability under high temp. environment (no air-con needed)
4. Use super-C additives lead plates: Deep discharge recovery capability
5. Cycle usage: 50% DOD, 1500 Cycles work in high/cold temp. area.
5. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Application
BTS Stations
Solar & Wind energy system
UPS system
Golf Cart&Electric Wheels
Other power system

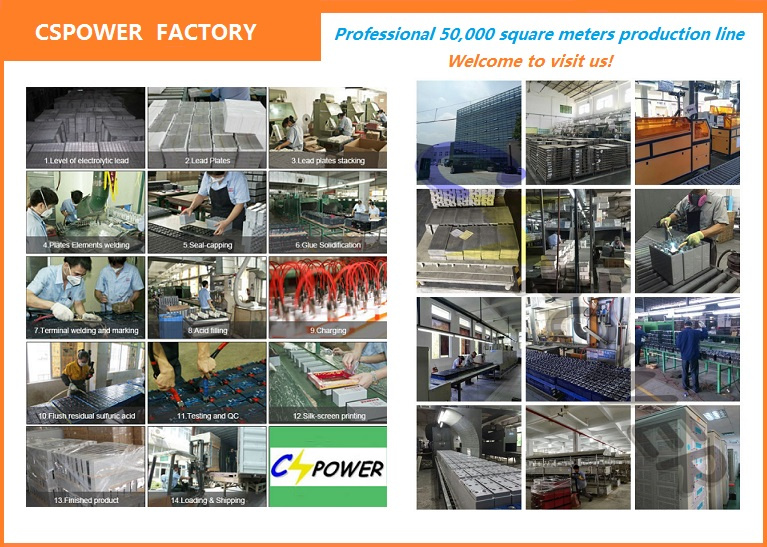

6. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Factory Pictures
rechargeable gel battery 6v 310ah deep cycle for power storage
7. CSPOWER High Temperature Solar Gel Battery 12v 6v Specifications
| POWER MODEL | Voltage | Capacity | Dimension (mm) | Weight (kg) |
| (V) | (Ah) | Length | Width | Height | Total Height | (±3%) |
| HTL12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 |
| HTL12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6.0 |
| HTL12-24 | 12 | 25 | 166 | 175 | 126 | 126 | 8.3 |
| HTL12-26 | 12 | 25 | 165 | 126 | 174 | 179 | 8.4 |
| HTL12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 |
| HTL12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 |
| HTL12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16.0 |
| HTL12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 |
| HTL12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25.0 |
| HTL12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 |
| HTL12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 |
| HTL12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 |
| HTL12-110 | 12 | 110 | 331 | 174 | 214 | 220 | 33.3 |
| HTL12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 |
| HTL12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 |
| HTL12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 |
| HTL12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56.0 |
| HTL12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.4 |
| HTL12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65.0 |
| HTL12-250 | 12 | 250 | 520 | 268 | 220 | 226 | 71.0 |
| HTL12-300 | 12 | 300 | 520 | 268 | 220 | 226 | 77.0 |
| HTL6-200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 |
| HTL6-210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 |
| HTL6-220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 |
| HTL6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 |
| HTL6-310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 |
| HTL6-330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 |
| HTL6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 |
| HTL6-420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 |
www.csagmbattery.com

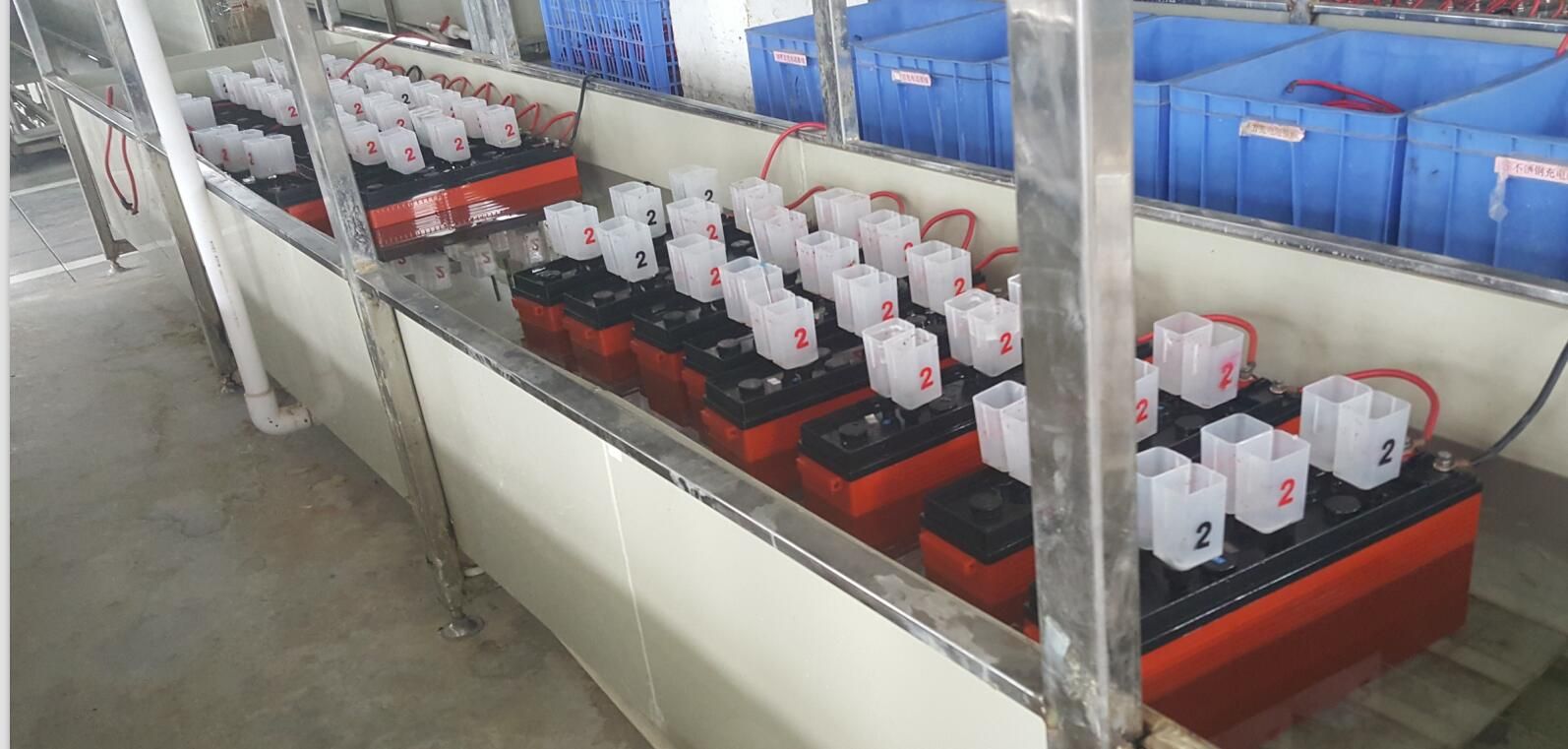

8. CSPOWER 6V 310AH Solar Power Gel Battery for Storage Charging and testing

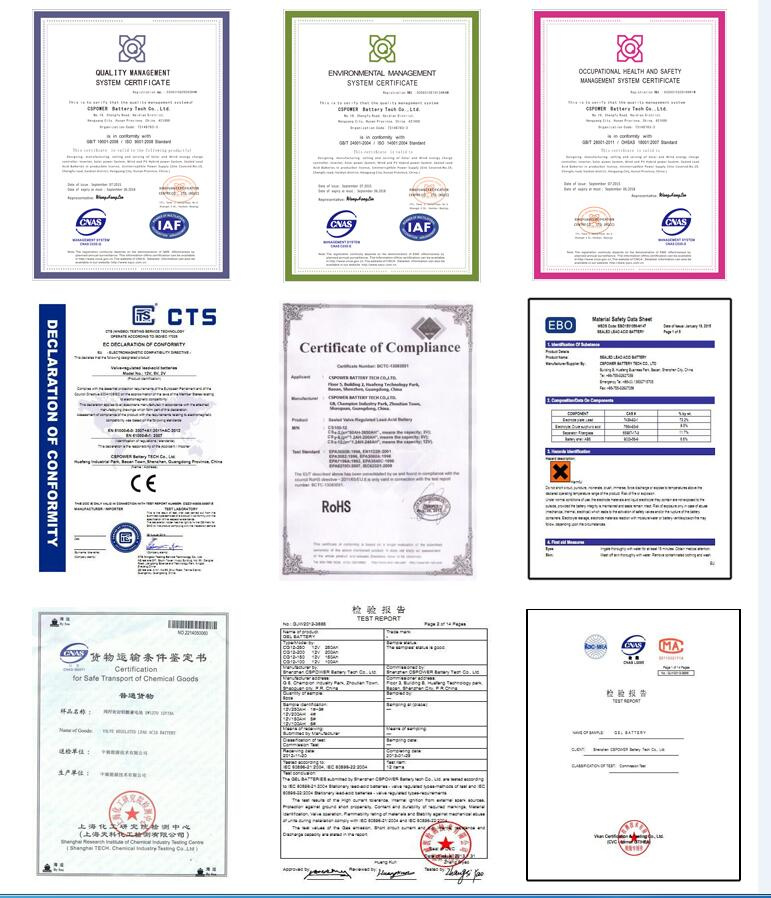

9. CSPOWER Deep cycle Gel Batteries Certificates: CE, IEC, ISO

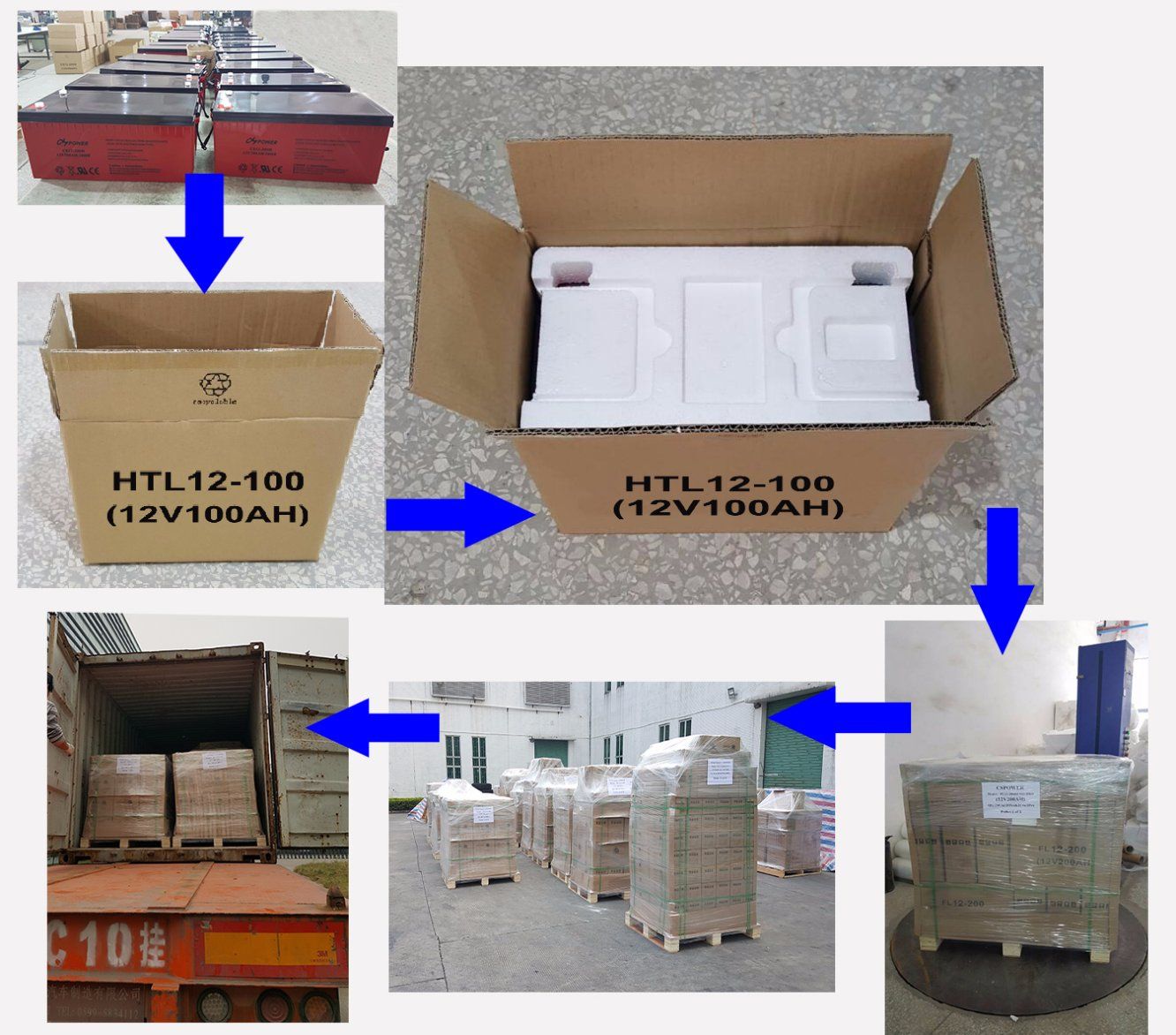

10. CSPOWER 6V 310AH Solar Power Gel Battery for Storage ready to sea shipping
Why Choose CSPOWER? rechargeable battery 1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO14001, products with CE/RoHS/TLC etc approval.3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.4) Competitive price help you to occupy more market share 5) 20000KWH production capacity to guarantee the best deliver time6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.For more information,please kindly visit our website: http://www.csagmbattery.com. Or Contact with our sales directly :Attn: BooieTel: +8613612867133
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
