Rechargeable Gel Battery for Solar Panel 12V150ah, Cg12-150
| Price: |
US $ 90-120/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
CG12-150AH |
| Model: |
Solar Gel Battery 12V150ah |
| Size: |
484*171*241*241mm |
| Weight: |
44kg |
| Warranty: |
3 Years |
| Delivery Days: |
15-20 Days |
| Color: |
Black |
| Capacity: |
120ah |
| Terminal: |
M8 |
| Export Market: |
Global |
| 50% Dod: |
About 1100cycle Times |
| Usage: |
Wind and Solar System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Type: |
Solar Gel Batteries |
| Shape: |
Gel Battery |
Product Description

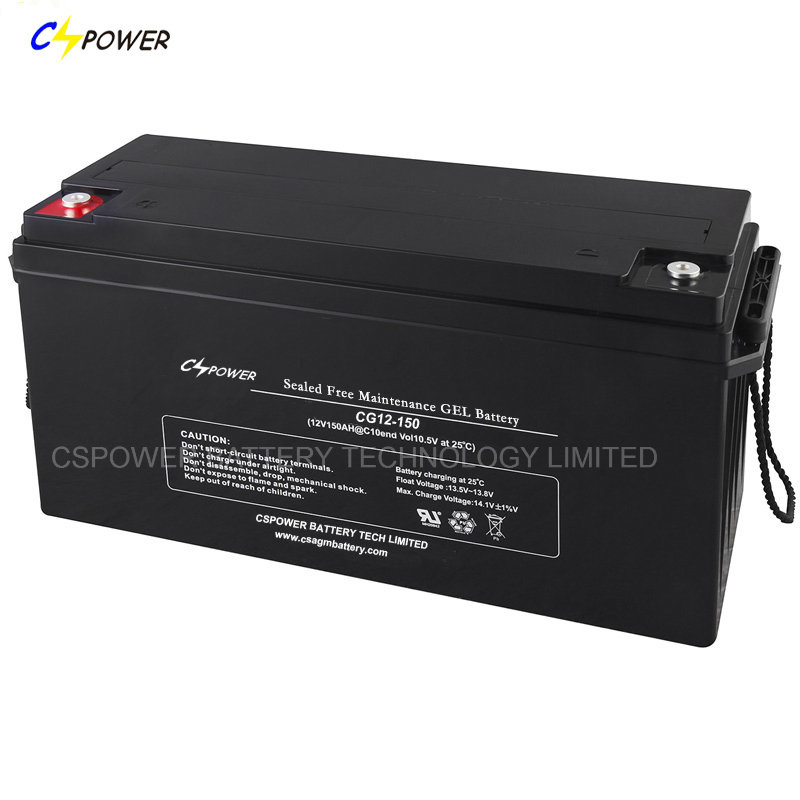

Rechargeable GEL Battery for Solar Panel 12v150Ah, CG12-150
Characteristics of Maintenance Free GEL Battery for Solar Panel/Solar system
CG SERIES VALVE REGULATED SOLAR GEL BATTERYVoltage: 12VCapacity: upto 12V300AhDesigned floating service life: 15~20 years @ 25 °C/77 °F.> Summary for Long life gel batteryCSPOWER standard GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel. Features and benefits for solar gel battery of Maintenance Free GEL Battery for Solar Panel/Solar system 1. This Energy storage battery utilizes gel electrolyte technology. The uniformly distributed gel electrolyte is made by mixing sulfuric acid with silica fume.2. The electrolyte can hold the battery plates securely in an immobile gel.3. Radial grid design offers this power storage device excellent discharge performance.4. Due to 4BS lead paste technology, our deep cycle gel battery provides long lasting service life.5. Employing unique grid alloy, special gel formulation and distinct positive and negative lead paste ratio, the maintenance free battery boasts outstanding deep cycle service performance and over discharge recovery ability.6. Completely manufactured from high purity raw materials, CSPOWER deep cycle gel battery has extremely low self discharge.7. Gas recombination technology ensures excellent seal reaction efficiency, thus delivering no pollution such as acid mist to the environment.8. The gel battery boasts reliable sealing technology which enables security seal performance. Construction of Maintenance Free GEL Battery for Solar Panel/Solar system 1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof. 2) 99.997% pure new lead NEVER use recycle lead.3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing. 4) High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.5) Positive plates: PbCa grids minimize corrosion and prolong life. 6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.7) Vent Valve: Allows the release of the excess gas automatically for safety.8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life. 9) Silicone Nano GEL electrolyte: Import from Germany Evonik famous brand silicone. Charging voltage and settings of Maintenance Free GEL Battery for Solar Panel/Solar system l Constant voltage charging is recommendedl Recommended float charge voltage: 2.27V/cell @20~25°Cl Float voltage temperature compensation: -3mV/°C/cel ll Float voltage range: 2.27 to 2.30 V/cell @ 20~25°Cl Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°Cl Max. charge current allowable : 0.25C Complied standardsl IEC 60896-21/22 l IEC 61427l ISO9001/14001/18001 l Eurobat guide, long lifel BS6290 part 4 l GB/T 22473l CE l IATA and IMDG CSPOWER vrla GEL Battery factory pictures sharing:

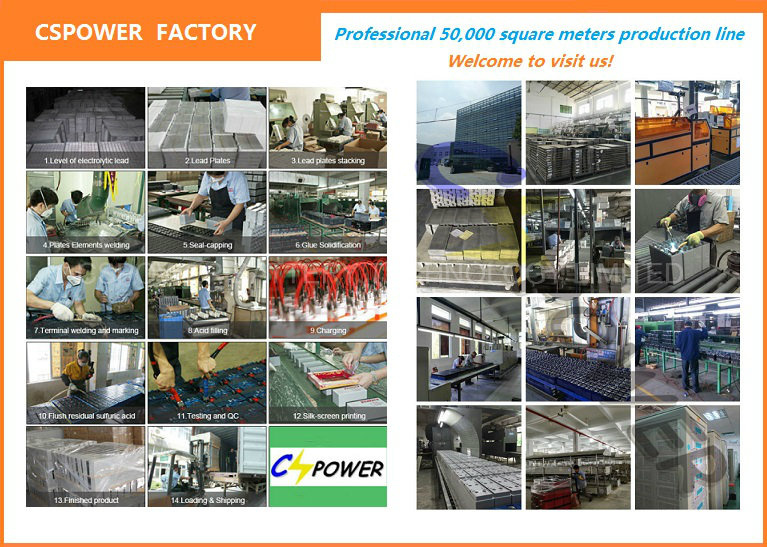

Why Choose CSPOWER? - Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
CSPOWER BATTERY TAGS:1. Solar Battery, lead acid battery, Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
2. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
3. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery More details, welcome to our website for visiting: http://www.csagmbattery.com
Solar GEL Battery 12V Specifications | | | | | mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CG2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
