Rechargeable Lantern Battery, 12V 2.6ah Small Battery

Name: Rechargeable Lantern Battery, 12V 2.6ah Small Battery
Brand: all-electronics-online.com
SKU: 707390235
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR2.6-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	704798mm
Weight:	0.74kg
Color:	Black / Dark Gray
Cell:	6
Separator:	AGM
Plate:	Flat Plate
Sealing:	Glue Sealing
Terminal Type:	Lead
Safety:	Explosion-Proof
The Charging Current Rate:	Less Than 0.3c
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

We produce VRLA/SLA Battery, Industrial Battery, 12V Battery, Rechargeable Battery, Gel Battery, Deep Cycle Battery, sealed lead acid battery and so on.

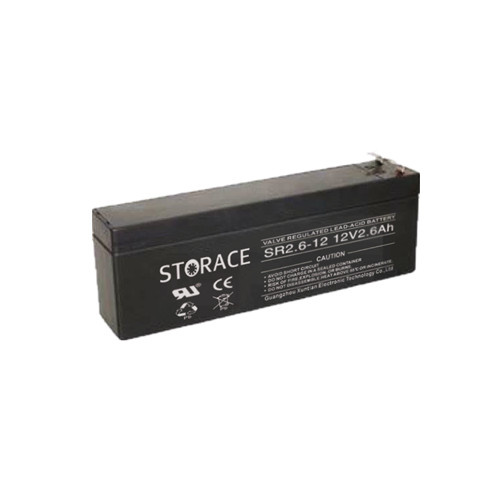

Rechargeable Lantern Battery 12V 2.6ah Small Battery

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

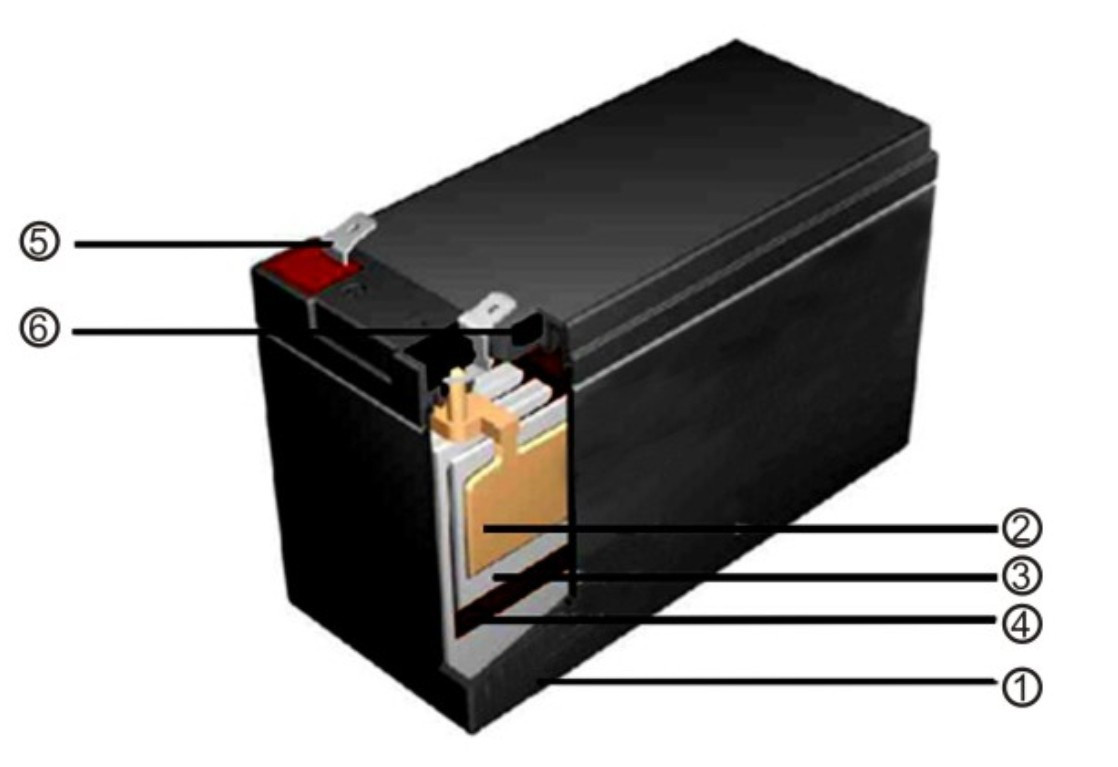

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance.
2. Good dischargeing performance.
3. Good stock-proof performance.
4. Good impact-proof performance.
5. Good resistance to overdischarge.
6. Good resistance to overcharge.
7. Good resistance to high current.

Data Sheet

Capacity 77° F(25º C)	20 hours rate(0.13A 10.5V)	2.6Ah
	10 hours rate(0.25A 10.5V)	2.5Ah
	5 hours rate(0.48A 10.5V)	2.4Ah
	1 hour rate(1.95A 9.6V)	1.95Ah
Internal Resistance	Full charged battery 77° F(25º C): 35mΩ

Capacity affected by Temperature (20 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 39A(5S)
Charge (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.5 to 14.9V/77° F/(25º C)
	Max Current: 0.65A

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
