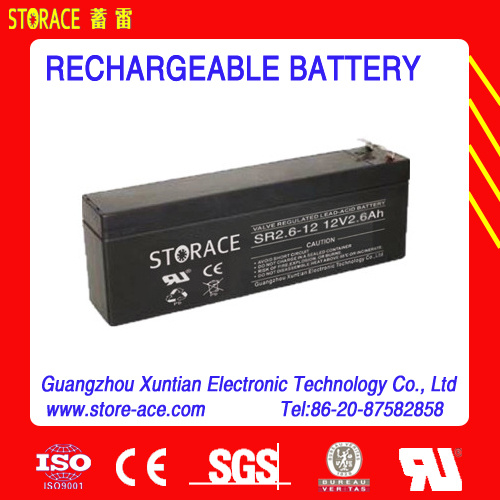

Name: Rechargeable Lantern Battery 12V Small Battery
Brand: all-electronics-online.com
SKU: 701293425
Availability: InStock
Rating: 4.9 (22 reviews)

Price:	US $ 3-7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR2.6-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	704798mm
Weight:	0.74kg
Color:	Black
Cell:	6
Separator:	AGM
Terminal Type:	Lead
Battery Case:	ABS
Sealing:	Glue Sealing
Safety:	Explosion-Proof
Maintenance:	Free
Type:	Lead-Acid Batteries
Rechargeable:	Chargeable
Discharge Rate:	Low Discharge Rate
Nominal Voltage:	12V
Usage:	Lighting
Shape:	Rectangle

Product Description

We produce VRLA/SLA Battery, Industrial Battery, 12V Battery, Rechargeable Battery, Gel Battery, Deep Cycle Battery, sealed lead acid battery and so on.

Rechargeable Lantern Battery 12v Small Battery
(SR2.6-12)

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

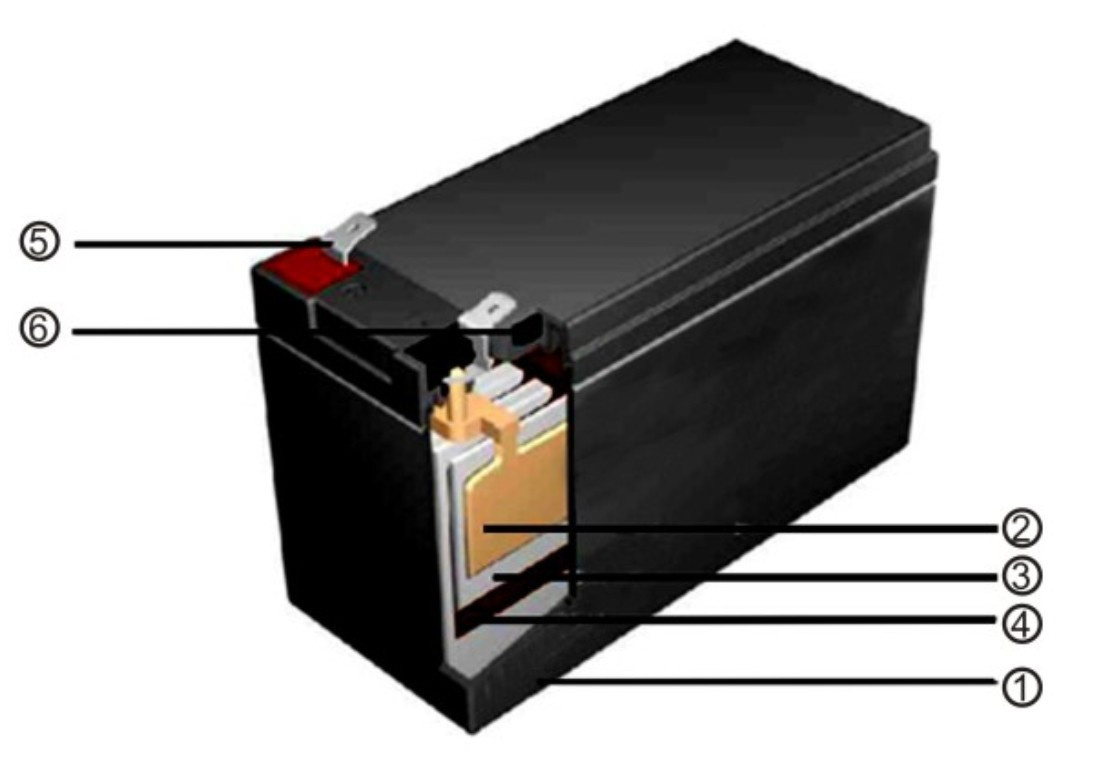

Battery Structure

1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance.
2. Good dischargeing performance.
3. Good stock-proof performance.
4. Good impact-proof performance.
5. Good resistance to overdischarge.
6. Good resistance to overcharge.
7. Good resistance to high current.

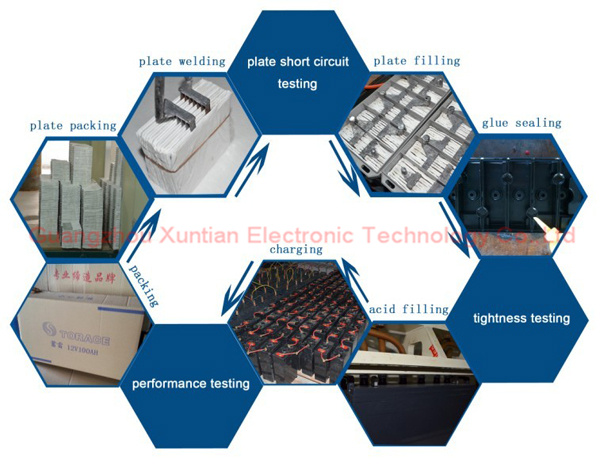

Production steps

Capacity 77° F(25º C)	20 hours rate(0.13A 10.5V)	2.6Ah
	10 hours rate(0.25A 10.5V)	2.5Ah
	5 hours rate(0.48A 10.5V)	2.4Ah
	1 hour rate(1.95A 9.6V)	1.95Ah
Internal Resistance	Full charged battery 77° F(25º C): 35mΩ

Capacity affected by Temperature (20 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 39A(5S)
Charge (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.5 to 14.9V/77° F/(25º C)
	Max Current: 0.65A
