| Prod Model: |
container car gps tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
300g |
| Battery: |
6000 mAh |
| Standby Time: |
60 Days |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| OEM Or Not: |
Yes |
| Certificate: |
CE FCC RoHS |
| Warranty Time: |
1 Year |
| Anti Theft Car GPS Tracker: |
Magnetic Hidden Tracker Engine Shut off |
| Compact Design: |
Hide Internal & Internal Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Get Position, GSM Transmit |
| Port Number: |
20 |
| Model: |
104 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

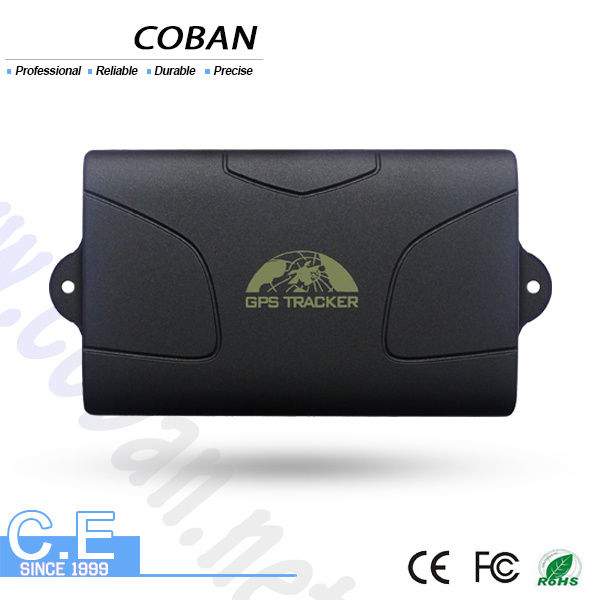

rechargeable large battery rugged GPS tracking system with live positionThis product can locate accurately and be used in guarding Vehicle against theft, courier tracking and monitor.
Working Based on existing GSM/GPRS (850/900/1800/1900MHz) network and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA.
Advantages of products:1. Powerful magnet to absorb to the vehicle.
2. Multiple tracking ways, Provide free monitor software with the global map, real-time track by your computer or PDA cell phone or Google earth.
3. Back up battery standby 60 days
4. Internal GPS and GSM antenna
5.
Quiver sensor alarm
6. Get detailed address from the vehicle location by SMS or check on server/PC
7. Location based service function(LBS), get detailed position via GSM network when the tracker in the place where is no GPS signal. with direction for real time track on Google map.
8. Monitor / listen in function
9. Dimension: 94mm*60mm*38mm
10. Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
11. Can support platform: When using platform, it can track targets in real time on electronic map, or inquire the target's position by mobile phone.
12. Location Based Service, if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
13. Tracking function by timing and frequency
14. Authorized number added and deleted function
15. Movement alert
16. Over speed alarm
17. Low battery and SOS alarm function
18. Support hidden alarm and monitor function
19. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
20. Movement alert
21. Over speed alarm
22. Low battery alarm function
23. SOS Alarm
24.
Remote Engine-stop and Resume with 12V relay (optional for 24V relay)25. Cable connect to car or vehicle battery

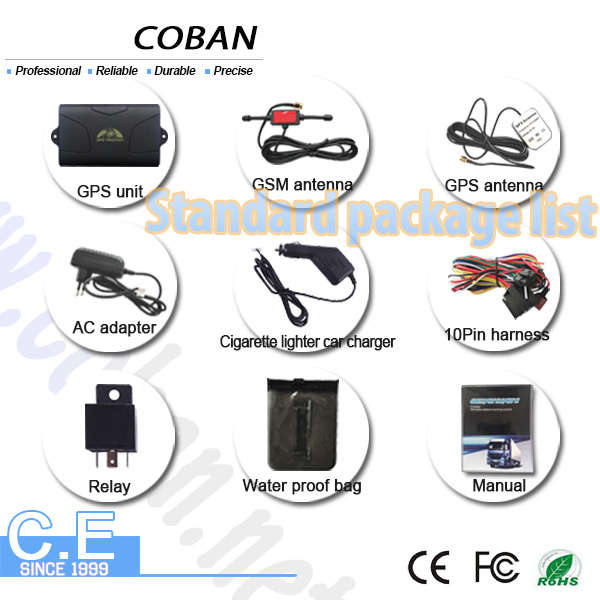

Standard packing:One tracker,
1 wall charger,
1 cigarette lighter charger,
1 user manual,
1 external GPS antenna,
1 external GSM antenna,
one 12V relay,
1 cable,
one waterproof bag
specifications| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
