| Prod Model: |
TL62200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
305(L)*168(W)222(H)Mm |
| Weight: |
29.5kg |
| Color: |
Black/ Grey/ White |
| Terminal: |
F12 |
| Container Material: |
ABS |
| Cycle Use: |
7.2~7.5V |
| Standby Use: |
6.7~6.9V |
| Designed Life: |
8-10 Years |
| Warranty: |
3year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Telecommunication Equipment Medical Equipment |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

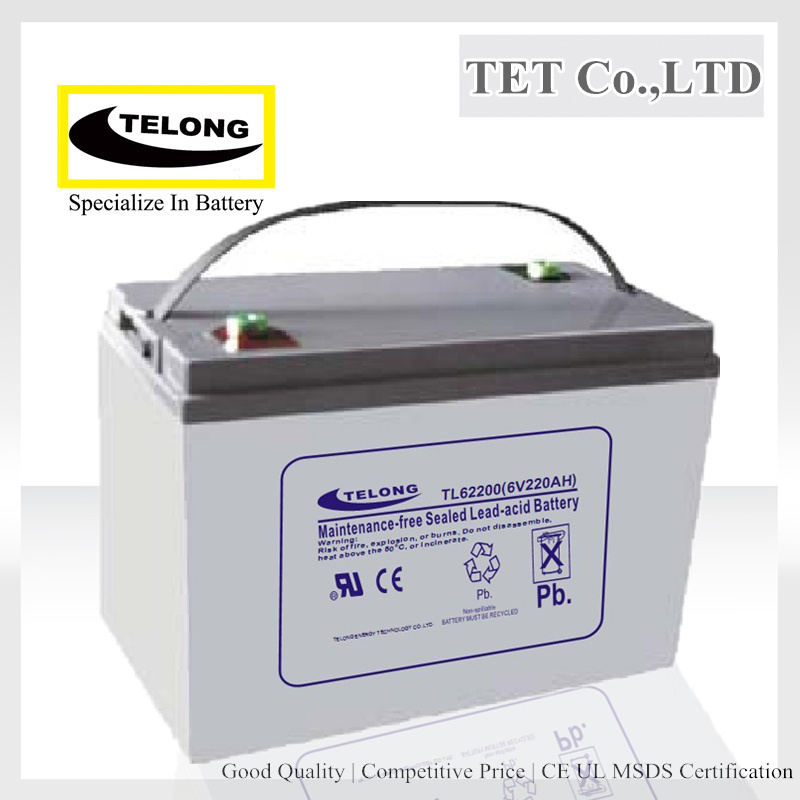

TELONG TL62200 6V 220ah Solar lead acid battery is a maintenance-free valve regulated battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. And the battery is widely used in solar system, Communication Equipment, Medical Equipment and so on.
SPECIFICATION
| Nominal Voltage | 6V |
| Rated capacity (10 hour rate) | 220 ah |
| Dimension | Length | 305mm (5.89inches) |
| Width | 168mm (1.95 inches) |
| Height | 222mm (3.71inches) |
| Weight Approx | 29.5Kg(3.75Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-dom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS
Capacity
25'C (77'C) | 10 hour rate(22A ) | 220AH |
| 5hour rate(30.7A ) | 187AH |
| 1 hour rate(143A ) | 143AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 1.4milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 66 A |
| (Cycle use) Voltage 7.2-7.5V |
| (Float use) Voltage 6.7-6.9V |
APPLICATIONS
Solar System / Control equipments
Emergency Lighting systems
Medical equipments
Communication Equipment
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and stand-by power for computers
OTHER INFORMATION
| 1 | Logo: silk printing |
| 2 | Packaging: in Carton Box Packing in Wooden Pallet |
| 3 | Payment terms: T/T(with 30% deposit); L/C at sight |
| 4 | Date of delivery: 15-35 days after receipt of the deposit |
| 5 | Loading port: Shenzhen (China) |
| 6 | Sample charge: FREE
|
