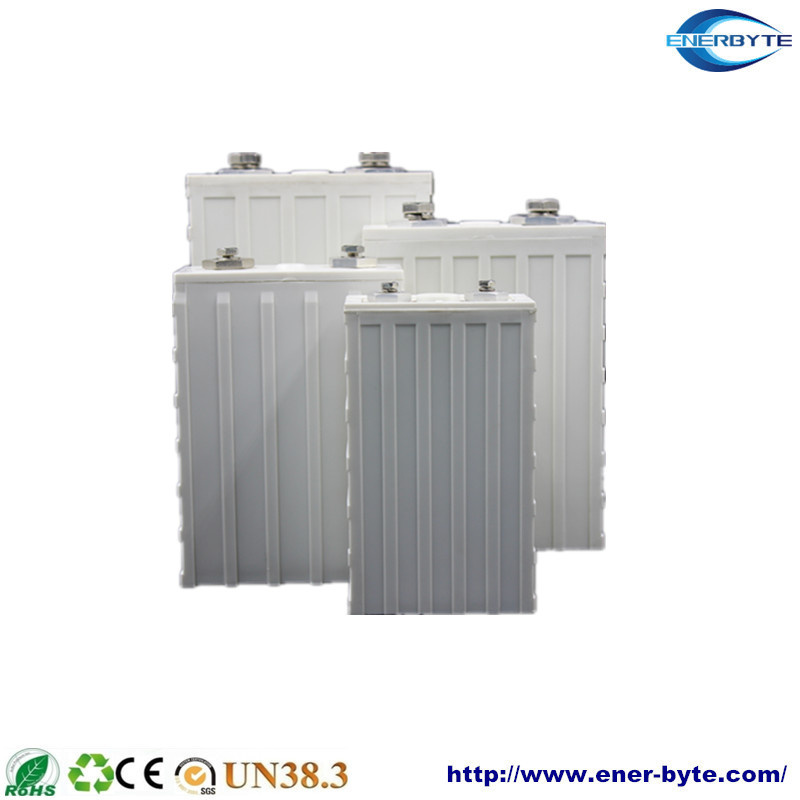

Rechargeable LiFePO4 Prismatic Battery Cell 3.2V 100ah

Name: Rechargeable LiFePO4 Prismatic Battery Cell 3.2V 100ah
Brand: all-electronics-online.com
SKU: 724256692
Availability: InStock
Rating: 4.9 (136 reviews)

Price:	US $ 112-126/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3.2v 100Ah
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	E-Bike, E-Motorbike
Electrolyte:	Electric Tool/Electric Power Tool

Product Description

Tianjin Enerbyte Electronics Co.,Ltd is a customer oriented company for manufacturing Lithium battery cells and also battery packs. With 8 years of manufacturing experience and a team of development and technical engineers, we have been exporting Lithium Batteries to 80 countries.
Our Lithium batteries are consisted of Lithium ion batteries, LiFePO4 batteries, 18650 and 26650 and also Prismatic battery cells with highest up to 200Ah single cell.
We can handle worldwide battery transportation and customs clearance and provide full services for logistics and transportation.
To achieve customers' needs is always our goal!
We are obliged and honored to work with your esteemed company and we will provide our best services for your battery needs!

No.	Item		unit	Parameters	Remark
1	Nominal Capacity		Ah	100	Capacity according to standard discharge after standard charging.
2	Nominal Voltage		V	3.2	Average Voltage according to standard discharge, After standard charge.
3	Charge Type		CC/CV	CC/CV	special chargers
4	Charge Cut-off Voltage		V	3.85	/
5	Discharge Cut-off Voltage		V	2.0	According to the parameters of the customers' control
6	Nominal Charge current		A	33.3	CC
7	Normal working current		A	≤100	CC
8	Maximum continuous discharge current		A	300	CC
9	Pulse discharge current		A	500	10Seconds
110	Cycle life		Times	3000	The cycle life can reach 2000 times with 70% DOD at 1C recommended charge and discharge under 25ºC temperature
11	Over current protection	Protective current	A	/	According to the parameters of the customers' control
		Delay	S	/	According to the parameters of the customers' control
		Unchained conditions	/	/	According to the parameters of the customers' control
12	Short-circuit protection	Protective conditions	/	/	According to the parameters of the customers' control
		Delay	S	/	According to the parameters of the customers' control
		Unchained conditions	/	/	According to the parameters of the customers' Control
13	Weight		g	3000±100	Net weight of the battery
14	Internal Resistance		mΩ	<3	Unit cell,AC Inner Resistance
15	Dimension(L×W×H)		mm	*69150220*
16	Working temperature	Charge	ºC	0~45	/
16	Working temperature	Discharge	ºC	-20~60	/
17	Storage temperature	One month	ºC	-20~60	/
		Three months	ºC	-20~45	/
		One year	ºC	-20~25	/
	Atmospheric pressure		KPa	86~106	/
	Relative humidity		RH	25%~80%	/

Curve

Application

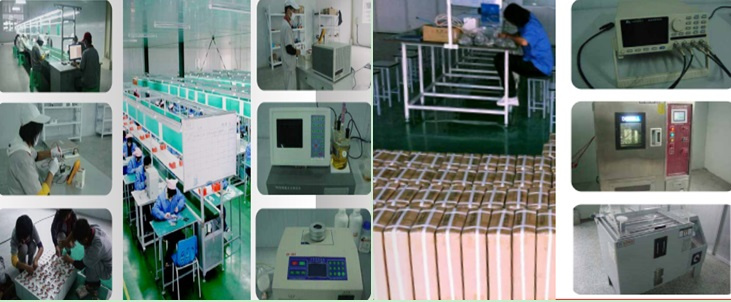

Factory

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
