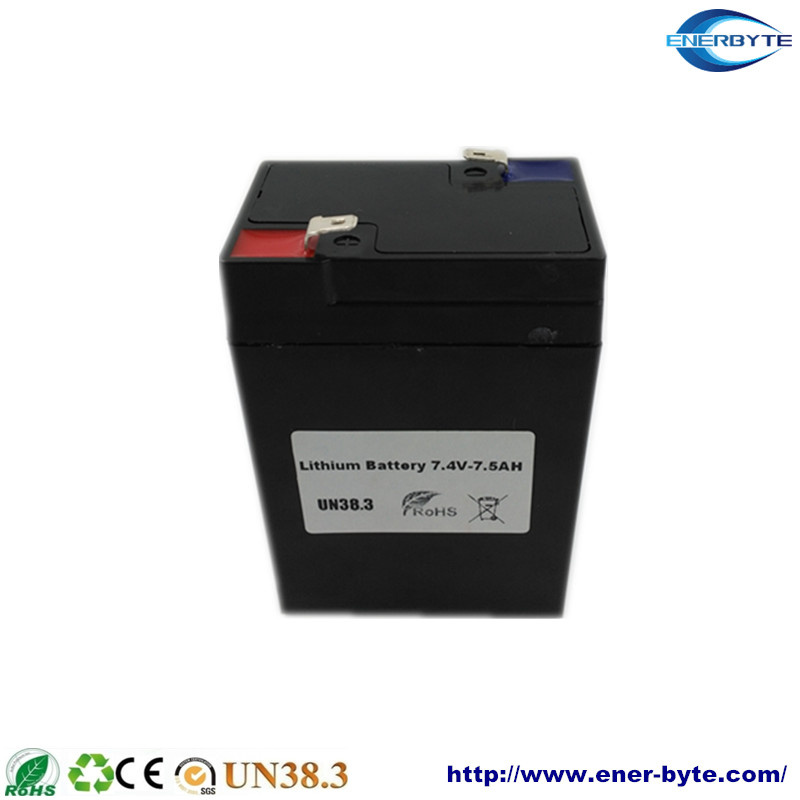

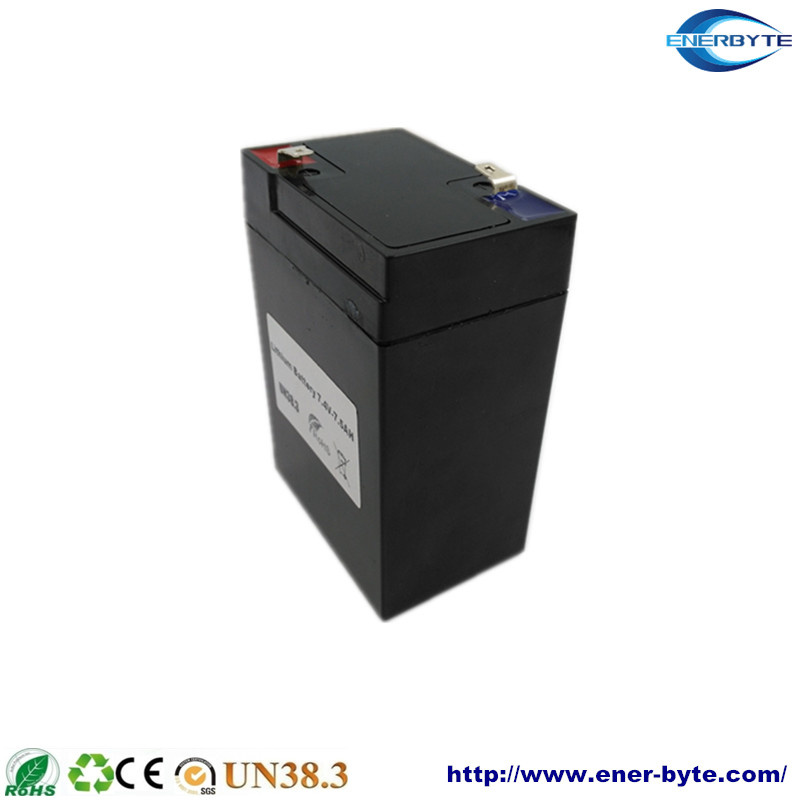

Rechargeable Lithium (NCM) Battery Pack 7.4V 7.5ah

Name: Rechargeable Lithium (NCM) Battery Pack 7.4V 7.5ah
Brand: all-electronics-online.com
SKU: 802544415
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 13.6-15/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NCM-7.4V-7.5Ah
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Battery Packs
Electrolyte:	Electrolyte

Product Description

Lithium Ion Battery cells and packs for Solar & UPS backup, power bank, E-bike, E-motorbike, E-golf car, E-wheelchair and E-bus, etc.

To realize mutiple power battery with different voltage and capacity ,we have new battery cells with big capacity and long lifespan and goodperfomance, which could build packs in series and parrallel.

Sealed Lithium Battery pack 7.4V 7.5Ah
This battery pack is best for replacement of sealed lead acid batteries. Best applications are for electric vehicles and energy storage applications. Custom made battery packs are available.

Sealed Lithium Battery Pack 7.4V 7.5Ah

Battery Pack Characteristics
Model		NCM-7.4V-7.5Ah
Capacity(0.2C₅A)		7.5Ah
Nominal Voltage		7.4V
Max. Charge Voltage		8.4V
Discharge Cut-off Voltage		5.5V (recommended)
Working Voltage Scope		5.5V~8.4V
Max. Charge Current		3.75A
Continuous Discharge current		7.5A
Max.Discharge current		22.5A 3Sec
PCM control Discharge current		7.5A (continuous)
Weight (Approx.)		0.37Kgs
Battery Dimensions		*1007045mm(HXWXL)*
Impedance (Max, at 1000Hz)		Single Cell≤25 mΩ
Cycle Life(80DOD%)		>1500 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	1.875A×4hrs
	Quick	3.75A×2hrs
Operating Temperature	Charge	0ºC~45ºC;32^oF~113^oF
	Discharge	-20ºC~60ºC;-4^oF~149^oF

Battery Application
Lithium battery packs can used for Solar & UPS backup, power bank, E-bike, E-motorbike, E-golf car, E-wheelchair and E-bus, etc.

Tianjin Enerbyte Electronics Co., Ltd. is a professional manufacturer of Lithium Battery, , Lithium Ion Battery, lithium Iron Phosphate batteries in China. We are located in the beautiful North largest seaport city of Tianjin.

It was established in 2015 and certificated by ISO9001, CE, and RoHS. Enerbyte will bring enjoyable and customer based power battery cells and pack solutions.

Now we can supply High energy Lithium Ion batteries and Lithium iron phosphate batteries for electric vehicels, energy storage and various portable power banks.

We are striving to provide customer satisfactory battery packs and battery solutions, the batteries are widely used in electronics, electric toys, electric vehicles, solar energy storage and elcectric tools and so on.

Pursuing the highest quality and professional services with best solutions for customers are always objectives of Tianjin Enerbyte Electronics Co., Ltd.

We welcome overseas customers to come and visit our factory!
