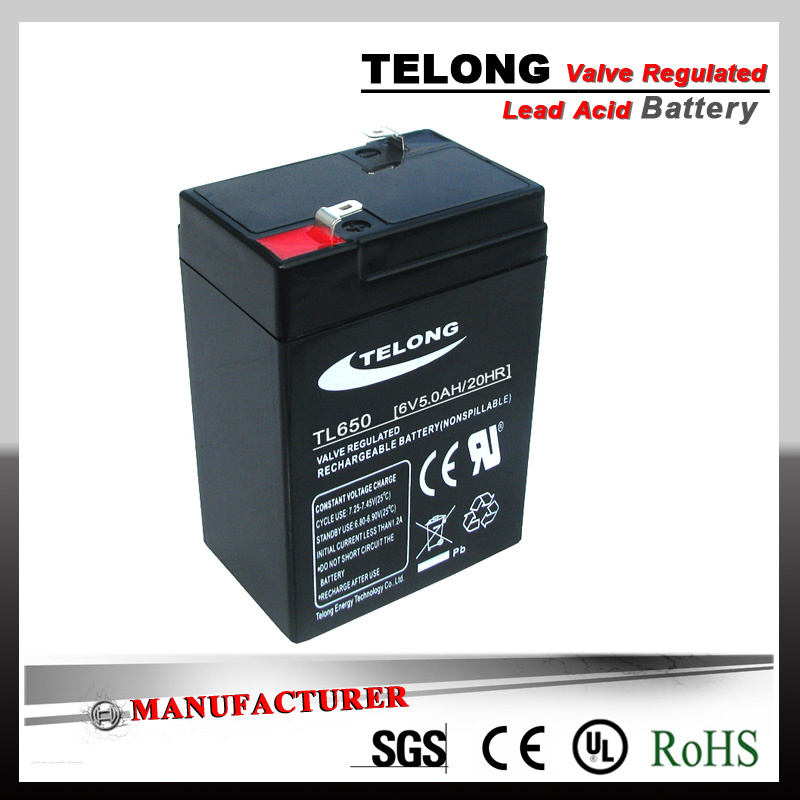

Rechargeable Power Battery (6V5ah)
| Price: |
US $ 2.7-3.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
5.0ah |
| Hour Rate: |
20 |
| Size: |
70(L)*47(W)*100(H)Mm |
| Weight: |
0.82 |
| Color: |
Black / Grey or Other |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
7.2-7.5V |
| Charge Voltage (Float): |
6.7-6.9V |
| Designed Life: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electronic Scale,Solar Home System, Alarm System |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
TELONG TL640 (6V 4ah) AGM lead acid battery utilizing the latest advance design Oxygen Recombination
Technology, It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA.
And the Battery is widely used in emergency lighting, alarm system, ups, electric toy and so on.
QUALITY ASSURANCE OF 12V17AH Sealed Lead Acid Battery1).Warranty period of one years: the date of the battery from the factory within 12 months, where the Company or the authority of the professional testing organization determine the quality of failure are battery manufacturers, at designatedlocations to give a free replacement battery with the specifications of the new; replace the battery when I While failureto recover the battery.2).The identification of large current discharge: new arrival in the battery, 25 ± 1 ºC temperature, fully charged battery to the model of large current 3 times the rated discharge capacity 7 min, the battery voltage drops below 1.6V / cell,determined to be unqualified.3).Determine the capacity of the exception: the new battery installed in the 25 ± 2 ºC after fully charged capacity test, in three cycles, the 20hour rate capacity can not reach the rated capacity of 90%, After five cycles, 20 hours rate capacity can not meet 100% of the rated capacity, determined to be ineligible4).Standard: The Company entered into force in a clear customer contract requirements, contract requirements should be the standard;if the customer no special requirements, refer to China national machinery Industrial Standard 5).Normal use and maintenance: by TELONG "Lead Acid battery Manual " Operation and Maintenance6).Quality: The company "technology first, the tree class enterprise; continuous improvement, so the battery quality; customer first, creating international brand " of quality in strict accordance with ISO9001: 2000 quality system standards requirements, passion for customer service.
CHARACTERISTICCapacity
(at different hour rate)
25'C (77'C) | 20 hour rate(0.06A ) | 4.0AH |
| 10 hour rate(0.11A ) | 3.8AH |
| 5hour rate(0.21A ) | 3.5AH |
| 1 hour rate(0.78A ) | 2.5AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 35milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
Charge
(Constant Voltage) | Initial Charging Current less than 1.0A |
| Voltage 7.2~7.5 V |
| Voltage 6.7~6.9 V |
APPLICATIONSPower Tool / Electric Toy / Electric Scale
Control Equipment / Medical Equipment
Alarm System / Emergency Lighting System
Uniterruptible Power Supplies (UPS) and Other DC Power Supplies.
OTHER INFORMATION| 1 | Logo: Yours or Mine (silk printing)
Logo Charge: Free |
| 2 | Sample Charge: Free
Sample Lead time: 1-3 day after down payment received. |
| 3 | Packaging: in Carton Box Packing in Wooden Pallet
Pcs/ctn: 20pcs/ctn
Ctn size: 381*220*130mm
GW/NW: 16.55kg/16.4kg |
| 4 | Payment terms: T/T(with 30% deposit, the balance T/T before shipment); L/C at sight |
| 5 | Date of delivery: 20-30 days after receipt of the deposit |
| 6 | Loading port: Shenzhen (China) |
| Model | Normal
Voltage
(V) | Normanl
Capacity
(AH) | Dimension
(L*W*Hmm) | Weight
(kg) |
| TL612 | 6 | 1.2 | 98*25*52 | 0.30 |
| TL622 | 6 | 2.2 | 66*33*98 | 0.50 |
| TL628 | 6 | 2.8 | 66*33*98 | 0.55 |
| TL632 | 6 | 3.2 | 134*34*60 | 0.62 |
| TL632 | 6 | 3.2 | 134*34*60 | 0.65 |
| TL632 | 6 | 3.2 | 134*34*60 | 0.68 |
| TL630 | 6 | 3.0 | 70*47*100 | 0.59 |
| TL640 | 6 | 4.0 | 74*47*100 | 0.67 |
| TL645 | 6 | 4.5 | 70*47*100 | 0.73 |
| TL645 | 6 | 4.5 | 70*47*100 | 0.70 |
| TL645 | 6 | 5.0 | 70*47*100 | 0.82 |
| TL655 | 6 | 5.5 | 74*47*100 | 0.76 |
| TL660 | 6 | 6.0 | 74*47*100 | 0.85 |
| TL670 | 6 | 7.0 | 151*34*95 | 1.05 |
| TL6100 | 6 | 10 | 151*50*95 | 1.55 |
