Rechargeable Prismatic 3.2V 20ah Lithium Iron Phosphate Battery

Name: Rechargeable Prismatic 3.2V 20ah Lithium Iron Phosphate Battery
Brand: all-electronics-online.com
SKU: 815567485
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 18.8-28.6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AS-3.2V-20Ah
Application:	Electric Car/Solar Energy Storage
Cycle Life:	More Than 2000 Cycles
Certificate:	ISO9001 etc
Weight:	600g
Warranty:	12months
Rate:	0.1c-2c
Accessories:	Conducts/Nuts
Samples:	Yes
Case:	Aluminum/ABS
Type:	Lithium-Ion Batteries
Usage:	Electric Bicycle
Discharge Rate:	Medium Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.2V

Product Description

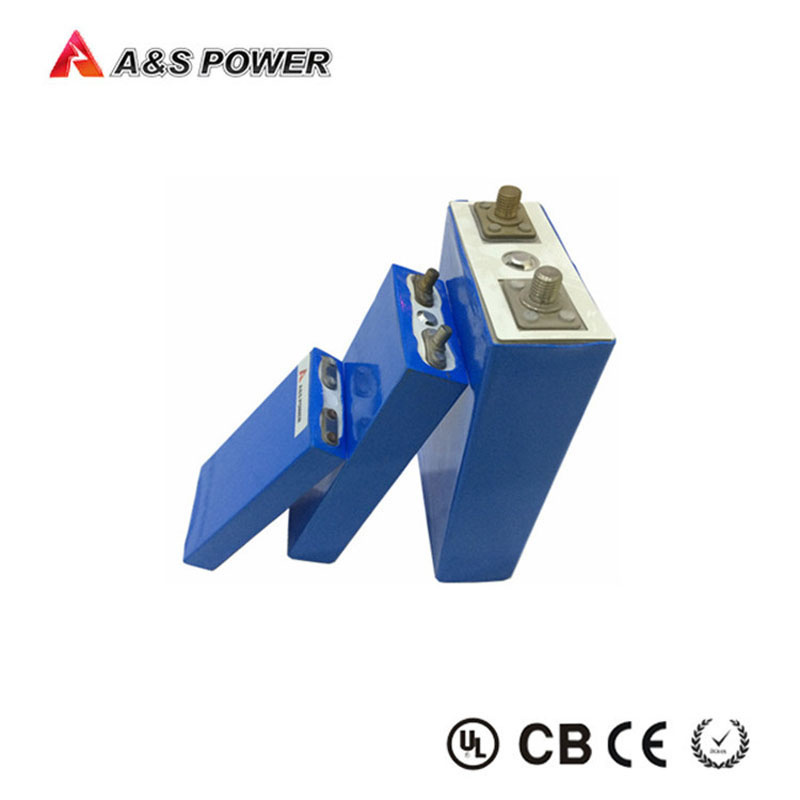

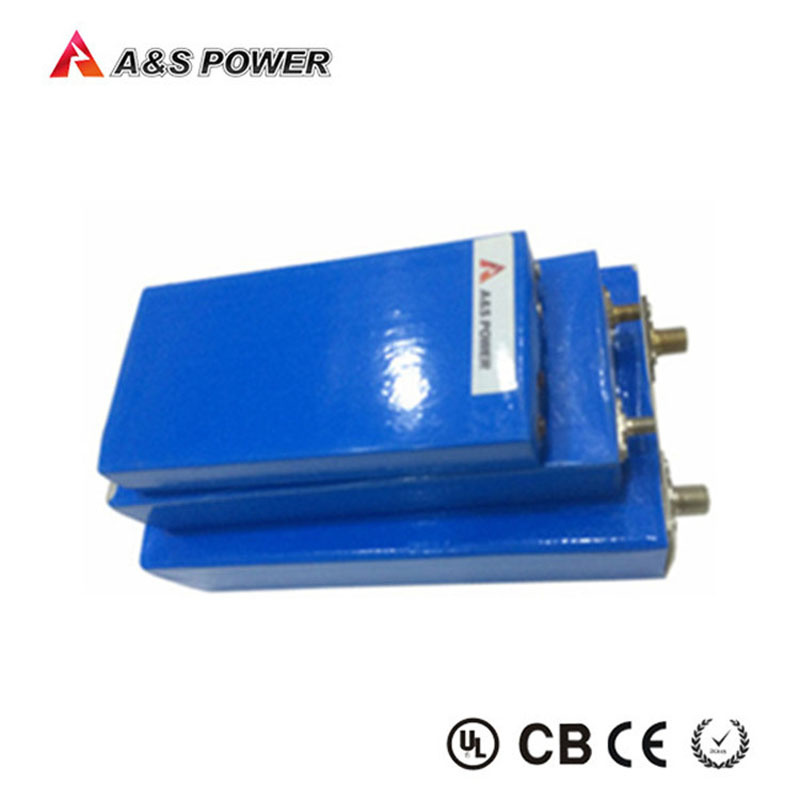

Rechargeable Prismatic 3.2V 20ah Lithium Iron Phosphate Battery

Item		Rating	Note
3.1 Capacity	Typical	20Ah	Discharge: 0.2CmA
3.1 Capacity	Minimum	19.8Ah	Discharge: 0.2CmA
3.2 Nominal Voltage		Average 3.2V
3.3 AC Impedance Resistance≤3mΩ		≤8mΩ
3.4 Discharge Cut-off Voltage		2.5V
3.5 Charge Current		4A	Standard Charge
3.6 Charge Voltage		3.65V
3.7 Charge time		Approx 6h	Charge: 0.2CmA
3.8 Max. Charge Current		20A
3.9 Continuous Discharge Current		20A
3.10. Max discharge current		40A
3.11 Weight		Approx 600g
3.12 Operating Temperature	Charge	0~+45ºC
3.12 Operating Temperature	Discharge	-20~60ºC
3.13 Storage Temperature	less than1 month	-20~45ºC	Recommended storage temperature: 20ºC,at the shipment state
3.13 Storage Temperature	less than 6 months	-20~25ºC	Recommended storage temperature: 20ºC,at the shipment state

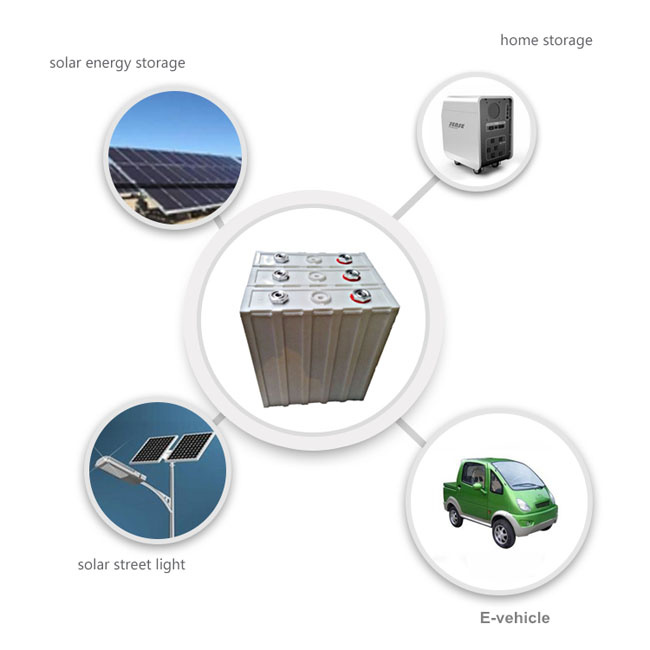

Application

Advantage

1. Environmental friendly
2. High density of energy
3. Light weight
4. Low self-discharge
5. Low internal resistance
6.Long cycle life, chargeable up to 2000 times
7. No memory effect
8.Doesn't contain Mercury, No fire, No explosion, No leakage

FAQ

1. Q:Where can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: Honestly, it depends on your order quantity and the season you place the order. We suggested that you start inquiry to months before the date you would like to get the products at your country.

4. Q: What is your terms of payment?

A: We accept T/T and L/C.

Shenzhen A&S Power Technology Co., Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in LiFePO4 battery, lithium polymer battery and Li-ion Battery pack. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers, consumer products, emergency light, GPS, digital player, solar & wind energy storage, electronic auto and E-bus.

A&S Power has well presence in international fairs each year, such as CEBIT, HK Electronic Fair. We strictly implement the international management standards and have established a complete quality assurance system. So it's no wonder that our products got CE, UL, IEC62133, RoHS certification. We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia. As responsibility and experienced manufacturer, A&S Power is officially recognized by Philips, Mitel. We use "People oriented, Quality first, Keeping improving" as our mission statement, which makes us improve quality, reduce cost and enhance services constantly. We pay more attention to the market change, client needs, safety & environmental protection and take the responsibility of the society. A&S Power dedicates to creating the life stage of employees and supplying lithium batteries welcomed by customers in the world. With passion and faithfulness, we dedicated to establish win-win business and striding forward to create a bright future for your esteemed company.
