| Type: |
Lithium-Polymer Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium Ion |
| Usage: |
EV |
Product Description

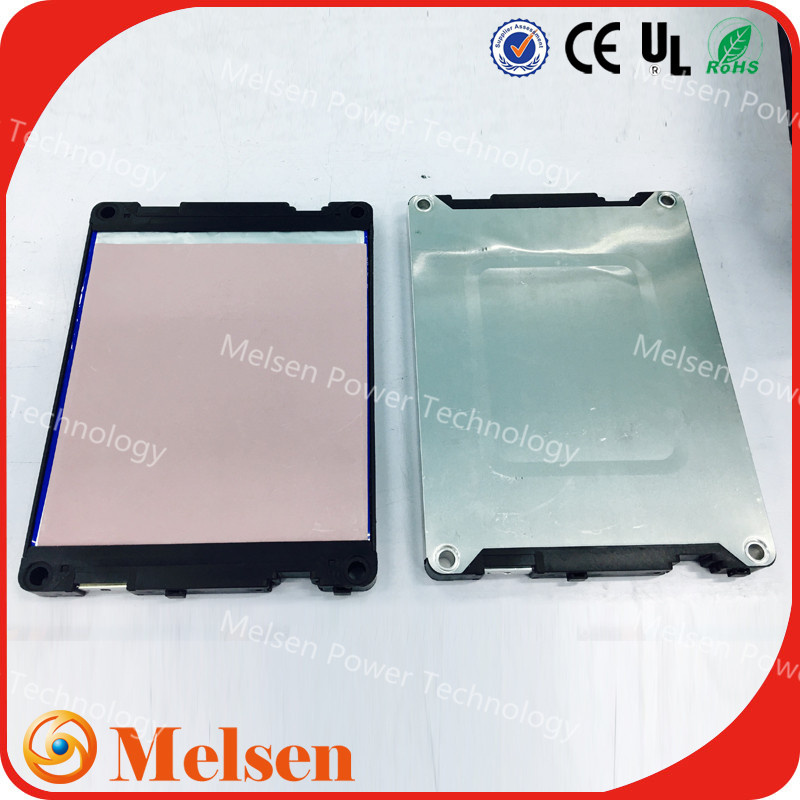

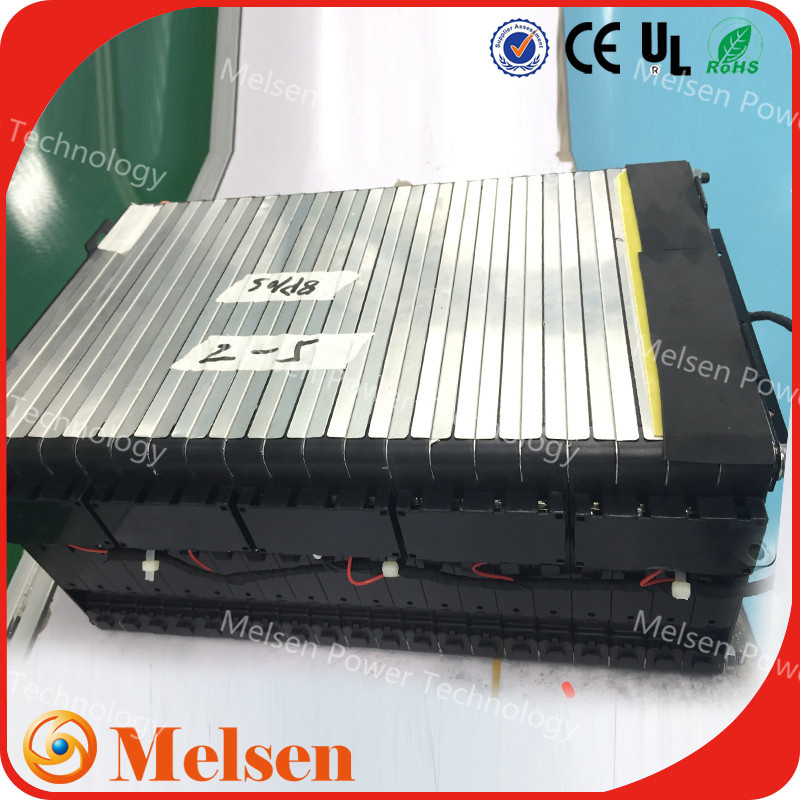

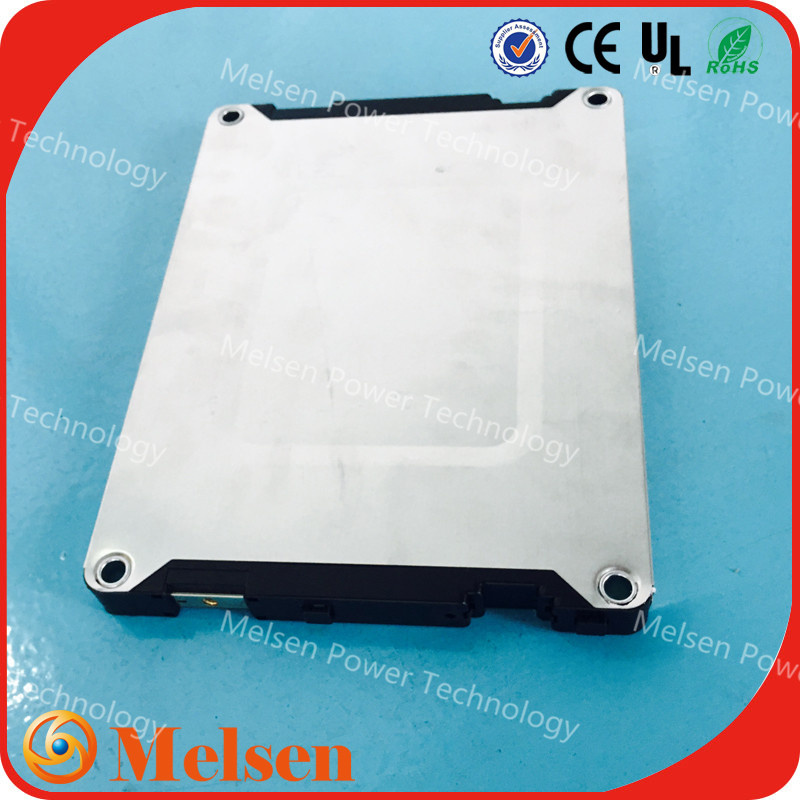

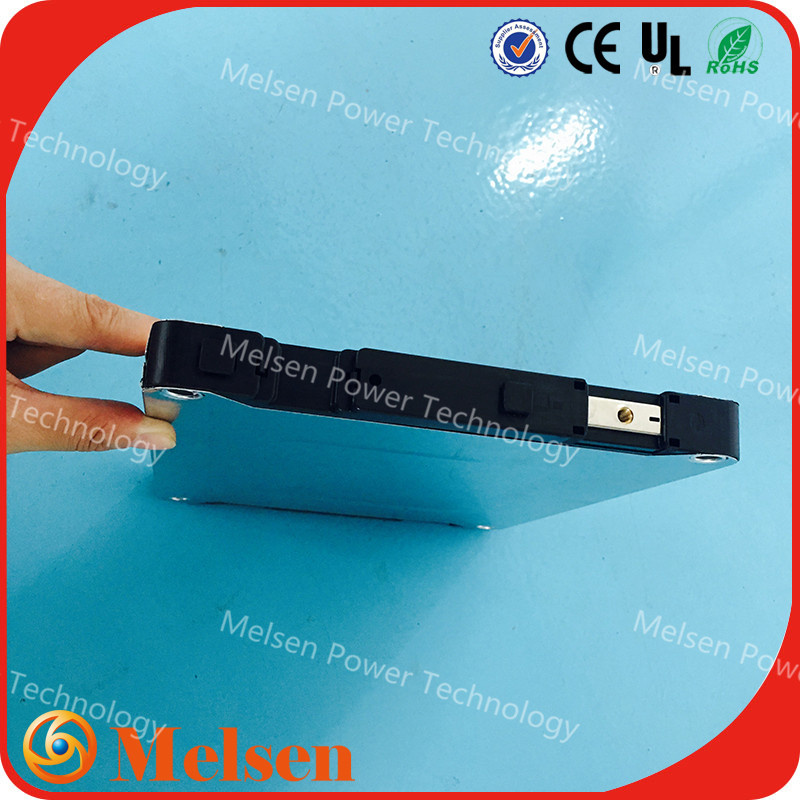

Rechargeable soft packing lithium car battery cell/module/packPicture of battery module 3.6v 80ah | Items | specification | |
Cell information | Cell No. | N43188236-20Ah | |
Cell type | LiNiCoMnO2, pouch battery cell |
Cell nonimal capacity | 20Ah |
Cell nonimal voltage | 3.6V |
Cell weight | about 0.395kg |
Module information | Module No. | MK-N02-0104-01 |
Module nonimal capacity | 80Ah |
Module nonimal voltage | 3.6V |
Module weight | about 1.94kg |
Module dimension(H*W*T) | 276*204*21(mm) |
Discharge current | standard:0.5-1C; max:3C |
Charge current | standard:0.33-0.5C ; max:1C |
4 mounting holes | Φ9(mm) |
Internal impedance | <0.5mΩ |
Battery operating temperature | -20ºC~65ºC |
Application: golf cart, electric bus, electric boat, UPS, cleaning car
Safety Performance
Item |
Test name |
Result |
1 |
Over charge |
No fire,no explosion |
2 |
Over discharge |
No fire,no explosion |
3 |
Short Circuit |
No fire,no explosion |
4 |
Drop |
No fire,no explosion,no leakage |
5 |
Hot oven |
No fire,no explosion |
6 |
Crush |
No fire,no explosion |
7 |
Needle puncture |
No fire,no explosion |
Battery quality control for after-sale
All of Melsen battery cells in a pack are with very high consistency.In a pack, each cell has its ownsole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. Melsen has a strong system working for this.
About Melsen
Melsen power,the world motive power.
Melsen Power Technology Co,Ltd. is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system.Those products are widely used in EV, HEV, UPS, solar and wind system and remote control products.
Melsen Power has more than 800 staffs,including 20 advanced managing people, more than 40 development and research engineers.It has building area of 120,000 square meters and 3 factory bases ,those are,Ningxiang base ,Changsha base and Shengyang base.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality,we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization.So, lets join together to promote the development of renewable energy and friendly
