Rechargeable UPS Lead Acid Battery 12V12ah

Prod Model:	6FM12(12V12AH/20Hr)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black
Terminal:	F2
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

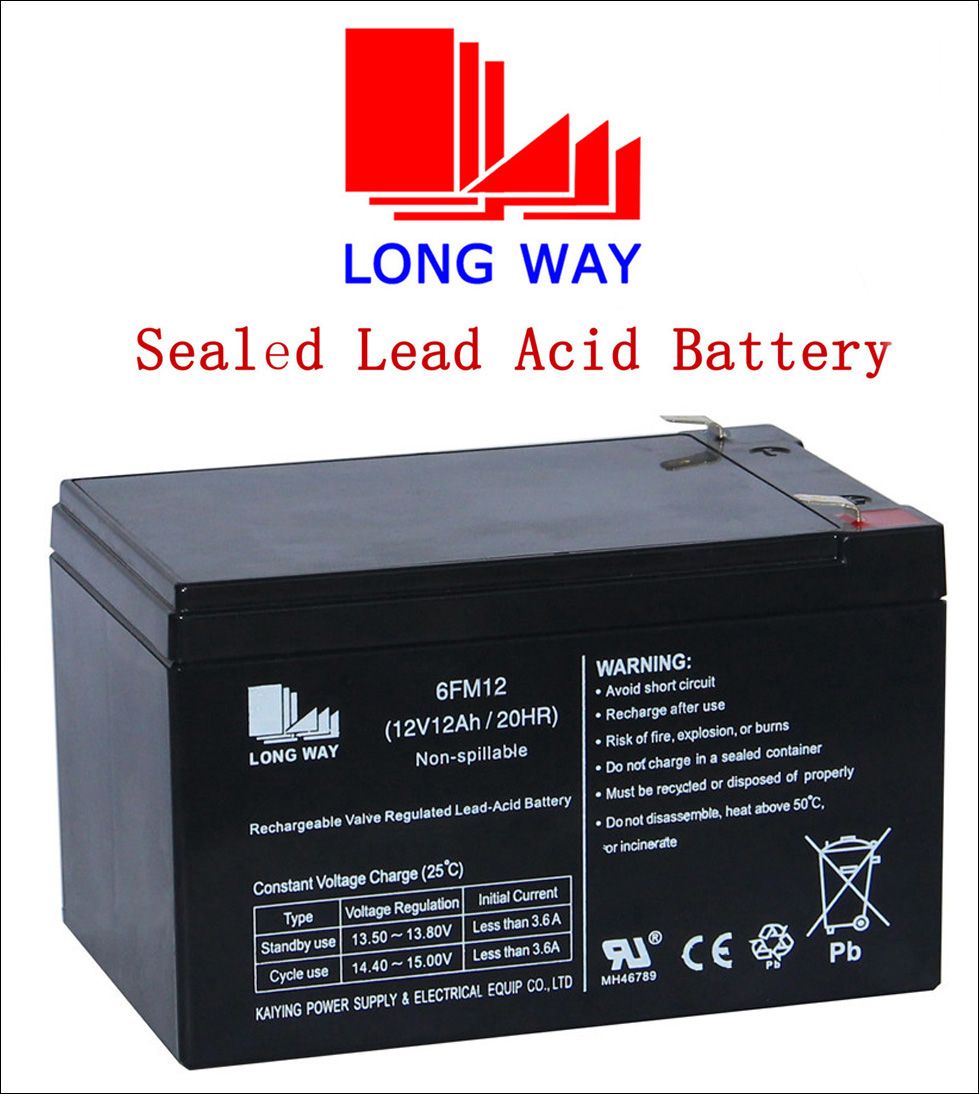

LONGWAY rechargeable UPS lead acid battery 12V12ah

LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.2Ah to 190Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 2500Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.


*Model: 6FM12 (12V12AH/20HR)
*Size: 151*98*93(Total Height: 99) MM
*Approx Weight: 3.24kg
*Terminal: F2
*Packing Qty.: : 4 PCS/CTN
*Lead-Time: 20 Days after confirming the order For One Container


*Application:
Lighting system;
Security system;
Electric toy;
Medical equipment;
Telecommunication system;
Power systems;
UPS;
Electric tools

*General Features:
Maintenance free;
Convenient for installation;
Safety and no leakage;
Excellent recharge and discharge performance;
Low self-discharge rate;
UL approval

*Designed Service Life: 5 years
*Warranty: 1 years
*OEM Acceptable

Our factory photo


Our certificate

If any interest, welcome to contact us freely.

Specifications:
Cells per Unit	6
Normal Voltage	12V
Capacity	12Ah@20Hr-rate to 1.75V per cell@25ºC
Weight	Approx.(3.24 ±3)%kg (7.14lbs)
Maximum Discharge Current	120A(5sec)
Internal Resistance	Approx. 18mΩ full charged @25ºC
Operating Temperature Range	Discharge: -15ºC~50ºC
	Charge: -15ºC~40ºC
	Storage: -15ºC~40ºC
Nominal Operating Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current	3.6A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
	for more than 6 months at 25ºC. Self-discharge ratio less than 3%
	per month at 25ºC. Please charge batteries before using.
Terminal	F2(0.250)
Container Material	ABS(UL94-HB)
	*Flammability resistance of (UL94-V0) can be available upon request

.Flammability resistance of (UL94-V0) can be available upon request

Standby Part of LONGWAY 12Volt battery series
Battery Model	Internal model	Nominal Voltage (V)	Nominal Capacity (AH) 20HR	Length		Width		Height		Total Height		Weight(±3%)		Terminal
				In	mm	In	mm	In	mm	In	mm	lbs	Kg	Type	Position
6FM50G	LW12-50	12	50	9.02	229	5.43	138	8.19	208	8.39	213	37.04	16.80	F20	C
6FM55A/G	LW12-55A	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F20	C
6FM55B/G	LW12-55B	12	55	9.02	229	5.43	138	8.19	208	8.39	213	37.92	17.20	F9	C
6FM60G	LW12-60	12	60	13.78	350	6.54	166	6.89	175	7.05	179	44.09	20.00	F16	D
6FM60A	LW12-60A	12	60	9.84	250	6.30	160	7.01	178	7.20	183	38.14	17.30	F9	D
6FM65A/G	LW12-65	12	65	13.78	350	6.54	166	6.89	175	6.89	175	46.30	21.00	F16	D
6FM65B/G	LW12-65B	12	65	13.78	350	6.61	168	7.09	180	7.09	180	46.30	21.00	F9	D
6FM70A/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	9.09	231	46.96	21.30	F20	C
6FM70B/G	LW12-70	12	70	10.20	259	6.65	169	8.31	211	8.50	216	46.96	21.30	F10	C
6FM80A/G	LW12-80	12	80	12.09	307	6.57	167	8.27	210	8.46	215	55.12	25.00	F10	C
6FM80B/G	LW12-80A	12	70	10.20	259	6.65	169	8.19	208	8.39	213	47.40	21.50	F10	C
6FM80E	LW12-80E	12	80	12.52	318	7.13	181	6.57	167	6.77	172	49.60	22.50	F9	D
6FM90	LW12-90	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F10	C
6FM95	LW12-95	12	95	12.09	307	6.57	167	8.19	208	8.39	213	59.52	27.00	F10	C
6FM100A	LW12-100A	12	100	12.99	330	6.81	173	8.62	219	8.82	224	65.04	29.50	F12	C
6FM100B	LW12-100B	12	100	12.99	330	6.81	173	8.62	219	8.82	224	67.24	30.50	F12	C
6FM100C	LW12-100C	12	100	13.03	331	6.81	173	8.62	219	9.45	240	65.04	29.50	F22	C
6FM100D	LW12-100D	12	100	15.94	405	6.81	173	8.27	210	9.33	237	70.55	32.00	F17	C
6FM120	LW12-120	12	120	15.94	405	6.81	173	8.27	210	9.33	237	77.16	35.00	F17	C
6FM120A	LW12-120A	12	120	15.94	405	6.81	173	8.27	210	9.33	237	76.06	34.50	F17	C
6FM120B	LW12-120B	12	120	12.99	330	6.81	173	8.62	219	8.82	224	68.34	31.00	F12	C
6FM120C	LW12-120C	12	120	12.99	330	6.81	173	8.62	219	8.82	224	70.55	32.00	F12	C
6FM140	LW12-140	12	140	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F12	C
6FM150	LW12-150	12	150	19.02	483	6.69	170	9.49	241	9.49	241	98.11	44.50	F18	C
6FM160	LW12-160	12	160	13.43	341	6.81	173	11.14	283	11.34	288	99.21	45.00	F12	C
6FM160A	LW12-160A	12	160	13.43	341	6.81	173	11.14	283	11.14	283	99.21	45.00	F11	C
6FM160B	LW12-160B	12	160	20.94	532	8.15	207	8.46	215	9.45	240	111.66	50.65	F24	E
6FM180	LW12-180	12	180	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM200	LW12-200	12	200	20.55	522	9.45	240	8.62	219	8.82	224	127.87	58.00	F19	E
6FM230	LW12-230	12	230	20.51	521	10.59	269	7.99	203	8.19	208	143.30	65.00	F24	F
6FM250	LW12-250	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70.00	F25	E
9FM7	LW18-7	18	7	5.94	151	3.98	101	3.98	101	3.98	101	8.75	3.97	W	D
