Rechargeable Wind Power Solar Sealed Lead-Acid Battery

Prod Model:	6FM200S/12V200ah
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey or Black or Orange
Terminal:	F11
Type:	Lead-Acid Batteries
Usage:	Wind Power Battery
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable

Product Description

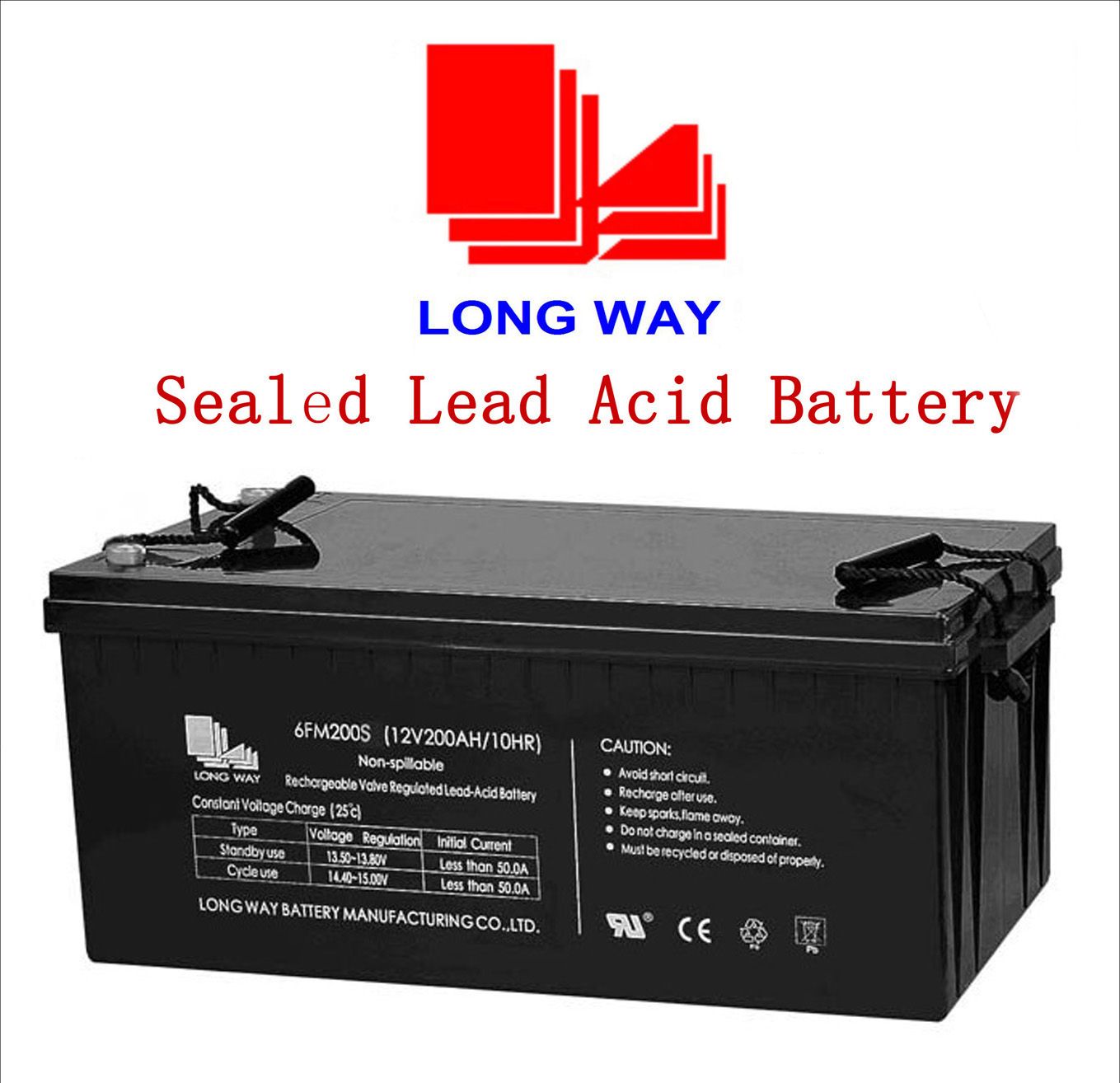

LONGWAY Rechargeable Wind Power solar sealed Lead-Acid Battery 12V200ah (6FM200S)

*LONGWAY S series is specially designed for solar system & wind power system. According the condition of applications, LONGWAY Battery Manufacturing Co., Ltd., spent more than one year to develop and research S series. S Series performs excellent when it is recharged in high ambient temperature, discharge in low ambient temperature. S Series has good capacity retention under the poor recharging condition.



*Model: 6FM200S (12V200AH/10HR)
*Application: Solar System; Wind Power System
*Size: 172 (6.77)*111(4.37)*338 (13.31)*365 (14.37)mm(inch)
*Approx Weight: 13.0Kg (28.66bs) ± 5%
*Capacity (25º C): 20HR (10.5A) 210AH; 10HR (20A) 200AH; 5HR (34A) 170 AH; 1HR (110A) 110AH
*Internal Resistance (Fully charged at 25º C): 0.003 Ohm
*Self-discharge: 3% of capacity declined per month at 25º C
*Capacity Affected by Temp. (20HR); 40º C 105%; 25º C 100%; 0º C 85%; -15º C 65%
*Charge Voltage (25º C): Cycle use: 14.40-15.00 V (-24 mV/º C), Max. Current: 50 A;
Stand-by use: 13.50-13.80 V (-18 mV/º C)

*General Features: High Recharging Efficiency; Good Renewal Ability after Deep Discharge; Excellent Performance in Low Temperature; Maintenance-Free; Safe and Non-spillable; Long Life Service; UL Approvals
*Designed Service Life: 10 years
*warranty: 2 years
*OEM Acceptable

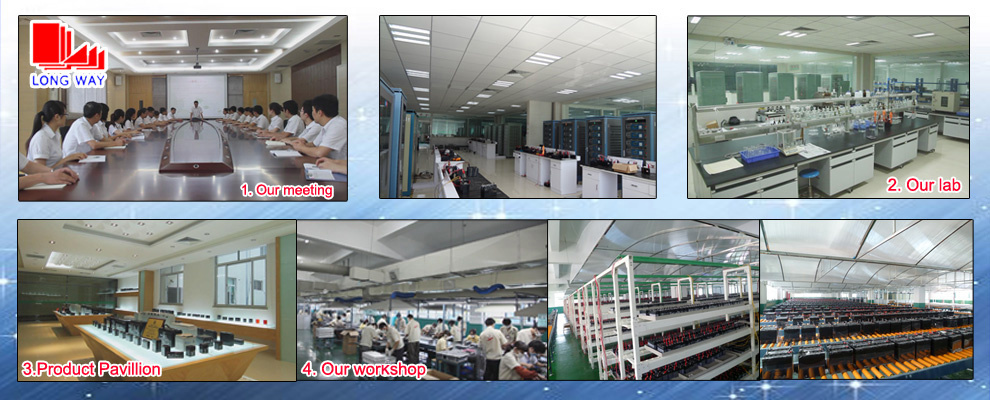

Our factory photo


Our certificate

If any interest, welcome to contact us freely.


Standby Storage Series batteries
Battery Model	Nominal Voltage(V)	Nominal Capacity (AH)	Length		Width		Height		Total Height		Weight(5%)		Terminal
			In	mm	In	mm	In	mm	In	mm	Pound	Kg	Type	Position
6FM7S	12	7	5.94	151	2.56	65	3.70	94	3.94	100	4.85	2.20	F1/F1	F
6FM9S	12	9	5.94	151	2.56	65	3.70	94	3.94	100	5.73	2.60	F1/F1	F
6FM12S	12	12	5.94	151	3.86	98	3.74	95	3.98	101	8.27	3.75	F2	F
6FM18S	12	18	7.13	181	3.03	77	6.57	167	6.57	167	11.24	5.10	F4	D
6FM20S	12	20	7.13	181	3.03	77	6.57	167	6.57	167	12.35	5.60	F4	D
6FM24S	12	24	6.89	175	6.54	168	4.96	126	4.96	126	18.08	8.20	F4/F8	D
6FM28S	12	28	6.89	175	6.54	166	4.96	126	4.96	126	19.84	9.00	F4/F8	D
6FM33S	12	33	7.68	195	5.12	130	6.34	161	6.54	166	23.15	10.50	F9	C
6FM40S	12	40	7.8	198	6.54	166	6.69	170	6.69	170	29.10	1320	F9	D
6FM55S	12	55	9.02	229	5.43	138	8.19	208	8.39	213	38.58	17.50	F9	C
6FM65S	12	65	13.78	350	6.5	165	7.17	162	7.17	182	49.60	22.50	F6/F9	C
6FM80S	12	80	12.09	307	6.57	167	8.27	210	8.46	215	52.91	24.00	F9	C
6FM90S	12	90	12.09	307	6.57	167	8.19	208	8.39	213	58.42	26.50	F9	C
6FM100S	12	100	12.99	330	6.81	173	8.62	219	8.82	224	66.14	30.00	F11	C
6FM120S	12	120	15.94	405	6.81	173	9.33	237	9.33	237	77.16	35.00	F11	C
6FM134S	12	134	13.43	341	6.81	173	11.14	283	11.34	288	91.49	41.50	F10	C
6FM150S	12	150	19.02	483	6.69	170	9.49	241	9.49	241	97.00	44.00	F11	C
6FM200S	12	200	20.55	522	9.45	240	8.62	219	8.82	224	132.28	60.00	F11	E
6FM250S	12	250	20.47	520	10.59	269	8.66	220	9.65	245	154.32	70.00	F11	E
FM200S	2	200	6.77	172	4.37	111	13.31	338	14.37	365	28.66	13.00	F13	G
FM300S	2	300	6.77	172	5.94	151	13.39	340	14.37	365	39.68	18.00	F13	G
FM400S	2	400	8.31	211	6.89	175	13.23	336	14.37	365	52.91	24.00	F13	G
FM500S	2	500	9.45	240	6.81	173	13.31	338	14.37	365	66.14	30.00	F13	H
FM600S	2	600	11.89	302	6.89	175	13.39	340	14.37	365	80.47	36.50	F13	H
FM800S	2	800	16.14	410	6.93	176	13.39	340	14.37	365	112.44	51.00	F13	I
FM1000S	2	1000	18.7	475	6.89	175	13.31	338	14.37	365	132.28	60.00	F13	I
