Rectangular Type Roller Lever 3se3 (LXP1) Limit Switches (LXP1/120/1T)

Name: Rectangular Type Roller Lever 3se3 (LXP1) Limit Switches (LXP1/120/1T)
Brand: all-electronics-online.com
SKU: 696577265
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXP1/120/1T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Speed:	0.5mm~0.5m/S
Operating Frequency 1:	Mechanical:120 Operations/Min
Operating Frequency 2:	Electrical:30 Operations/Min
Conventional Thermal Current:	5A
Electrical Prameter:	AC380V/0.8A DC220V/0.1A
Vibration:	Malfunction:10Hz~55Hz, 1.5mm Double Amplitude
Shock:	Mechanical Resistance:1000m/S2; Malfunction:300m/S
Working Life:	Mechanical:6106 Min.; Electrical:3105
Degree Of Protection:	IP65
Ambient Temperature:	Minus 5-60 Centigrades

Product Description

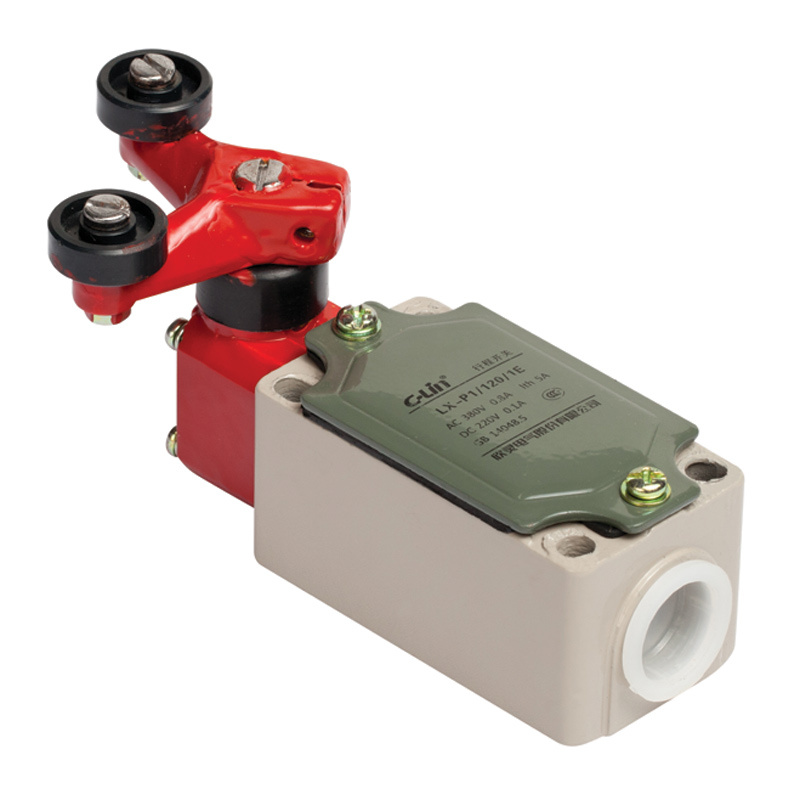

3SE3 (LXP1) Limit Switches (LXP1/120/1T)
General Introduction
LX-P1 series limit switch is applied to the 50HZ/60HZ, 250VAC, 220VDC control circuits, works as travel control, limit control, motion direction or speed change, machine tool automatic control, etc.
Approved standards: GB 14048.5 IEC60947-5-1

Technical Specification

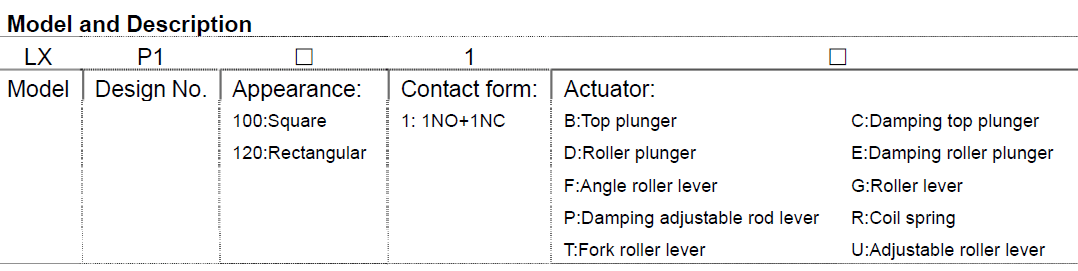

Type		Operating Force max	Pretravel max	Overtravel min
LX-P1/100/1B	LX-P1/120/1B	10N(1.02kgf)	4mm	4mm
LX-P1/100/1C	LX-P1/120/1C	25N(2.55kgf)	4mm	4mm
LX-P1/100/1D	LX-P1/120/1D	25N(2.55kgf)	4mm	4mm
LX-P1/100/1E	LX-P1/120/1E	18N(1.83kgf)	10°	10°
LX-P1/100/1F	LX-P1/120/1F	18N(1.83kgf)	10°	5°
LX-P1/100/1G	LX-P1/120/1G	10N(1.02kgf)	30°	50°
LX-P1/100/1P	LX-P1/120/1P	10N(1.02kgf)	30°	50°
LX-P1/100/1R	LX-P1/120/1R	20°	10°	2N

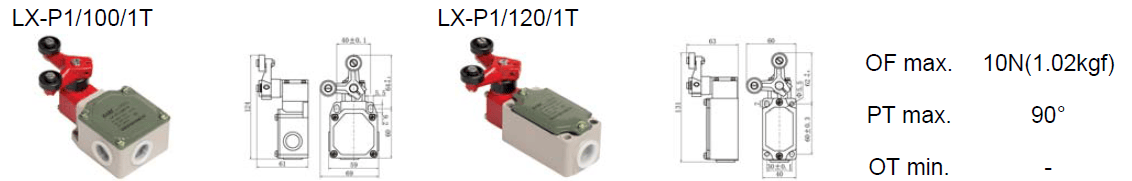

LX-P1/100/1T	LX-P1/120/1T	10N(1.02kgf)	90°	/
LX-P1/100/1U	LX-P1/120/1U	10N(1.02kgf)	30°	50°
