| Prod Model: |
RS1J, RS1M |
| Current: |
1.0 |
| Peake Reverse Voltage: |
100 |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
PGA(',Pin Grid Array Package) |
| Model: |
Fr1d |
| Batch Number: |
2016 |
| Brand: |
Sy |
Product Description

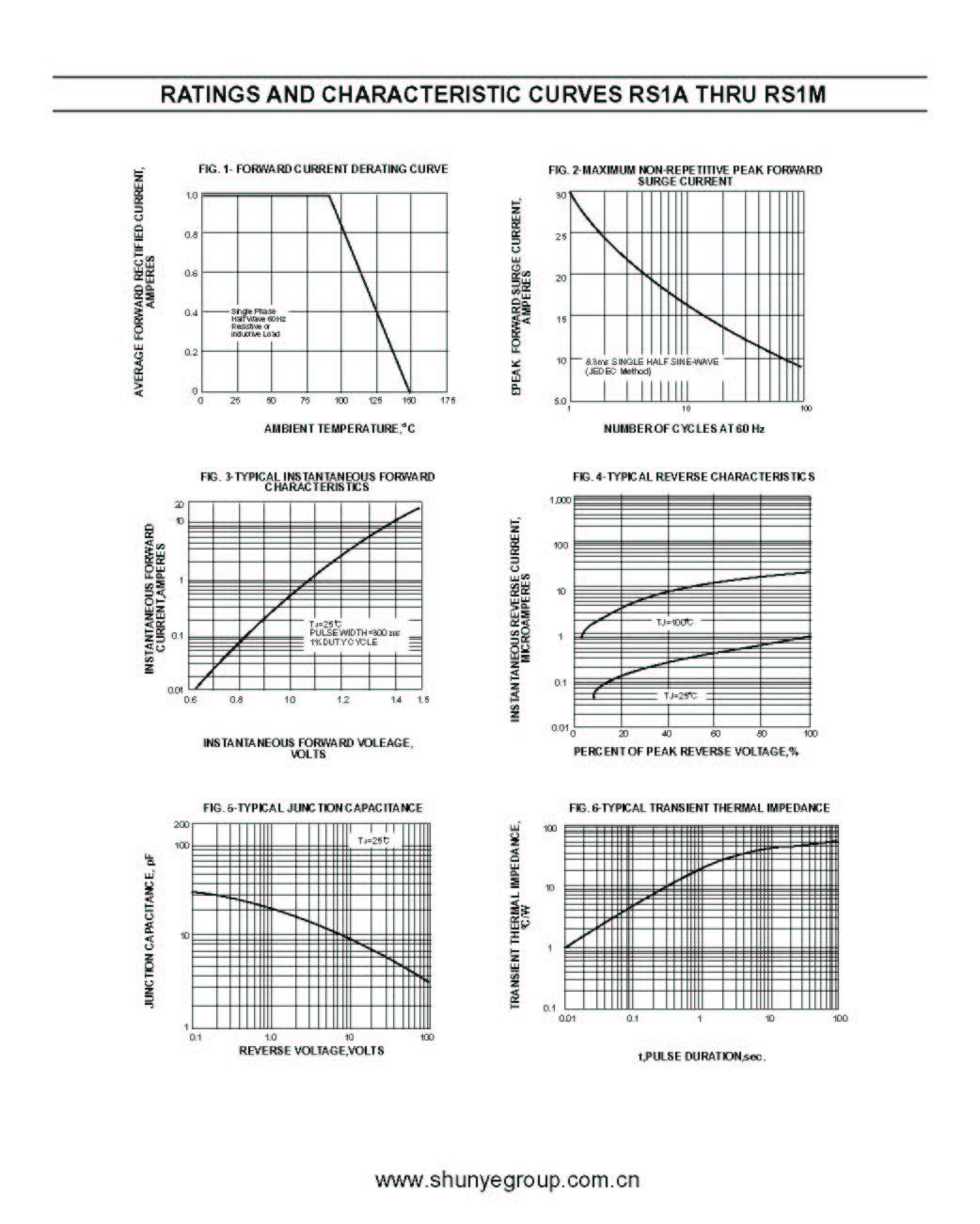

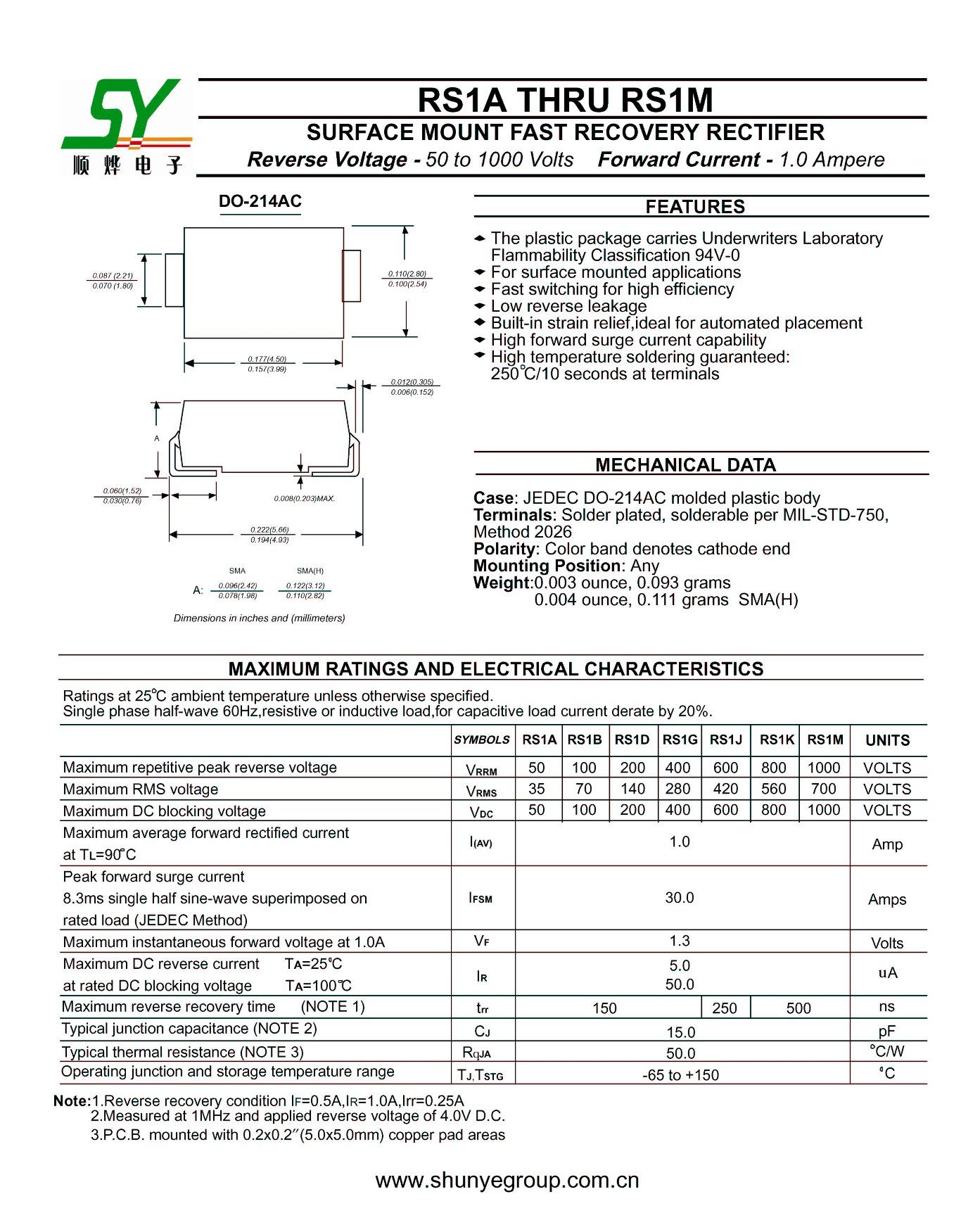

1A,1000V-SILICON RECTIFIER-RS1J1.Datasheet:
2.FR series:| SURFACE MOUNE FAST RECOVERY RECTIFIERS | | | | |
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Maximum | Package | | | | |
| Reversee | Rectified | Prak Surge Current | Current | Voltage | Reverse | | | | |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC | Recovery Time | | | | |
| VRRM | I(AV) | IFSM | IR | IF | VF | trr | | | | |
| V | A | A | μA | A | V | ns | | | | |
| SM4933 | 50 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | MELF | | | | |
| SM4934 | 100 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| SM4935 | 200 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| SM4936 | 400 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| SM4937 | 600 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 250 | | | | |
| SM4947 | 800 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| SM4948 | 1000 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| RS1A | 50 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | DO-214AC
(SMA) | | | | |
| RS1B | 100 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| RS1D | 200 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| RS1G | 400 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| RS1J | 600 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 250 | | | | |
| RS1K | 800 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| RS1M | 1000 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| FR1A | 50 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | DO-214AC
(SMA) | | | | |
| FR1B | 100 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| FR1D | 200 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| FR1G | 400 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 150 | | | | |
| FR1J | 600 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 250 | | | | |
| FR1K | 800 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| FR1M | 1000 | 1.0 | 30 | 5.0 | 1.0 | 1.3 | 500 | | | | |
| RS2A | 50 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | DO-214AC
(SMA)
DO-214AA
(SMB) | | | | |
| RS2B | 100 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| RS2D | 200 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| RS2G | 400 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| RS2J | 600 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 250 | | | | |
| RS2K | 800 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 500 | | | | |
| RS2M | 1000 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 500 | | | | |
| FR2A | 50 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | DO-214AC
(SMA)
DO-214AA
(SMB) | | | | |
| FR2B | 100 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| FR2D | 200 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| FR2G | 400 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 150 | | | | |
| FR2J | 600 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 250 | | | | |
| FR2K | 800 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 500 | | | | |
| FR2M | 1000 | 2.0 | 60 | 5.0 | 2.0 | 1.3 | 500 | | | | |
| RS3A | 50 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | DO-214AA
(SMB)
DO-214AB
(SMC) | | | | |
| RS3B | 100 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| RS3D | 200 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| RS3G | 400 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| RS3J | 600 | 3.0 | 200 | 10 | 3.0 | 1.3 | 250 | | | | |
| RS3K | 800 | 3.0 | 200 | 10 | 3.0 | 1.3 | 500 | | | | |
| RS3M | 1000 | 3.0 | 200 | 10 | 3.0 | 1.3 | 500 | | | | |
| FR3A | 50 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | DO-214AA
(SMB)
DO-214AB
(SMC) | | | | |
| FR3B | 100 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| FR3D | 200 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| FR3G | 400 | 3.0 | 200 | 10 | 3.0 | 1.3 | 150 | | | | |
| FR3J | 600 | 3.0 | 200 | 10 | 3.0 | 1.3 | 250 | | | | |
| FR3K | 800 | 3.0 | 200 | 10 | 3.0 | 1.3 | 500 | | | | |
| FR3M | 1000 | 3.0 | 200 | 10 | 3.0 | 1.3 | 500 | | | | |
| RS5A | 50 | 5.0 | 200 | 10 | 5.0 | 1.3 | 150 | DO-214AB
(SMC) | | | | |
| RS5B | 100 | 5.0 | 200 | 10 | 5.0 | 1.3 | 150 | | | | |
| RS5D | 200 | 5.0 | 200 | 10 | 5.0 | 1.3 | 150 | | | | |
| RS5G | 400 | 5.0 | 200 | 10 | 5.0 | 1.3 | 150 | | | | |
| RS5J | 600 | 5.0 | 200 | 10 | 5.0 | 1.3 | 250 | | | | |
| RS5K | 800 | 5.0 | 200 | 10 | 5.0 | 1.3 | 500 | | | | |
| RS5M | 1000 | 5.0 | 200 | 10 | 5.0 | 1.3 | 500 | | | | |
| Note:Trr Conditions:IF=0.5A IR=1.0A Irr=0.25A | | | | |
| | | | | |
3.Reliability Test List: | HIGH RELIABILITY-TEST LIST |
| | | | |
Number |
Experiment Items |
Experiment Method And Conditions |
Reference |
| 1 |
Solder Resistance | 260ºC+5ºC for 10+2sec.
Immerse body into solder 1/16"+1/32" | MIL-STD-750D
METHOD-2031.2 |
| 2 |
Solderability | 230ºC+5ºC for 5 sec. | MIL-STD-750D
METHOD-2026.10 |
| 3 |
Pull Test | 1kg in Axial Lead Direction for 10 sec. | MIL-STD-750D
METHOD-2036.4 |
| 4 |
Bend Test | 0.5kg Weight Applied To Each Lead
Bending Arcs 90 ±5ºC For Three Times | MIL-STD-750D
METHOD-2036.4 |
| 5 |
High Temperature
Reverse Bias Test | TA=100ºC for 1000 Hrs at VR=80% Rated VR | MIL-STD-750D
METHOD-1038.4 |
| 6 |
Forward Operation Life Test | TA=25ºC Rated Average Rectified Current
for 500 Hrs | MIL-STD-750D
METHOD-1027.3 |
| 7 |
Intermittent Operation Life | On state:5 min Tj=125ºC-175ºC with
Rated IRMS Power.
Off state:5 min Tj=TA+15ºC With
Cool Forced Air.On and Off for 1000 Cycles. | MIL-STD-750D
METHOD-1036.3 |
| 8 |
Pressure Cooker | 15 PSIG,TA=121ºC,24hrs | MIL-STD-750D |
| 9 |
Temperature Cycling | -55ºC/+125ºC 30 Minutes For Dwelled Time
5 Minutes For Transfered Time.
Total 10 Cycles. | MIL-STD-750D
METHOD-1051.7 |
| 10 |
Thermal Shock | 0ºC for 5 min,100ºC for 5Min,Total 10 Cycles | MIL-STD-750D
METHOD-1056.7 |
| 11 |
Forward Surge | 8.3 ms Single Hale Sine-wave Superimposed
On Rated Load, One Surge. | MIL-STD-750D
METHOD-4066.4 |
| 12 |
Humidity Test | TA=65ºC,RH=98% for 1000hrs. | MIL-STD-750D
METHOD-1021.3 |
| 13 |
High Temperature Storage Life | 150ºC for 1000 Hrs | MIL-STD-750D
METHOD-1031.5 |

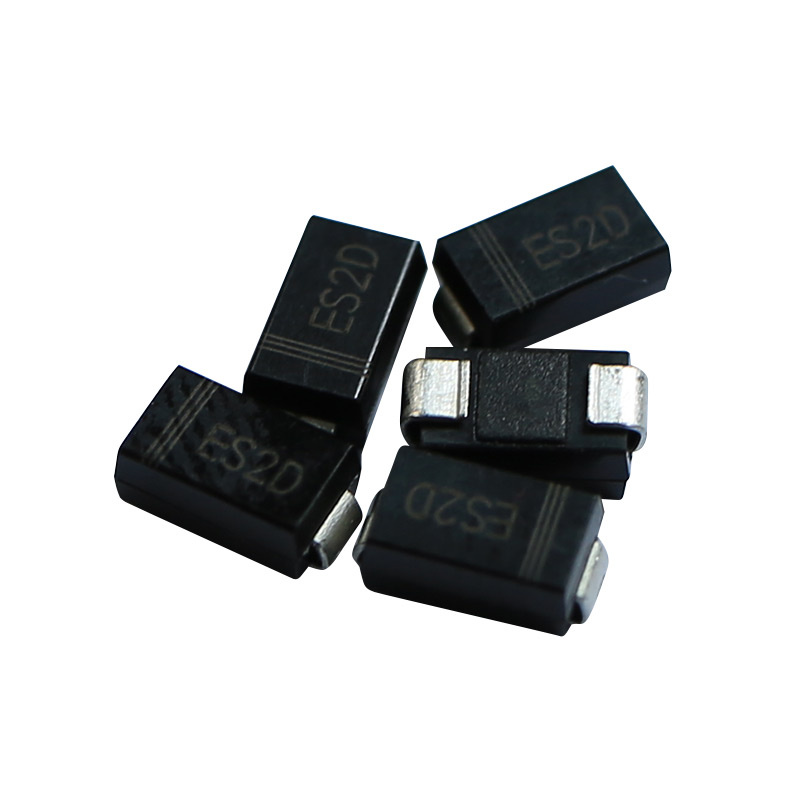

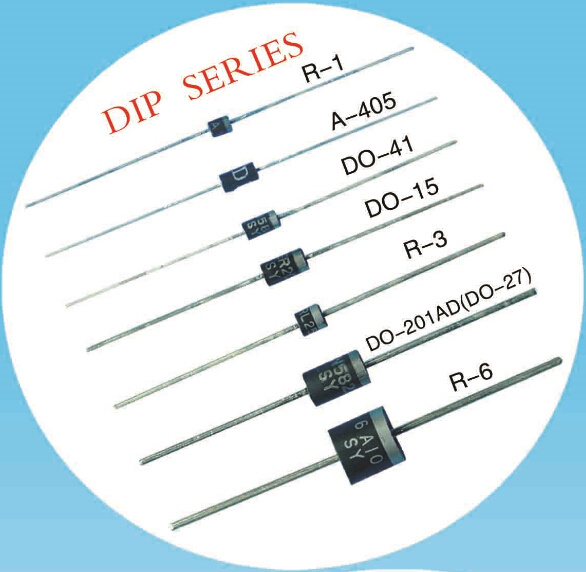

4.Product Picture:
5.Contact Us:
6. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.
2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.
5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;
We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.
