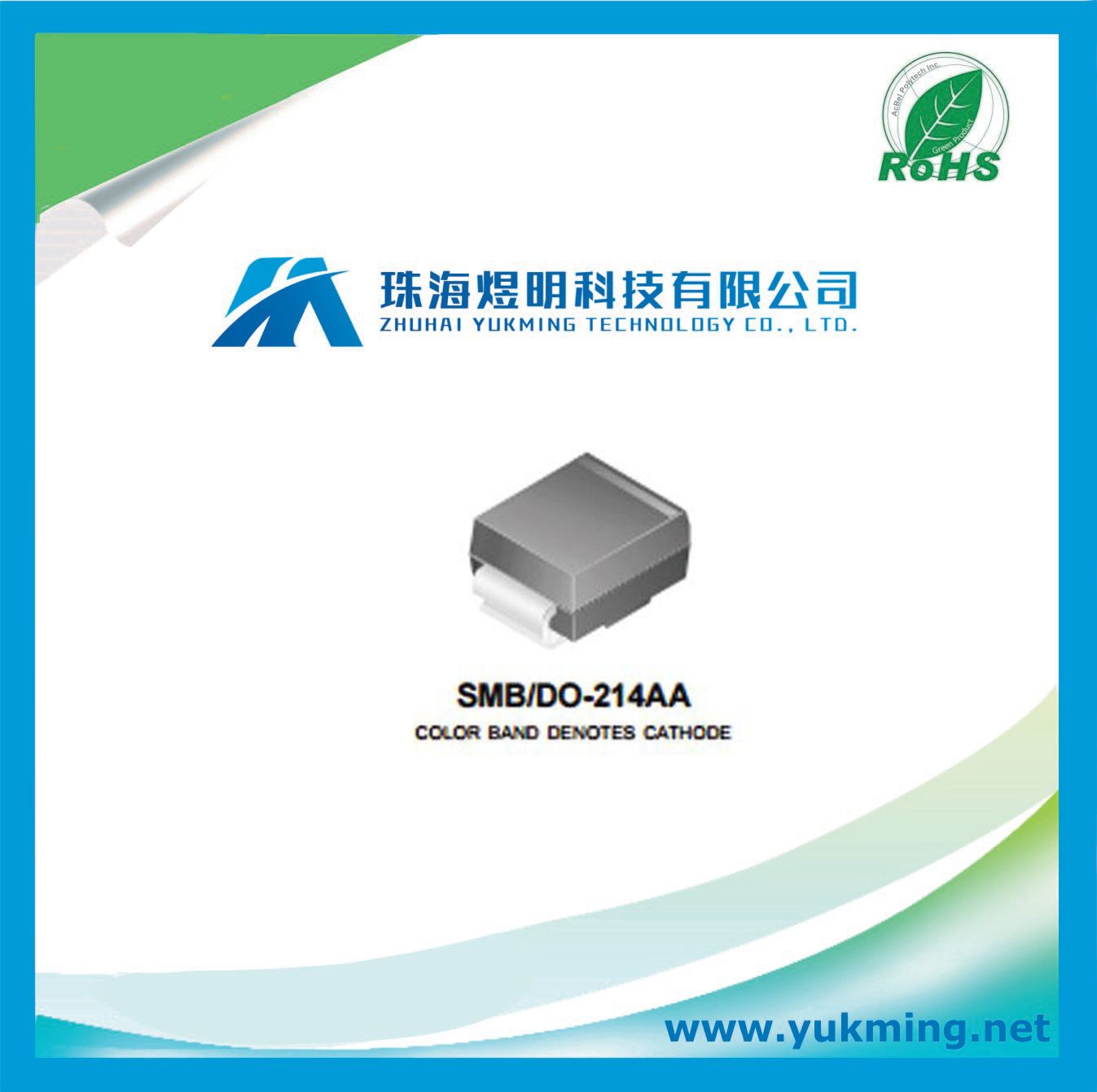

Rectifier Diode Ss24 of Electronic Component

Name: Rectifier Diode Ss24 of Electronic Component
Brand: all-electronics-online.com
SKU: 796814085
Availability: InStock
Rating: 4.8 (43 reviews)

Price:	US $ 0.008-0.3/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SS24
Type:	Schottky Diode
Peak Reverse Repetitive Voltage (V):	40
Peak Non-Repetitive Surge Current (a):	50
Peak Forward Voltage (V):	0.5
Peak Reverse Current (Ua):	400
Maximum Power Dissipation (MW):	1300
Operating Temperature Range:	-65 to 125 Degree C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

Specifications
EU RoHS Compliant
Type Schottky Diode
Configuration Single
Peak Reverse Repetitive Voltage (V) 40
Maximum Continuous Forward Current (A) 2@Ta=75C
Peak Non-Repetitive Surge Current (A) 50
Peak Forward Voltage (V) 0.5
Peak Reverse Current (uA) 400
Maximum Power Dissipation (mW) 1300
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Operating Junction Temperature (°C) -65 to 125
Mounting Surface Mount
Package Height (mm) 2.45(Max)
Package Length (mm) 4.75(Max)
Package Width (mm) 3.95(Max)
PCB changed 2
Standard Package Name DO-214-AA
Supplier Package DO-214AA
Pin Count 2
Lead Shape J-Lead
