Rectifier Transformer, Induction Furnace Transformer

Name: Rectifier Transformer, Induction Furnace Transformer
Brand: all-electronics-online.com
SKU: 757867785
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 2000-20000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZPS Rectifier transformer, furnace transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transofmer Capacity:	200kVA to 10000kVA
Color:	Blue or Grey
Application:	Rectifier
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Zhongya Tebian

Product Description

1. Product Name: Rectifier Transformer, induction furnace transformer

2. Model: ZPS Transformer, 200KVA-10000KVA
3. Usage: Used for induction furnace, transfer high voltage in to medium frequency voltage input, such as 10 KV transfers into 380V, or 660V, 750V.

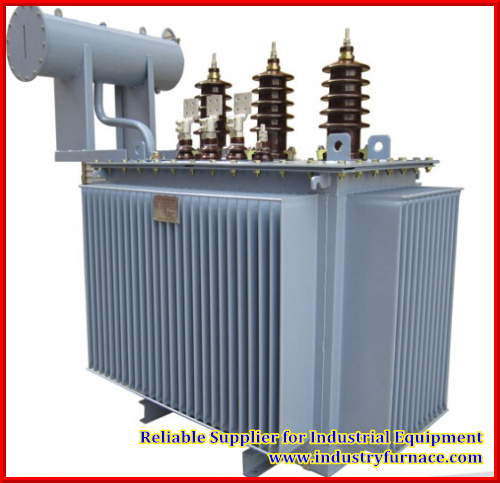

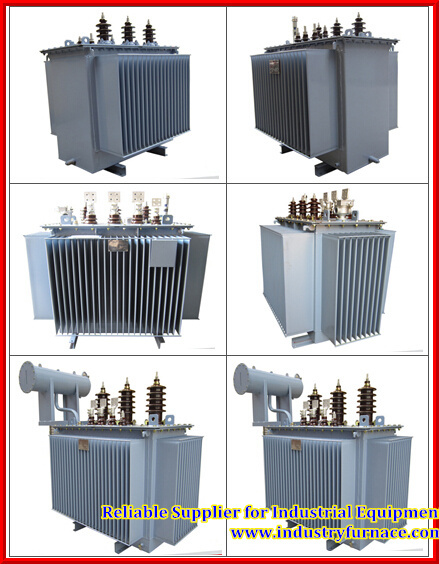

4. Equipment photos for reference:

5. Technical Specifications:

Model	2000KVA 6.3KV/0.66
Rated capacity	2000KVA
Input voltage(KV)	6.3KV
Output voltage(KV)	0.66KV
Frequency	50Hz
Phase	3 phase
High voltage tapping voltage	±5%
Connection symbol	Yyn0
Cooling agent	K(NAN)
Di-electric	silicon oil
Load loss(KW)	17.8
No-load loss(KW)	2.53
Non-load current(%)	0.5
Oil weight	870
Total weight	4350
Dimension(LxHxW)(mm)	210016301940
Installation size(mm)	900*820
Packing	Plywood case 211016902230

6. Equipment Package: Plastic film protection OR plywood box.

7. Equipment Delivery: By sea container, train container, or by trucks.

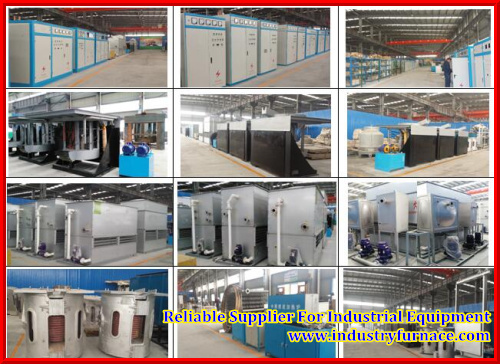

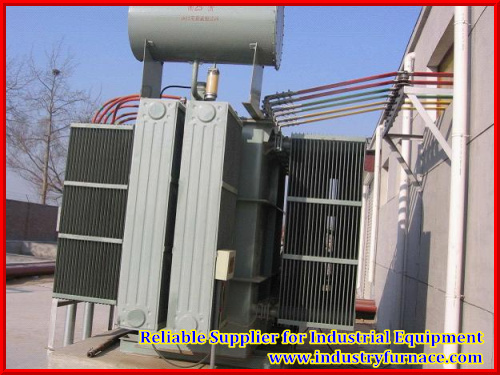

8. Equipment Working Site:

9. Aftersales Service:
1.Paper documents:
We offer all related schemes for building furnace foundation, furnace installation, cables connections, pipes connections.
2.Installation and commissioning:
We offer engineers for assistant of equipment installation and commissioning.
3.Spare parts support:
We support all spare parts in time when there is need for all the time after sales.

10. Trade Terms:
1. Delivery Port: Qingdao;
2. Delivery Time: 30/45/60/80 days to Qingdao Port;
Shipment: 20GP/40GP/40HC/40OT/Flat Rack Container
3. Payment Term: 100% T/T in advance
(30% Deposit for arranging producing, and balance rest 70% before shipment);
4.Quality Guarantee: 1 year.
