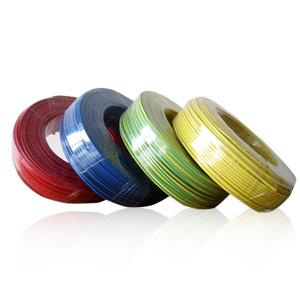

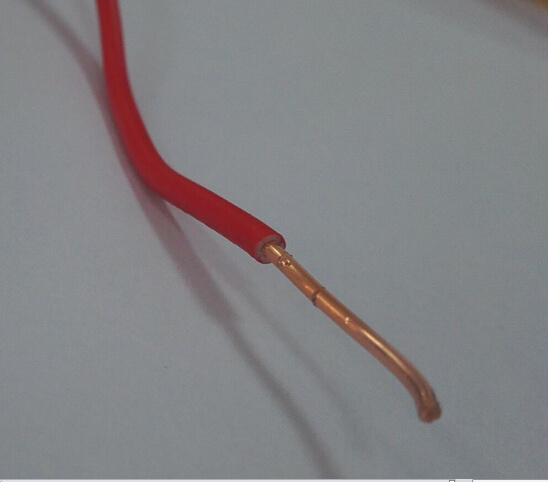

Red Color PVC Housing Wire

Prod Model:	Housing Wire
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red Blue Green, White, Black, Yellow
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Solid, Flexible, Stranded
Application:	Home, Building Wire
Range Of Application:	House Wire
Brand:	Yifang

Product Description

PVC insulated house wiring electrical cable for driving,lighting application
1.Brief Introduction:
1)PVC insulated electrical wire covers series of wire products:

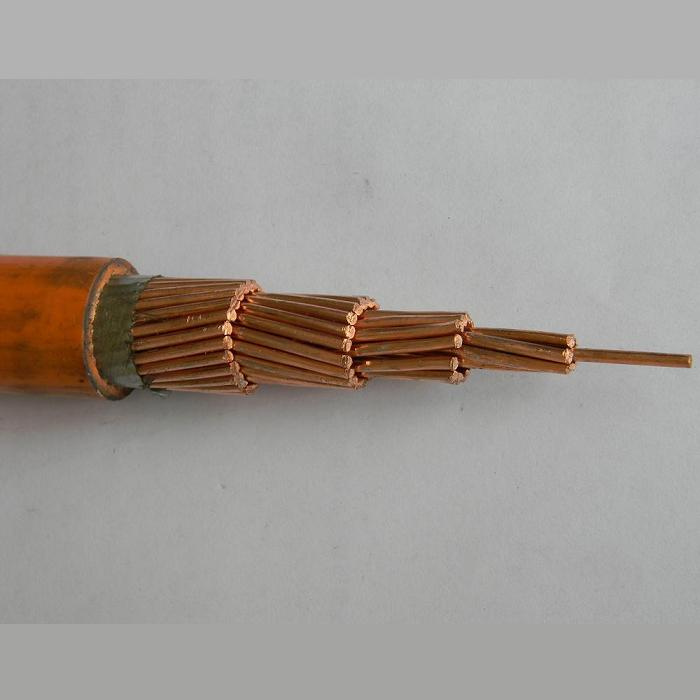

According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire,
Flexible PVC insulated wire with different colors.
According to its shape, including flat wire, round wire, etc. with different colors.
Accoding to its core number, including single core wire, multi-core wire, etc. with different colors.
2)Rated Voltage:
AC rated voltage 450/750V.Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/500V.
The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
3)Application:
450/750V PVC Insulated Wire is used for driving, lighting, electric equipment, instrument and telecommunication equipment.


4)Working temperature:
BV-105 model not more than 105ºC. BV-90 should lower then 90oC.Others not more than 75ºC .And the laying temperature should higher then 0oC.
5)Bending diameter:
The bending diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the bending diameter should be at least 12 times of the outer diameter of the cable and wires.
2.Model and description:

Model	Description	Laying place and requirement	Long term working Temperature (°c)
60227IEC01  05 BV BLV	Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires	Fixed laid indoors Conduit etc.	70
60227IEC07 (BV-90)	Heat resistant copper conductor PVC insulated wire at 90 0C	Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits.	90
BVR	Copper conductor PVC insulated flexible cable	Be for laying permanent place where flexible required.	70
60227IEC10 (BVV)	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	70
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires
BVVB	Copper conductor PVC insulated PVC sheathed flat wires
BLVVB	Aluminum conductor PVC insulated PVC sheathed flat wires
60227IEC02(RV) 60227IEC06(RV)	Copper conductor PVC insulated flexible connector wire	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	70
60227IEC42(RVB)	Copper conductor PVC insulated flat flexible connector wire
RVS	Copper conductor PVC insulated flexible twisting connector wire
60227IEC52(RVV) 60227IEC53	Copper conductor PVC insulated PVC sheathed round flexible connector wire
60227IEC08 (RV-90)	Cu conductor heat resistant PVC insulated flexible connector wire at 900C	Mainly used at the places where heat resistance is required	90
