Red LED Light Carling Bar Rocker Switch Rocker Switches

Name: Red LED Light Carling Bar Rocker Switch Rocker Switches
Brand: all-electronics-online.com
SKU: 764665655
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 2.6-3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DS2013/1011/4010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Function:	on - off
Brand:	Maiyu
Pin:	5pin
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

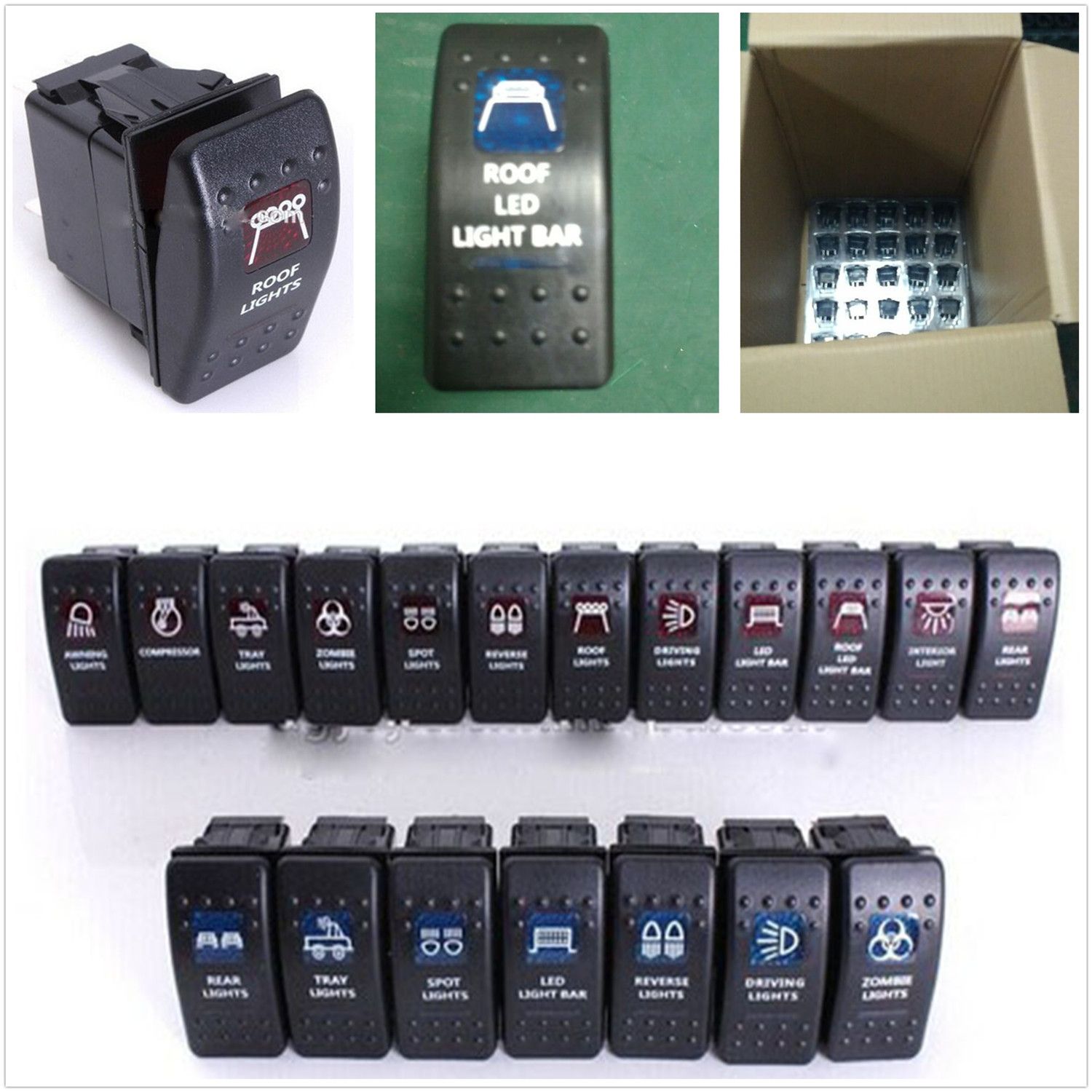

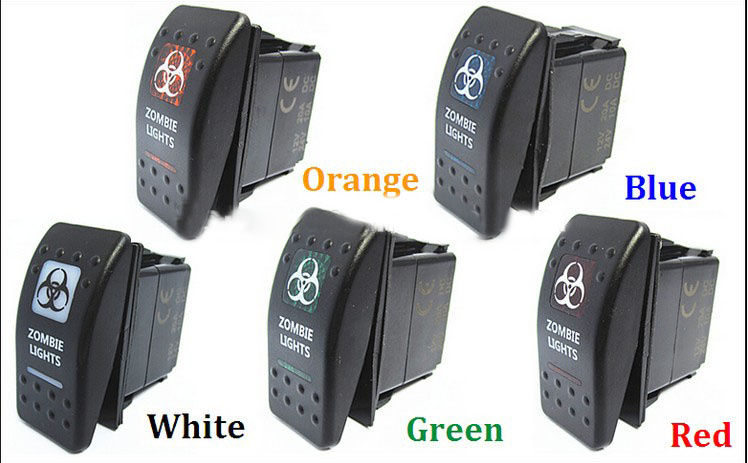

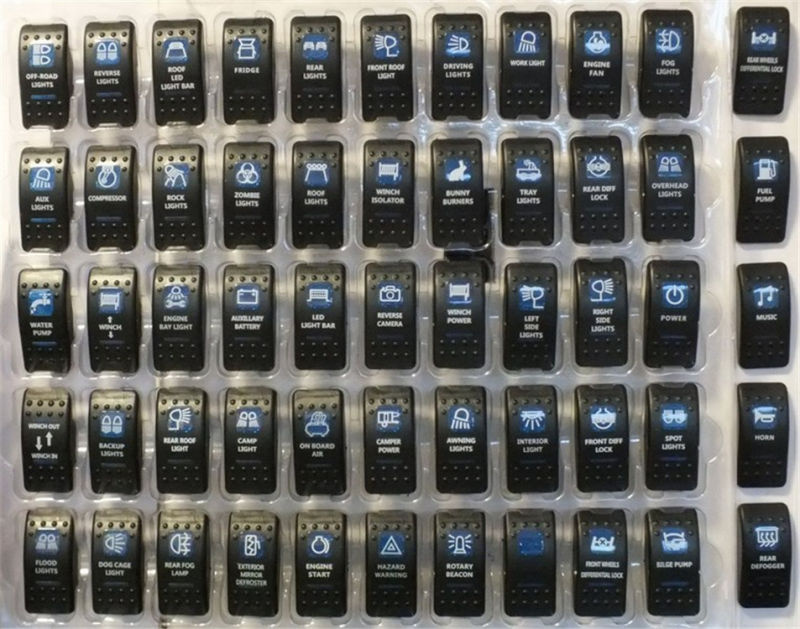

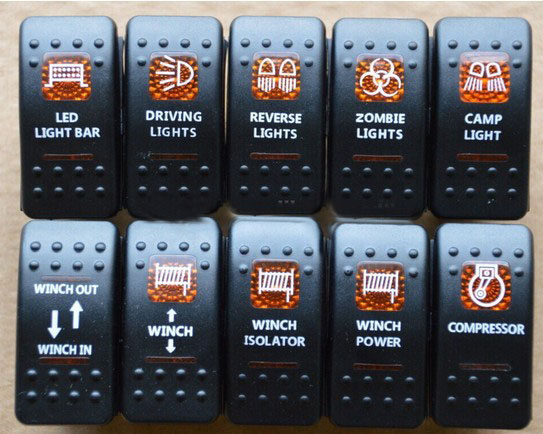

Carling style Dual LED laser engraved rocker switch with 5 pin

· CE,ROHS approve

· Widely used in car,marine boat,auto parts

· 100% brand new and tested before shipment

· Dual LED Laser engraved Legend

· Waterproof and heat resisting

· High quality with low price

specification

· Function:ON-OFF

· Black hard surface rocker

· Pin:5pin

· LED :Dual Led light

· Rated 20A 12V.

· This switch uses the same light configuration as the ARB switches.

· No rear barriers between terminals.

· Wiring diagram supplied with switch.

· Switch panel: 43mm x24mm

· Switch cut out size: 0.83'' x 1.45''.

· Panel thickness between 1/16'' and 1/4''

This high quality 12 volt Rocker switch it is a single throw ON - OFF switch designed to operate your 12 volt driving lights. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
Packaging & Delivery
Packing details: Packing :500pcs in a box,normal carton
Delivery detail: In 10 days

Single Pole Single Throw ON - OFF switch
Black hard surface rocker.
Single upper blue L.E.D light.
Single lower blue L.E.D light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''

---------------------------------------------------
