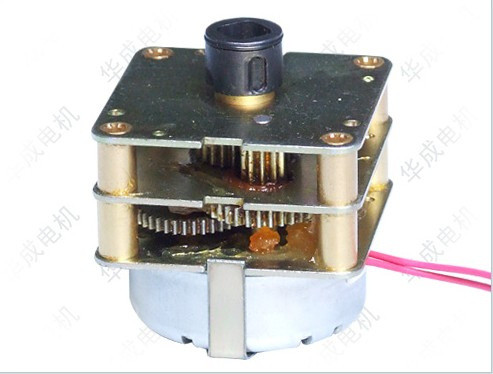

Reduction-Gear Synchronous Motor, Fan Motor (49TDY-M)

Reduction-Gear Synchronous Motor, Fan Motor (49TDY-M)
Price: US $ 4.00-4.5/Piece
Trade Terms: FOB,CIF
Min Order: 1000/Piece
Pay Type: T/T
Prod Model: 49TDY-M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality: CE,RoHS,CCC
Material: Brass, Steel ,ABS
Operation Mode: Electric Motor
Operating Speed: Low Speed
Application: Car
Number Of Poles: Single-Phase
Magnetic Structure: Permanent Magnet

Product Description

Synchronous Motor+gear box
Rated voltage (AC/V) 100, 120, 200, 240
Freeload power (W) <4
Freeload current (mA) <25
Rated frequency (Hz) 50/60
Rated speed (r. P. M) 15-18
Rated torque (kgf. Cm) >2
Insulation resistance (MΩ ) >100
Dieletric strength (ACV/1s) 1500
Noise (dB) <35
Temperature rise (K) <60
Insulation class E
Rotation bi-directional

Working voltage & frequency, rotate speed, The output shaft and color & length of conducting wire can be produced according to clients request.
Rated voltage 12V± 10%
Number of Pole 4
Speed Variation Ratio 1/64
Stride Angle 5.625° /64
DC resistance 300Ω ± 7%(25degree)
Idle In-traction Frequency > 600Hz
Idle Out-traction Frequency > 1000Hz
In-traction Torque > 39.2mN. m(120Hz)
Self-positioning Tor > 34.3mN. m
insulated resistance > 50MΩ (500V)
insulated electricity power 600VAC/1mA/1s
Insulation grade A
Rise in Temperature < 40K(120Hz)
Noise < 35dB(120Hz, No load, 10cm)
Weight About 50g

ANLI LOCK INDUSTRY Co., Ltd Established in2013, locates in Shangrao city Jiangxi, Our company are near economic development zone, which makes the transportation very convenient.

During the past years, we are devoting to manufacturing Cross Carbarn Locks, Cam Lock, Brass Padlock, Electroplate Padlock, Squareness Brass Lock, Coin Open Lock, Password Lock etc.

We now have a work area of 5000 squre meters and advanced facilities. More than100 skilled workers are well trained to work, Every year they total exportation amount is 150-300 million dollars. We manufacture the accessories ourselves. Our market has expanded to Europe(Germany, Holland, Italy), North America(Canada, America), SouthAmerica(Brazil, Chile, Colambia, Santiago).

We stick to the goal of "Seeking the advanced technology, Creating the first-class brand. "It enhance its work efficiency and service by way of advanced technology and scientific management. All of our products are manufactured strictly in accordance with International standard. So we can ensure high quality of our products.

With the development of business, our products, guaranteed good quality, reasonable price, on-time dilivery and good & efficient services, has made all of our customers satisfactory.

Our objective is: Good faith management, quality first!

In order to have a good development, we hope to cooperated with any customers from all of the world, and have a good business relationship in the frture.
