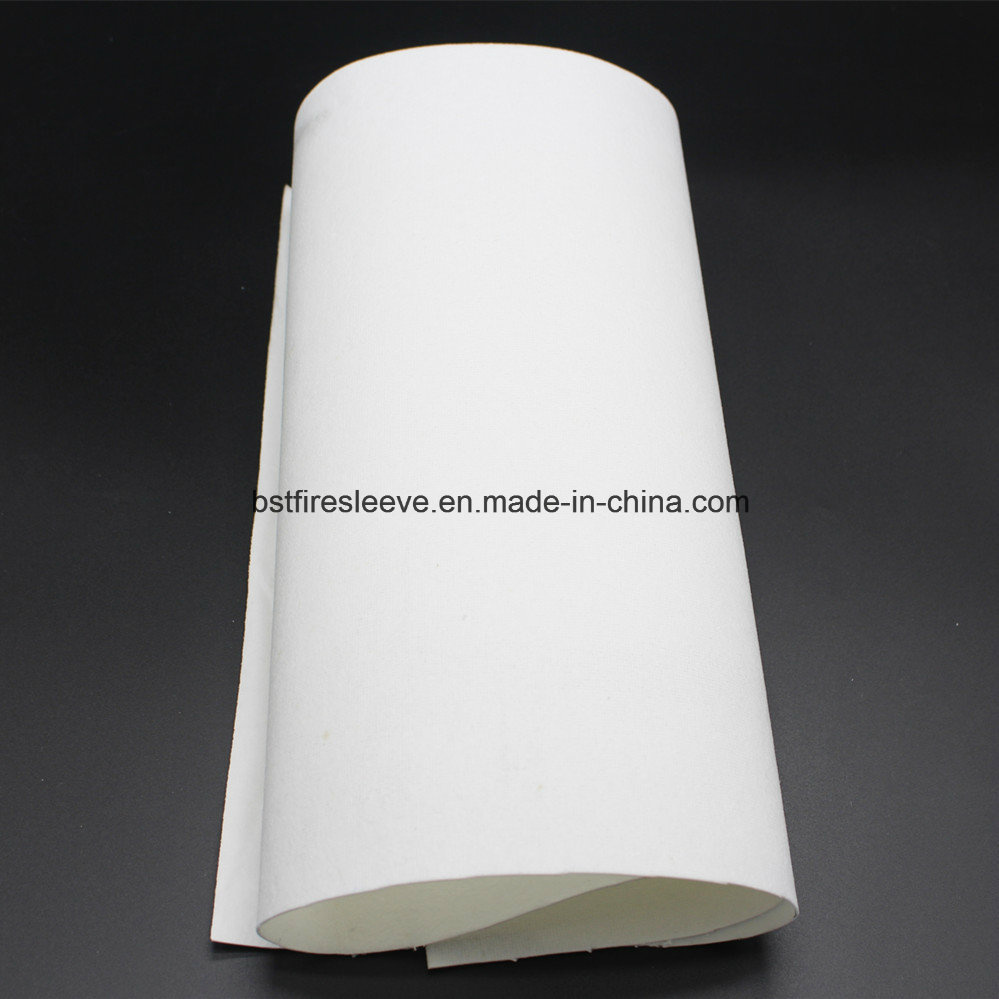

Refractory High Temperature Thermal Insulation Ceramic Fiber Paper
| Price: |
US $ 5/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
BST-CRP |
| Near Port: |
Shanghai, Ningbo |
| Application: |
Heat Insulation |
| Type: |
Insulation Paper |
| Chemistry: |
Organic Insulation |
| Material: |
Ceramic |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
Nm |
| Brand: |
Bstflex |
Product Description
Ceramic fiber paper is produced by high purity ceramic fiber and applied in the higher temperature heat insulation field. The advanced produce technology make the fiber in uniform distribution, also, the thickness of density are controlled strictly. In the production process, a few of binder is added with scientific selection and strictly controland the binder can be burning out in the application process. Ceramic fiber paper with high density is a kind of fiber paper with high strength which is manufactured according to customer's demand. It is with excellent heat insulation property and easy to construction. Also, the ceramic fiber paper is easy to future process (multilayer composite and cut). Ceramic fiber paper with excellent high temperature resistance and heat insulation performance and good melt infiltration resistance,so it is very suitable for using as off isolation casting gasket in building and glass industry.
Product characteristics
Low heat storage
Low thermal conductivity
Excellent electrical insulation property
Excellent machining process property
High strength, tear resistance
High flexibility
Low shot content
Typical applications
Industrial heat insulation, sealing and corrosion protection materials
Insulation and heat insulation materials used in instrument equipments and electric heating element
Heat insulation materials in automotive and aerospace industry
Expansion gap filler materials
Isolation materials in building, metallurgy and glass industry
Molten sealing gasket
Fireproof materials
| Item | Ceramic Fiber Paper |
| Density (kg/m3) | 200 |
| Classification Temp. ºC | 1260 |
| Working Temp. ºC | 1000 |
| Organic Content | <=10% |
| Loss of Ignition | <=10% |
| Tensile Strength (MPa) | >=0.3 |
| Thickness (mm) | 1,2,3,4,5,6 |
| Length (mm) | 40000,30000,,20000,15000,10000 |
| Width(mm) | 610, 1220 |
