| Prod Model: |
YY80-1SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Scope Of Application: |
Wide-Ranging |
| Safety Standards: |
Other |
| Output Power: |
135W |
| AC Voltage: |
230V |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Certification: |
CE&UL |
Product Description

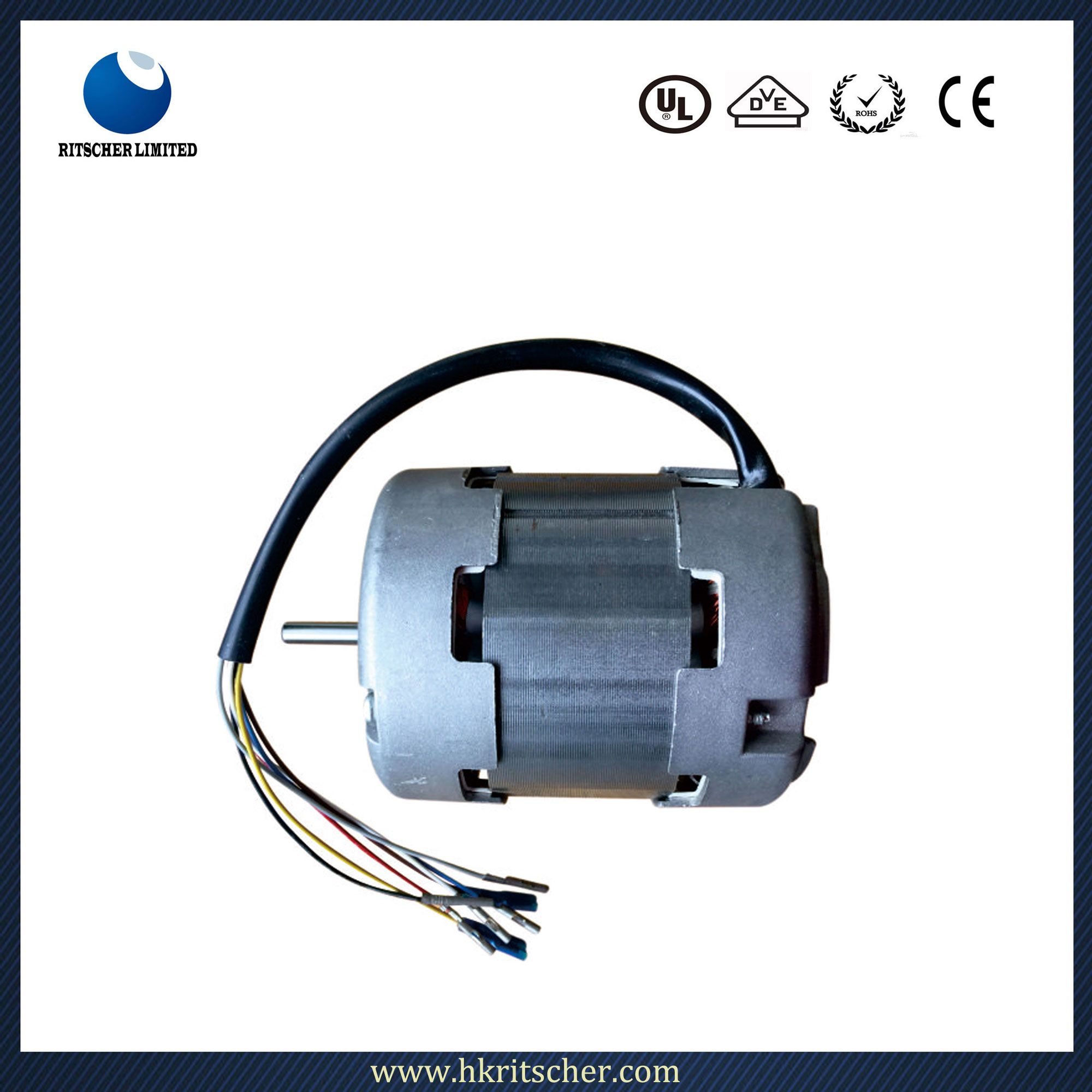

Company website: http://www.hkritscher.com/ Kitchen Hood Single Phase Motor
1.Kitchen Hood Single Phase Motor: Voltage/Current: 230V/0.77A
2. Kitchen Hood Single Phase Motor:Frequency: 50/60Hz
3. Kitchen Hood Single Phase Motor:Power: 135W
4.Kitchen Hood Single Phase Motor: Speed: 1750RMP~2900RMP

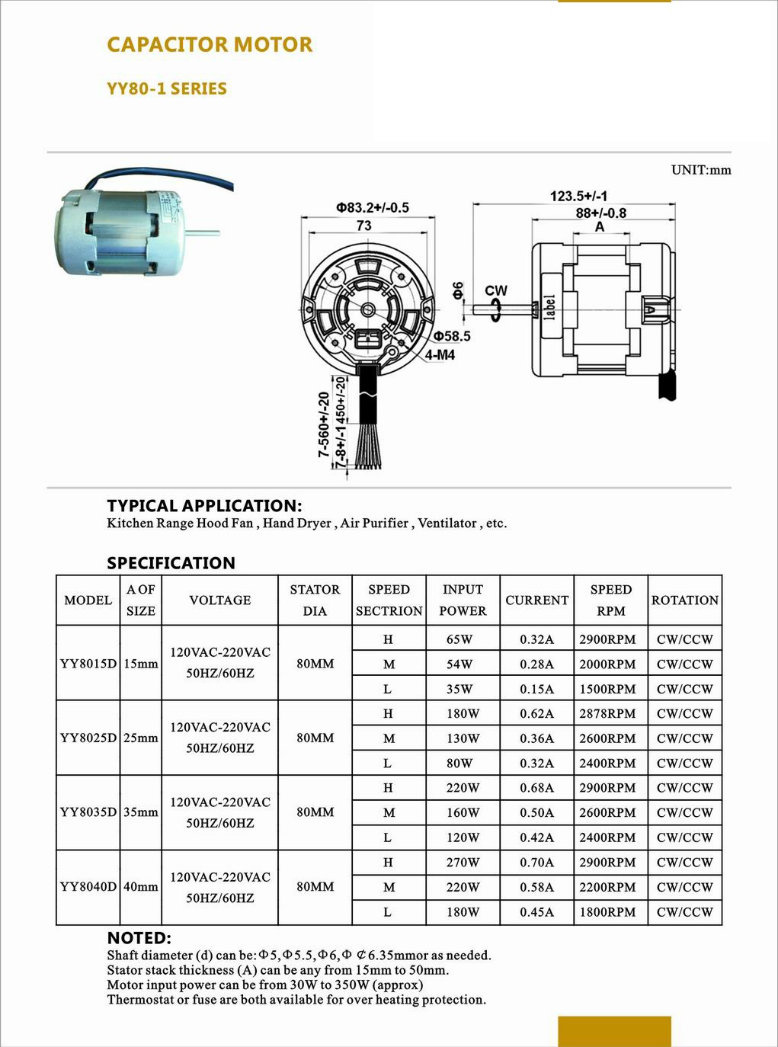

| MODEL | SIZE | VOLTAGE | STATOR DIA | SPEED SECTRION | INPUT | CURRENT | SPEED RPM | ROTATION |
| YY8015D | 15mm | 120VAC-220VAC
50HZ/60HZ | 80MM | H | 65W | 0.32A | 2900RPM | CW/CCW |
| M | 54W | 0.28A | 2000RPM | CW/CCW |
| L | 35W | 0.15A | 1500RPM | CW/CCW |
| YY8025D | 25mm | 120VAC-220VAC
50HZ/60HZ | 80MM | H | 180W | 0.62A | 2878RPM | CW/CCW |
| M | 130W | 0.36A | 2600RPM | CW/CCW |
| L | 80W | 0.32A | 2400RPM | CW/CCW |
| YY8035D | 35mm | 120VAC-220VAC
50HZ/60HZ | 80MM | H | 220W | 0.68A | 2900RPM | CW/CCW |
| M | 160W | 0.50A | 2600RPM | CW/CCW |
| L | 120W | 0.42A | 2400RPM | CW/CCW |
| YY8040D | 40mm | 120VAC-220VAC
50HZ/60HZ | 80MM | H | 270W | 0.70A | 2900RPM | CW/CCW |
| M | 220W | 0.58A | 2200RPM | CW/CCW |
| L | 180W | 0.45A | 1800RPM | CW/CCW |
