Refrigetation Air Dryer with Air Filters

Name: Refrigetation Air Dryer with Air Filters
Brand: all-electronics-online.com
SKU: 792911325
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HRS
Usage:	for Manufacture
Certification:	Ce
Cooling Method:	Direct Cooling
Condenser:	Copper Tube Air Cooed Type
Air Inlet And Outlet Pipe:	Dn150
Air Flow:	83m3/Min
Structure:	Air Flow Drier
Operational Method:	Continuous
Operation Pressure:	Atmospheric Dryer
Movement Way:	Fixed
Heating Mode:	No

Product Description

Item: Refrigeration Air Dryer
Model: HRS-750
MOQ: 1Set
Processed air volume: 83 cubic meter per min
Refrigerant types: R407C
Low cost. High efficiency.
Microcomputer automatic control
Multiple safety protection device

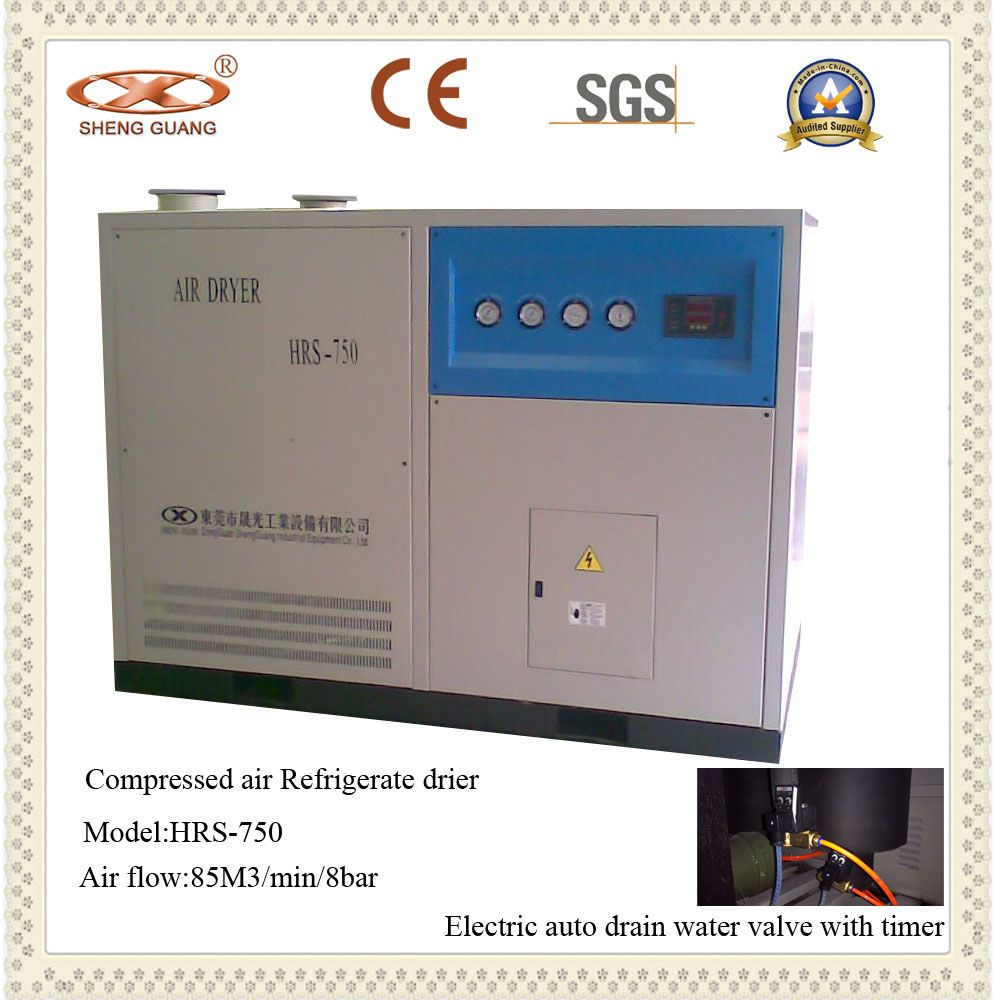

Refrigeration Air Dryer (water cooled):
Model: HRS-750
Adaptive air compressor: 750HP
Processed air volume: 83 cubic meter per min
Caliber of air inler and outlet: DN150
Application conditions: A. Inlet air temperature≤ 50 o C B. Ambient temperature≤ 40 o C C. Air pressure 8~16bar(Optional)
Dew-pointtemperature: 3 o C
Caliber of cooling water inlet and outlet: 2.5"
Cooling water m 3 /h: 14
Refrigerant types: R407C
Refrigerant compressor: 12.5HP
Power supply: 3phase. 380v/400v 50Hz/60Hz
Dimension: L*W*H: 200*120*152cm

Model	HRS-750
Air flow rate	83 M3/min/0.8Mpa
Refrigerant type	R407C
Control type	PLC Control
Air inlet and outlet pipe dia.	DN150
Condenser	Water cooled
