Reinforced Epoxy Glass Laminate (Hgw2372.2)

Prod Model:	Hgw2372.2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Size:	1020*1220mm,1020*2040mm,1220*2440mm
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	H 180
Maximum Voltage:	20KV~100KV
Brand:	Nova

Product Description

G11 is similar to G10, with the addition of a higher operating temperature
and improved mechanical strength at elevated temperature up to 180 Degree Celsius.

Applications:
Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

Advantages:
* G11 Temperature Index: 155 / 180 Degree Celsius
* Maximum operating temperature up to 200 degree Celsius
* Proof tracking index (CTI) 600V, halogen-free, and flame -resistance. (specific grade)
* Higher mechanical at elevated temperature.
* Excellent rigidity & dimensional stability
* Good dielectric properties
* Low water absorption

Specifications:
1) Grade: G11
2) Color: Brown; Yellowish;
3) Thickness range: 0.1mm~100mm
4) Sheet size: 1020*1220mm; 1020*2040mm; 1220*2440mm
5) Min. Order Quantity: 500 kgs in a lot


Basic information
Product name	Epoxy glass cloth laminates
	G11/FR5 Epoxy glass colth laminates
Item NO.	G11
Country of origin	Guangdong China
Brand	NOVA
Optional type	Sheet, Rod
Material	Epoxy resin and glass fiber cloth
Grade	Grade A
H. S code	39219090
Certificate	CE, Rosh, UL
Environment	Recyclable
Sample	For free, but customer pays the freight.
Similar products	G10/ G11/ Epoxy glass fiber sheet

Packaging & Shipping

• Pallet,wooden boxes or according to customer requirements
• Shipment By Express Such as Fedex,DHL,TNT and etc,Would take 3-5 days
• Shipment By Air would take 5-7 Days
• Shipment By Ocean(Sea) would take 18-30 Days

Technical Data sheet - G11



About Us:

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

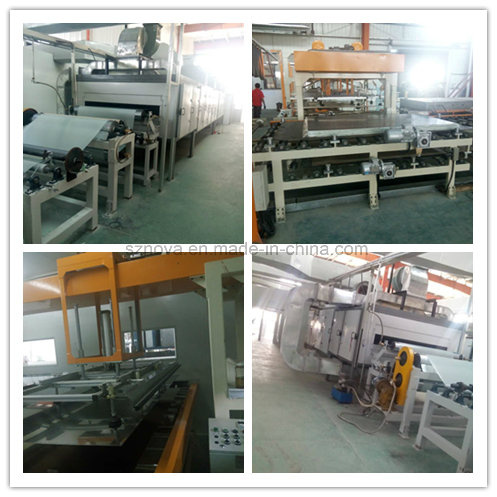

We can serve you not only customize the Epoxy Glass Fabric Laminated Sheet G11 (F Class) products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy Glass Fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.

We sincerely hope to be your long-term partner to develop new markets together,and create brilliant!
