| Prod Model: |
LGH/TCC |
| Environmental Certification: |
ISO14001 |
| Quality Certification: |
ISO9001 |
| Safety Certification: |
CQC03003095~3097 |
| Other Certification: |
RoHS |
| Material: |
Copper |
| Type: |
Choke Inductor |
| Structure: |
Inductive Choke |
| Brand: |
Liwang |
Product Description
Feature:
1.Lead free RoHS compliant
2.The current and inductance can be changeable according to customer's special request.
3.Primary competitive advantages:
a) Country of region
b) Small order accepted
c) Experienced technical staff
d) Pass the ISO9001, RoHS certification
4.Adopt the advanced magnetic ring and the PEW Oxygen free enamelled copper wire.
5.Customers from America , some countries of Europe and Asia have already established agreeable and mutual benefit business relationship with us and highly appreciate our professional and sincere service.
Applications:
Mainly used for common mode filter, current transformer, zero sedquence leakage protection switch transformer and other power supplies.
Be able to design and manufacture under customer's special request.
Mainly exported to Asia, America, Europe and Africa.
Details of inductor :

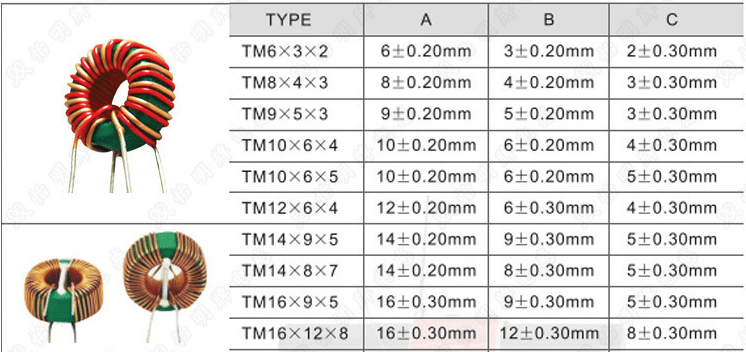

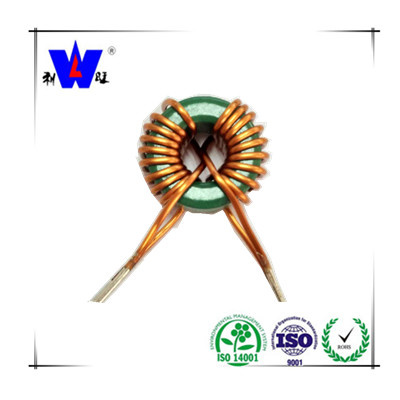

ferrite core toroidal inductor
| Toroidal Inductor Transformer Series |
| Model :OR8-OR102(inductance coil color:green, gray, red, yellow and white) |
| No. | Model | Outer diameter(mm) | inside diameter(mm) | High(mm) |
| 1 | OR8x5x3 | 8.0 | 5.0 | 3.0 |
| 2 | OR10x6x5 | 10.0 | 6.0 | 5.0 |
| 9 | OR12x6x4 | 12.0 | 6.0 | 4.0 |
| 11 | OR13x6x7 | 13.0 | 6.0 | 7.0 |
| 12 | OR13x7x5 | 13.0 | 7.0 | 5.0 |
| 13 | OR14x8x7 | 14.0 | 8.0 | 7.0 |
| 16 | OR16x8x5 | 16.0 | 8.0 | 5.0 |
| 17 | OR16x9x5 | 16.0 | 9.0 | 5.0 |
| 21 | OR18x10x10 | 18.0 | 10.0 | 10.0 |
| 23 | OR19x13x11 | 19.0 | 13.0 | 11.0 |
| 26 | OR20x12x10 | 20.0 | 12.0 | 10.0 |
| 27 | OR22x14x8 | 22.0 | 14.0 | 8.0 |
| 31 | OR25x15x12 | 25.0 | 15.0 | 12.0 |
| 36 | OR28x18x13 | 28.0 | 18.0 | 13.0 |
| 38 | Or29x19x15 | 29.0 | 19.0 | 15.0 |
| 39 | OR31x18x14 | 31.0 | 18.0 | 14.0 |
| 40 | OR31x19x13 | 31 | 19 | 13 |
| 44 | OR36x23x15 | 36 | 23 | 15 |
| 46 | OR38x19x13 | 38 | 19 | 13 |
| 47 | OR38x19x15 | 38 | 19 | 15 |
| 52 | OR40x23x20 | 40 | 23 | 20 |
| 53 | OR40x25x20 | 40 | 25 | 20 |
| 54 | OR42x26x18 | 42 | 26 | 18 |
| 55 | OR45x30x15 | 45 | 30 | 15 |
| 56 | OR47x27x15 | 47 | 27 | 15 |
| 57 | OR48x30x10 | 48 | 30 | 10 |
| 58 | OR48x30x15 | 48 | 30 | 15 |
| 60 | OR49x31x19 | 49 | 31 | 19 |
| 62 | OR50x25x20 | 50 | 25 | 20 |
| 63 | OR51x31x13 | 51 | 31 | 13 |
| 64 | OR56x32x18 | 56 | 32 | 18 |
| 66 | OR58x40x18 | 58 | 40 | 18 |
| 67 | OR60x38x20 | 60 | 38 | 20 |
| 70 | OR63x38x25 | 63 | 38 | 12.7 |
| 71 | OR68x44x15 | 68 | 44 | 15 |
| 72 | OR74x40x13 | 74 | 40 | 13 |
| 73 | OR80x50x20 | 80 | 50 | 20 |
| 74 | OR87x54x14 | 87 | 54 | 14 |
| 75 | OR87x54x30 | 87 | 54 | 30 |
| 76 | OR100x50x20 | 100 | 50 | 20 |
| 77 | OR102x66x15 | 102 | 66 | 15 |
Specifications
| Item Name | ISO Factory Good Price UL ROHS CQC Certified 1H Ferrite Toroidal Core Adjustable Coils Inductor |
| Model No. | CH-TC6826 |
| Components | Ferrite core, Copper wire;Basing;Shielding case |
| Core | NiZn/Iron /MnZn/MPP/Amorphous magnetic |
| Wire | Enameled copper wire-UEW/PEW |
| Functions | Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc |
| Mounting type | Surface mount ;Through hole ; Wire lead |
| Shape Types | Vertical;Horizontal;with/without base;shielded/unshielded ;SMD |
| Coil Structure | Toroidal |
| Working Frequency Range | 1KHZ-100MHZ |
| Inductance Range | 1uH-1H |
| DCR Range | unknown-Depend on customers' request |
| Storage Temperature | -20ºC to +85ºC |
| Working Temperature | -20ºC to +105ºC |
| Storage Humidity | 30% to 95% |

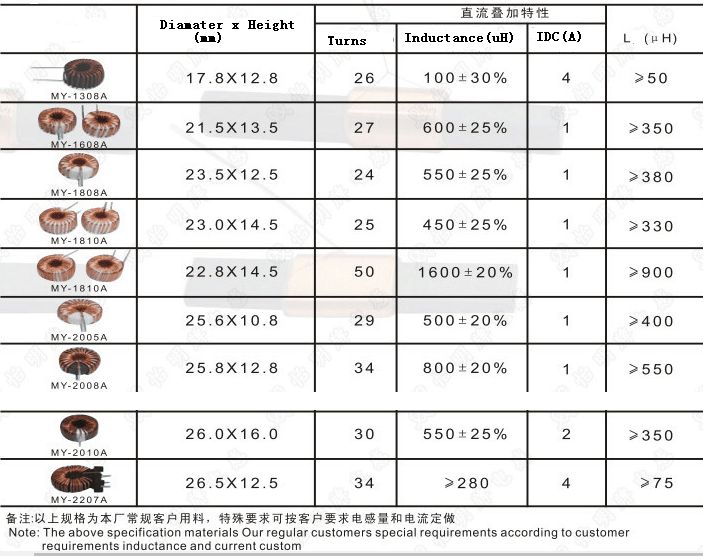

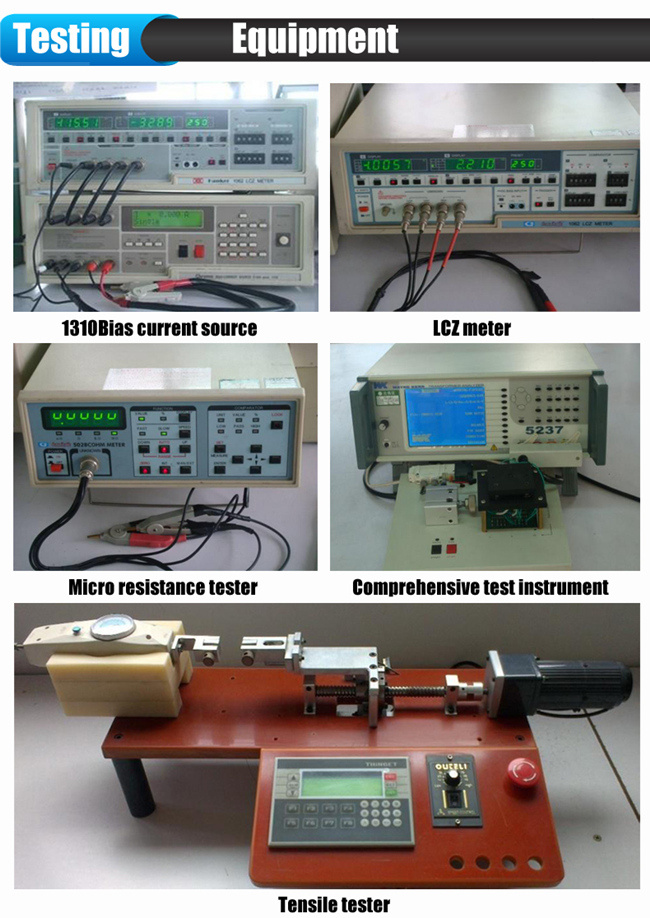

| Test Items | Ø Turns Ratio
Ø Inductance
Ø DC resistance test
Ø Safety test
Ø Current test
Ø Hi-POT |
| Certifications | ISO9001:2008, ISO14001:2008, |
| MOQ | 1000 pcs |
| OEM | Acceptable |
| Sample | Free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | about 15 days against deposit |
| Feature | 5 years warranty
High current High power High efficiency
Low temperature rise
Stable performance |
| Applications | 1. VCRS, Copy machine , Audio equipment , Game machines
2. TV sets, Microcomputer equipment, printers, Terminals
3. communications control equipment
4.Switching power supply, chargers, alarm system
5. UPS, VCD/DVD players, audio and visual equipment
6. OA machines, inverters, chargers, alarm system |
| Standard Package | 300pcs |
| Category | Inductors, Coils, Chokes |
| Family | Toroidal Inductor |
| Type | Ferrite Core inductor |
| Inductance | 100-1000uH |
| Current Rating | 1A-25A |
| Current - Saturation | 20A |
| Tolerance | ±20% |
| Material - Core | Ferrite core |
| Shielding | Unshielded |
| DC Resistance (DCR) | Customized |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Packaging | Bulk |
| Frequency - Test | 100kHz |
| Dynamic Catalog | CTX |
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

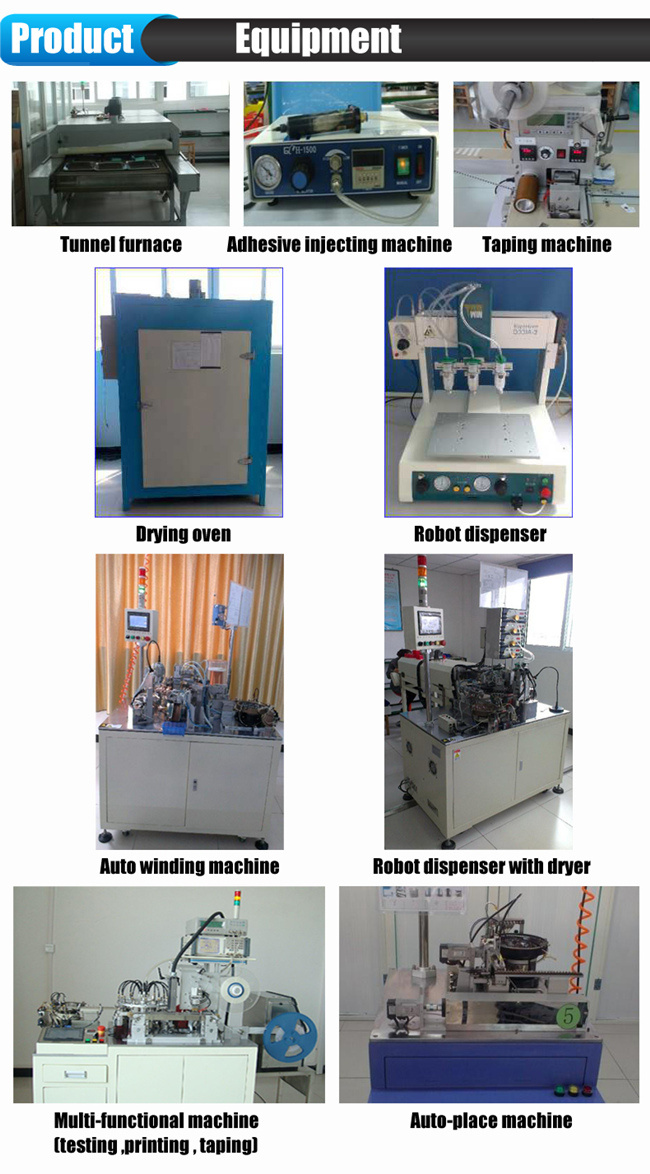

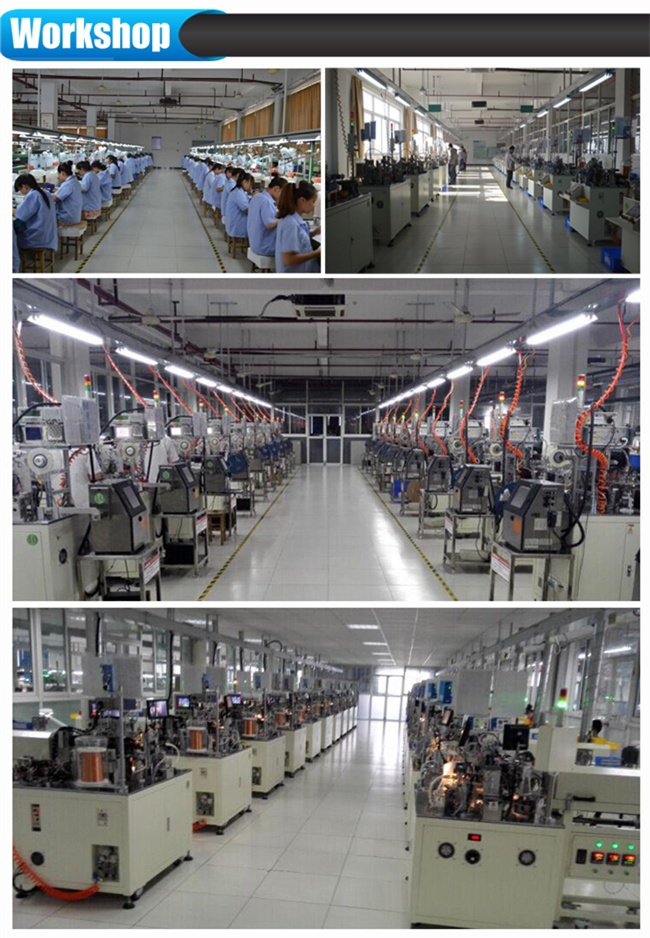

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
