Reliable Inner Hole 50mm Through Hole Slip Ring with Gigabit Ethernet Signal

Name: Reliable Inner Hole 50mm Through Hole Slip Ring with Gigabit Ethernet Signal
Brand: all-electronics-online.com
SKU: 805525075
Availability: InStock
Rating: 4.7 (103 reviews)

Price:	US $ 90/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTH50130-0520-06s
Operating Speed:	1000rpm
Circuit:	Gigabit Ethernet + Signal / Power
Contacting Material:	Gold to Gold
Temperature:	-40°c~+80°c
Power:	2A/5A/10A/15A Option
Cable:	Cat 6e + 22AWG
Option:	Dimension and Circuits
Life Span:	120,000,000 Rounds

Product Description

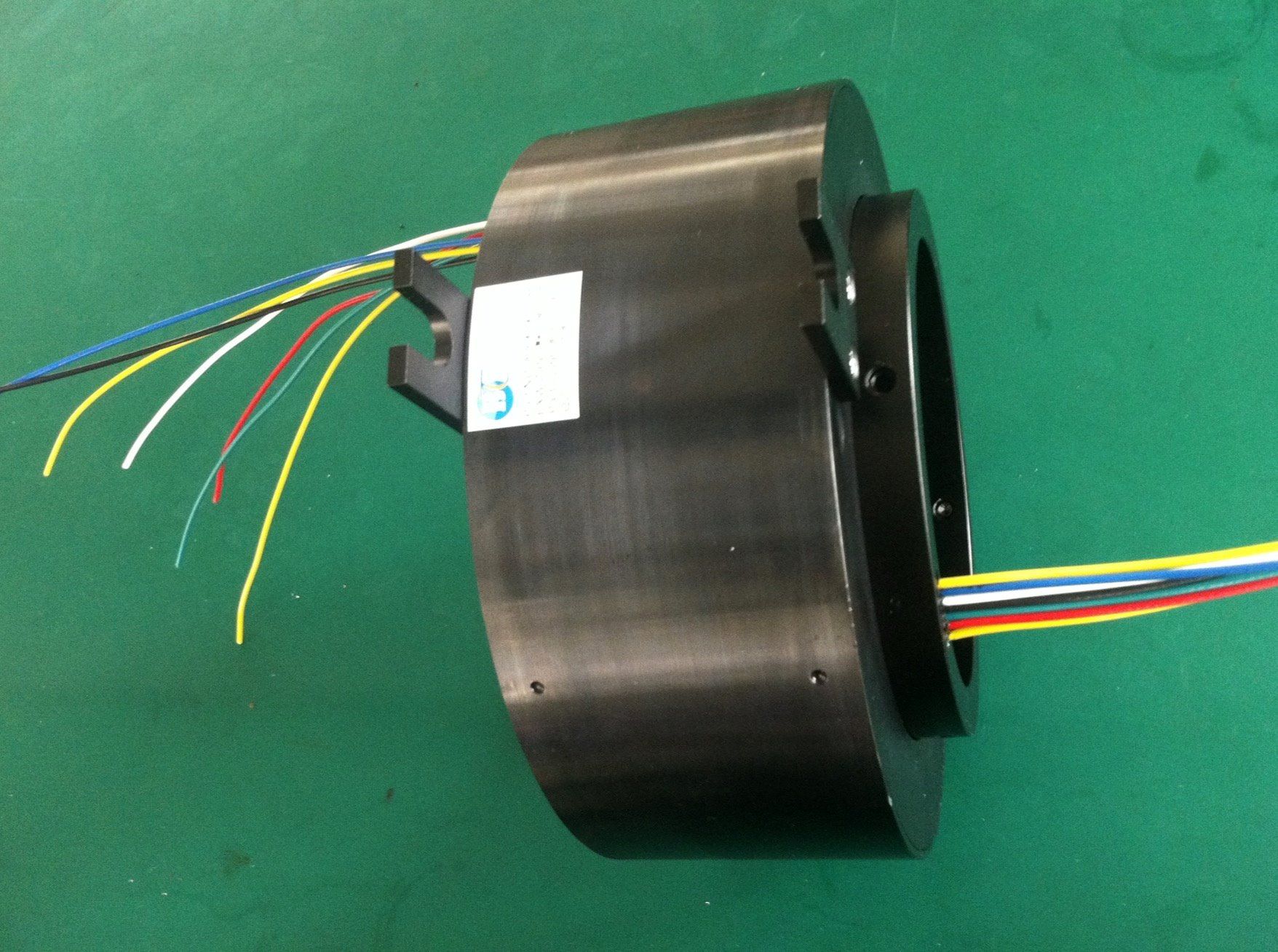

Through hole slip ring with Cat 6E signal

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and data from a stationary to a rotating structure.
ByTune's BTHE series slip ring is the most reliable slip rings in China market to transfer Gigabit ethernet signal, it provides 100BaseT or 1000BaseT Ethernet communication in combination with signal / power connections. The Ethernet cable is supplied terminated with a RJ45 jack.

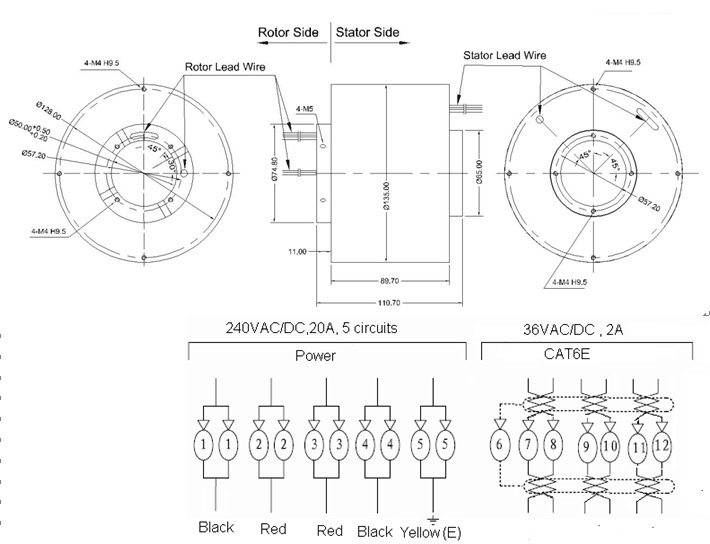

Note:
1. Drawings not actual size, dimensions are in millimeters
2. Rotor and stator leads exit 4 places, 90° apart, 12 leads per exit relative to circuit count
3. Flange mounting is options
4.Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature

Features of Gigabit Ethernet slip ring

2"(50.4mm) through-bore
Ethernet:100M/1000M baseT
BER(bit-error rate):10E-11
Insertion loss:2db
Supplied with 100BaseT or 1000BaseT Ethernet and 2/10 amp circuits

Options of Gigabit Ethernet slip ring

With inner hole or not
Dimension
Circuits
IP grade
Installation way

Typical Applications of Gigabit Ethernet slip ring

Video over Ethernet
Motor control
POE (Power-Over-Ethernet)
CCTV IP-surveillance
Satelite antenna

Benefit of ByTune's Gigabit Ethernet slip ring

Prompt delivery
Affordable price
reliable quality
Flexible dimension
Superior after-service

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
