| Prod Model: |
BTP60-1802 |
| Working Speed: |
100rpm |
| Circuits: |
2~36 |
| Current&Voltage: |
as Per Requested |
| Electric Noise: |
<0.007ohm |
| Ant-Vibration: |
Military Standard |
| Housing Material: |
Aluminum |
Product Description
Most Reliable Pancake Slip Ring From Chinese Factory with Flexible Solution

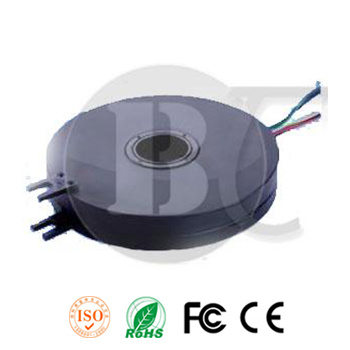

Thin and light enclosed Pancake Slip Ring with anti-vibrationA enclosed pancake slip ring has the conductors arranged on a flat disc as concentric rings centered on the rotating shaft. This configuration has greater weight and volume for the same circuits, greater capacitance and crosstalk, greater brush wear and more readily collects wear debris on its vertical axis. However, a pancake offers reduced axial length for the number of circuits, and so may be appropriate in some applications,
Enclosed pancake slip ring approach is used when length is at a premium but diameter is less restrictive. With the AL housing, it is more robust
and convenient for installation and improves the performance of Anti-shock and vibration!
Thin & light
2~36 wires
rotating smoothly
100rpm
anti-vibration
Small friction
Parameters:Thin and light enclosed Pancake Slip Ring with anti-vibration
Mechanical :
| Working speed | <=100rpm |
| Operating temperature | -40ºC~ +100ºC |
| Contact material | Precious metal |
| IP Grade | IP54 |
Electrical:| Circuit | <= 24 |
| Current | 2A,5A, 10A optional |
| Signal | Ethernet, Can-bus, RS485 ,USB |
| Voltage | ≤380V, 240V for signal |
| Dielectric strength | ≤1000V@50Hz between each circuit |
| Insulation resistance | 1000MΩ@ 500VDC |
| Electric noise | ≤7mΩ |
| Lead wire size | 22AWG, 17AWG,14AWG,UL, color Teflon, silver or tin plated |
| Lead wire length | 200mm |
Features of Thin and light enclosed Pancake Slip Ring with anti-vibration
Use while length at a premium but diameter less restrictive
Low noise
Wear-resisting
Signal and current compatible
Anti-shock and vibration
Alternatives Thin and light enclosed Pancake Slip Ring with anti-vibration
Circuits
Loading of each circuit
Dimension
Wire length
Installation way
Typical Applications Thin and light enclosed Pancake Slip Ring with anti-vibration
Aerospace aviation
Vehicle system
Exhibition equipment
Military instrument
Test equipment
Advantages of slip ring manufacturer---ByTune:
Quality guaranteed---1 year
Prompt delivery---1~2 week
Prompt customization---flexible solution
Affordable price---Most competitive among industry
Superior service---response within 24 hours considering time difference
Effective shipment---DHL, UPS, or FedEx
Certification Approved---ISO,CE,FCC,ROHS
