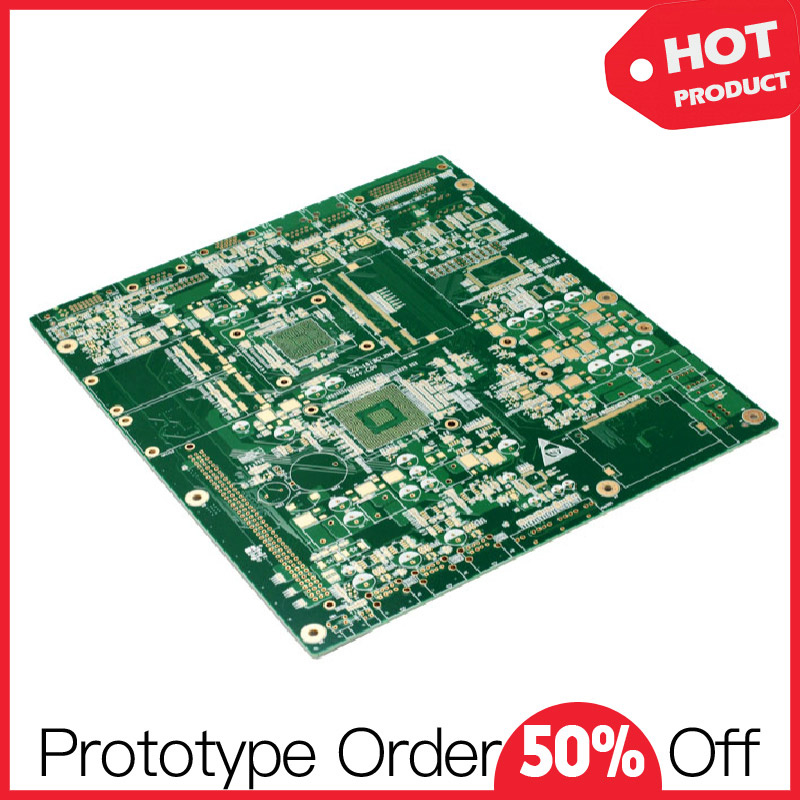

Reliable Professional PC Board Manufacturers
| Price: |
US $ 0.34-0.56/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
Product Description
Reliable Professional PC Board Manufacturers

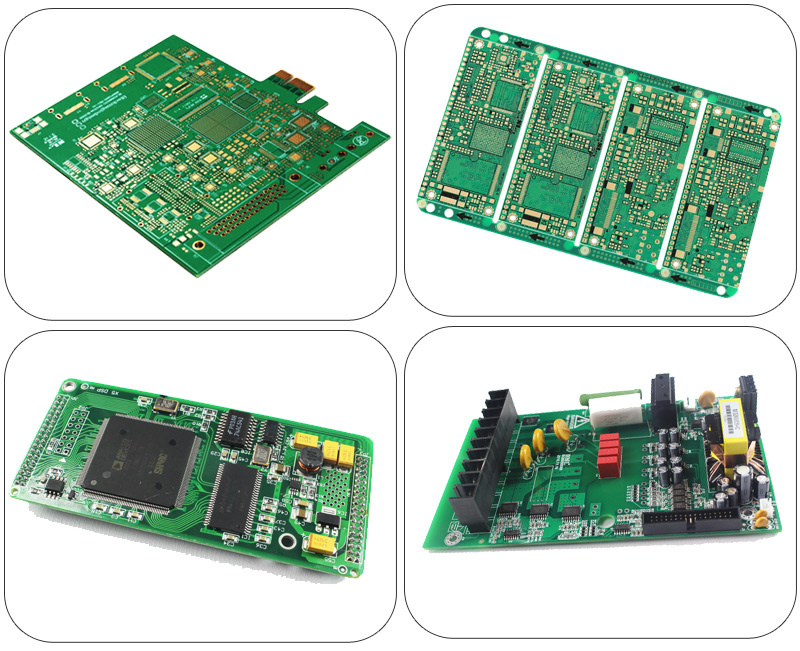

Products Display :
PC Board Manufacturers Technical Capabilities| NO | ITEM | Technical capabilities |
| 1 | Layers | 1-10 layers |
| 2 | Max.Board size | 2000×610mm |
| 3 | Min.Board Thickness | 2-layer 0.15mm |
| 4-layer 0.4mm |
| 6-layer 0.6mm |
| 8-layer 1.5mm |
| 10-layer 1.6-2.0mm |
| 4 | Min.line Width/Space | 0.1mm(4mil) |
| 5 | Max.Copper thickness | 10OZ |
| 6 | Min.S/M Pitch | 0.1mm(4mil) |
| 7 | Min.hole size | 0.2mm(8mil) |
| 8 | Hole dia.Tolerance(PTH) | ±0.05mm(2mil) |
| 9 | Hole dia.Tolerance(NPTH) | ±0.05mm(2mil) |
| 10 | Hole position deviation | ±0.05mm (2mil) |
| 11 | Outline tolerance | ±0.10mm (4mil) |
| 12 | Twist&Bent | 0.75% |
| 13 | Insulation Resistance | >1012 Ω Normal |
| 14 | Electric strength | >1.3kv/mm |
| 15 | S/M abrasion | >6H |
| 16 | Thermal stress | 288 ºC 10 Sec |
| 17 | Test Voltage | 50-300V |
| 18 | Min.blind/buried via | 0.2mm(6mil) |
| 19 | Surface Finished | HAL,ENIG,Imsn OSP,Plating AG,Plating gold |
| 20 | Materials | FR4,H-TG,Teflon,Rogers,Ceramics,Aluminum,Copper base |
PC Board Manufacturers Assembly Capabilities| SMT Assembly Capabilities | | |
| Turn Times | Selected Volume | Selected Solder Types |
| Same day through four weeks turns | No minimum order quantity | Leaded |
| Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| | Low cost first article builds | No-clean process available |
| Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
| Turnkey | Laser cut stainless steel | As small as .5mm pitch |
| Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
| Partial Turnkey | | |
| Assembly Types | Selected Component Types | Selected Other Capabilities |
| Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
| Thru-hole | As small as 0201 with design review | Repair/Rework services |
| Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
| Single or double sided placement | | Box Build/Electromechanical Assembly |
| | | Sub-assemblies |

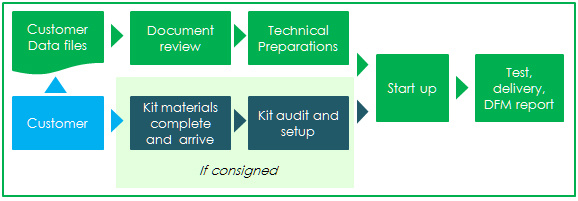

PC Board Manufacturers Assembly Process
About UsAs a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.Our services *EMS-Electronic Manufacturing Service*PCB Supply and Layout*PCB Assembly on SMT, BGA and DIP*Cost Effective Components Sourcing*Fast Turn Prototype and Mass Production*Box Build Assembly*Engineering Support*Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)*Logistics and After-sales ServiceIf you have any questions , feel free contact us any time.
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
