| Prod Model: |
NP40-12 |
| Norminal Capacity: |
40ah |
| Weight: |
12.5kg |
| Tech. Applied: |
VRLA, AGM |
| Delivery Detials: |
in 25 Days After Getting Deposit |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

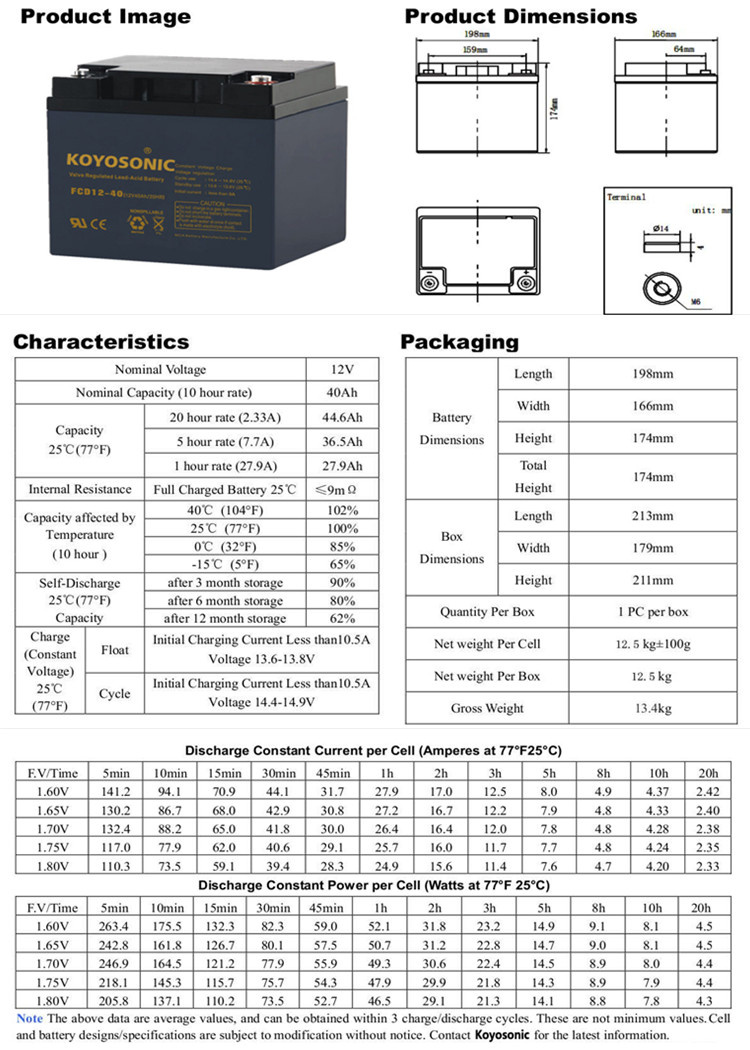

Parameters
Products DescriptionsNP series description
.With the latest advanced design of Qxygen Combination, Koyosonic has produced a new generation of Valve-Regulated Lead Acid Batteries based on a long history of more than 18 years in research and development. Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of MCA batteries, no need to check the specific gravity of the electrolyte or add water. A unique corrosion-resistant grid alloy ensures MCA batteries have long service life
NP series Applications
•Portable VTR/TV, tape recorders, radios, etc
•Power tools, Lawn mowers and vacuum cleaners
•Cameras and photographic equipment
•Computers, processors and other office automation equipments
•portable measuring quipments
•Various power toys and recreational equipment
•Emergency lighting equipment
•Fire Alarms and Security systems
•Robots, control equipment and other factory automation equipment
•Emergency power supplies in power generation plants and substations
•Telecommunications
Technical Features and Benefits
♦Sealed Battery system with recombination
Absolutely maintenance free
Safe application in closed compartments
♦Lead/Calcium alloy on positive and negative plates
Constant cold cranking performance over the entire service life
Minimal self discharge idea for seasonal applications
♦Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance
♦Long Service Life
A unique corrosion-resistant grid alloy ensures MCA batteries have long service life
♦Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
♦Safe and Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting
Battery Constructions:The Construction of a VRLA battery (all the batteries from our company belong to VRLA battery) is shown above. The following is the description of the different parts consisting of our batteries.
1. Plates (Electrodes)
Plate construction is the Key to produce a good battery. Recognizing this, Koyosonic utilizes the latest technology and equipment to cast grids from a lead-calcium alloy free of antimony. The small amount of calcium and tin in the grid alloy imparts strength to the plate and guarantees durability even in extensive cycle service. Lead oxide paste is added to the grid to form the electrically electrically active material. In the charged state, the negative plate paste is pure lead and that of the Positive lead oxide. Both of these are in a porous or spongy form to optimize surface area and thereby maximize capacity.
2. Separators
The separator is made of woven glass fiber cloth with high heat and oxidation resistance. The material further offers superior electrolyte absorption and retaining ability, as well as excellent ion conductivity.
3. Electrolyte
Immobilized dilute sulfuric acid: H2SO4
4. Container
Case material is a ABS, a high-impact proof plastic resin, Styrene, or a polypropylene-polyethylene polymer with resistance to chemicals and flammability. For 2V, 4V, 6V, 8V and 12V batteries, standard container is manufactured from ABS plastic resin (UL94HB). It is optional to use Flame Retardant ABS plastic resin (UL94V0). Each cell has 2v in voltage and 4v battery has 2 cells. 6v battery has 3 cells, 8v battery has 4 cells and 12V battery has 6 cells.
5. Terminals
Depending on the battery model, the terminals may be Fastern type, bolt-and-nut type, pressure-contact type, cable-and-connector type or other special types. Some are threaded-insertion type or bolt-and-nut type.
6. Relief Valve
In case of excessive gas pressure build-up inside the battery (usually caused by abnormal charging) the relief valve will open and relieve the pressure. The one-way valve ont only ensures that no air gets into the battery where the oxygen would react with the plates causing internal discharge, but also represents an important safety device in the event of excessive overcharge. Vent release pressure is between 2-6 PSI and the seal ring material is neoprene rubber.
7. Case sealing
The case sealing is tongue and groove with polyrethane, epoxy, or heat seal. The ABS plastic cover and container are sealed by a special epoxy made in Japan and is acid resistant.
Certificates:
FAQ:Q1:What's the MOQ?The Minimum order quantity is 100 pieces for each model.
Q2: How about the payment?A: Payment term is by T/T (30% deposit with order and 70% balance before shipment).
Q3: Can we change the color based on the original?A:Yes, the color can be customer-made according to your requirement.
Q4:What are kinds of battery will you provide? A:We can provide you VRLA batteries and Stating batteries.Vrla batteries include general batteries,High-rate batteries,deep-cycle batteries,long-life batteries,front-terminal batteries,gel batteries,solar batteries.Stating batteries include Maintenance free batteries and dry charge batteries
.Q5:Can you print my logo on the battery cover?A: Yes, OEM is available, you can offer your logo as you like.
Q6: Operating temperatureA: Discharge: -15--40C
Charge: 0--40C
Storage:-15--40C
Q7:How to maintain the battery?A:The battery should be stored in clean, dry, ventilated, dark environment when not using, keep it after full charge, recharge it every 3 months or 6 months.
Q8: How about the shippment?A: The goods will be exported by GUANGZHOU PORT or SHENZHEN PORT. And delivery time is in 20 days after getting deposit for your order.
Q9: If there are defective batteries in the warranty, what's your policy to replace them?Please take the photos of the broken batteries for us and tell us what happen, if everything is confirmed, the new ones will be sent to you as compensation in the next order.
Our Services:S1: Payment TermsT/T, L/C are the payment methods we accept at present.
S2: ShippingMaterial in stock can be produced 20days right away after pre-payment confirmation.
Delivery time is in 25 days after getting deposit. And the transportation time from China to Dubai is about 30 days arounf for LCL shipment.
S3: Important Information1. All our Battery following Internation standard, Have ISO14001 ,ISO09001 .CE, TUV,UL Certifications.
2. All Payment must be Koyosonic company account .
S4: Feedback1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us.
Contact Details:Steven JianTel: +86 20 34612480 Fax: +86 20 62619139
Mob: +86 17665678116
Web site: www.koyosonic.com
https://koyosonic.en.alibaba.com
Office Add: No. 602, 1# Shikong Building, Guangzhou South Railway Station, Guangzhou 511460, Guangdong, P.R.China
Factory Add: Duichuan Industrial Zone, Yanghe Town, Gaoming district, Foshan 528513, Guangdong, P.R.China
Koyosonic established in 1999, has been specialized in producing Lead-acid batteries, Li-ion batteries and Solar power system. As one of professional manufacturers in lead acid batteries, we have been devoted to research and development, manufacture and market to lead the users to have right batteries for their power system.
Our Lead-acid batteries include AGM batteries and Automotive batteries. AGM batteries are also called as VRLA AGM batteries, mainly including NP general batteries, NPC deep-cycle batteries, NPH High-rate batteries, NPL long-life batteries, NPF front-terminal batteries, NPM motive-power batteries, NPG/NPCG/NPMG/NPFG gel-tech batteries, NPS solar-power batteries, and OPzS & OPzV tubular batteries. For SLI batteries, we mainly have Car batteries and Motorcycle batteries. In 2009, we started to produce Li-ion batteries which mainly includes Cylindrical Cell and Polymer Cell. And we also have Li-ion Battery Pack and produce against custom design. To meet more requirement from some customers, we have built solar power system since 2012.
We have introduced advanced production and test equipments to produce lead acid batteries and so we can do much better in the battery fields as we are very strict in production management and we have first-class technology and unique directions for the batteries. We have more than 800 staff members among whom there are more than 50 professional technicians. This ensures our products are much better in performance and reliable in quality. We have gotten production license from National Quality and Technology Supervision Bureau and also we have gotten some international certificates such as UL, CE, TLC and ISO9001 & ISO14001.
In market, we mainly produced the batteries against OEM orders for some well-known international companies. Nowadays, we are going to market our own brand "Koyosonic" and welcome customers to visit us for more negotiation in our business cooperation.
