| Prod Model: |
G64 |
| Model Number: |
C120 Wireless Keyboard |
| Devices: |
PC, TV, Set-Top-Box, Android Smart TV, etc |
| Working Distance: |
10-20m |
| Operating Current: |
20mA |
| Communication: |
2.4 GHz |
| USB: |
USB2.0 |
| Weight: |
65g |
| Receiver Size: |
18.58*14.59*6.7mm(L*B*H) Mini Receiver |
| Product Size: |
151*45*14mm (L*B*H) |
| Indicator: |
2 LED Indicator |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
Product Description

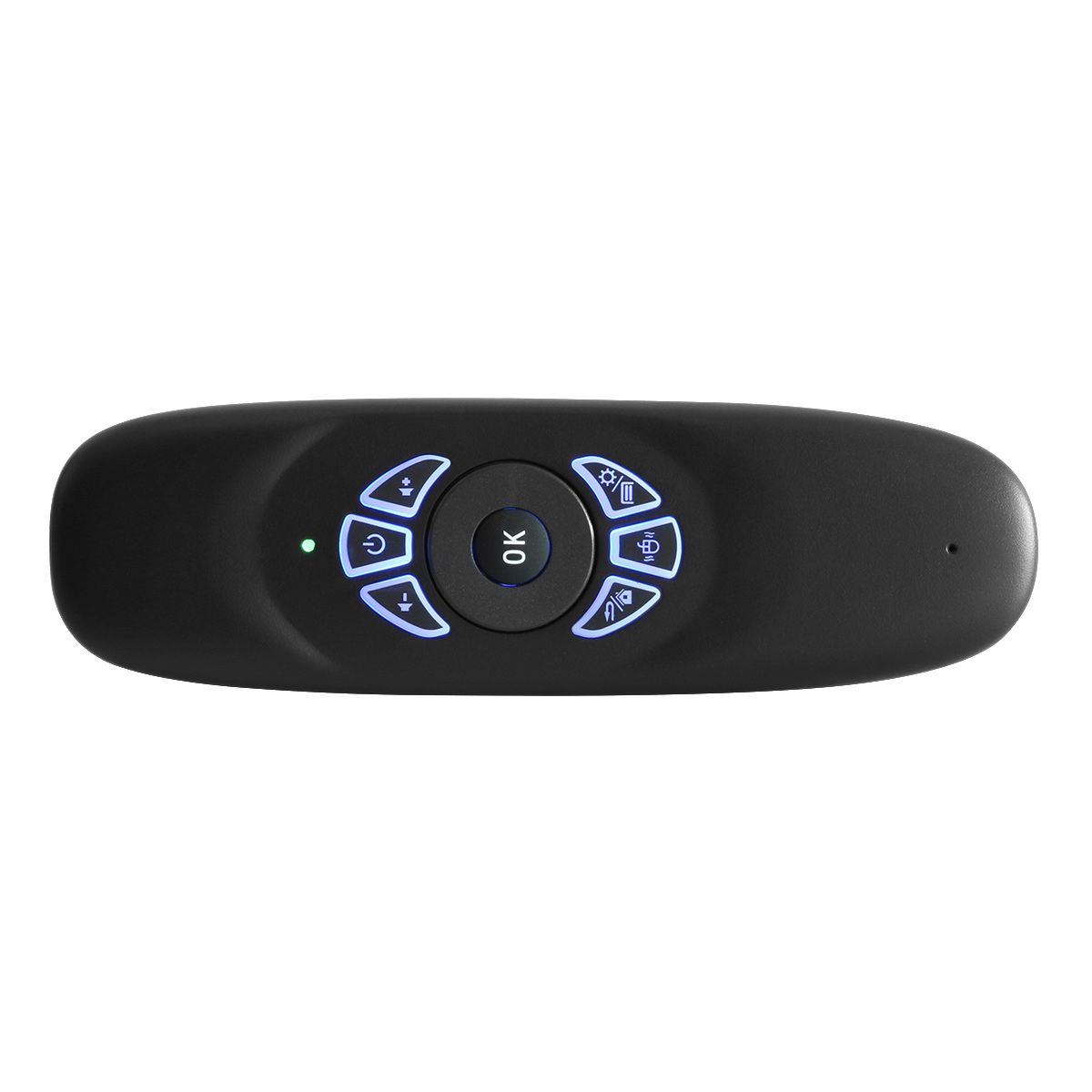

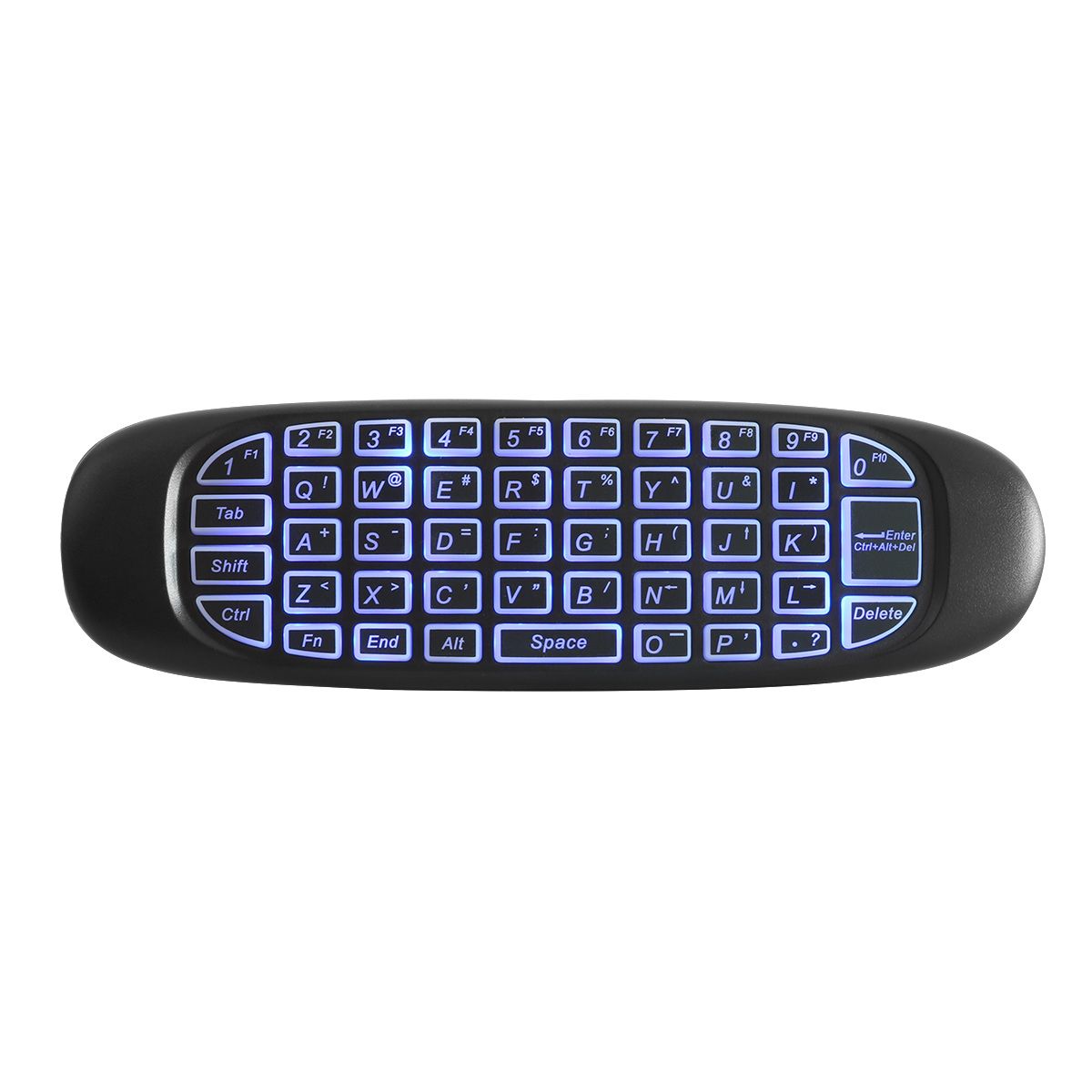

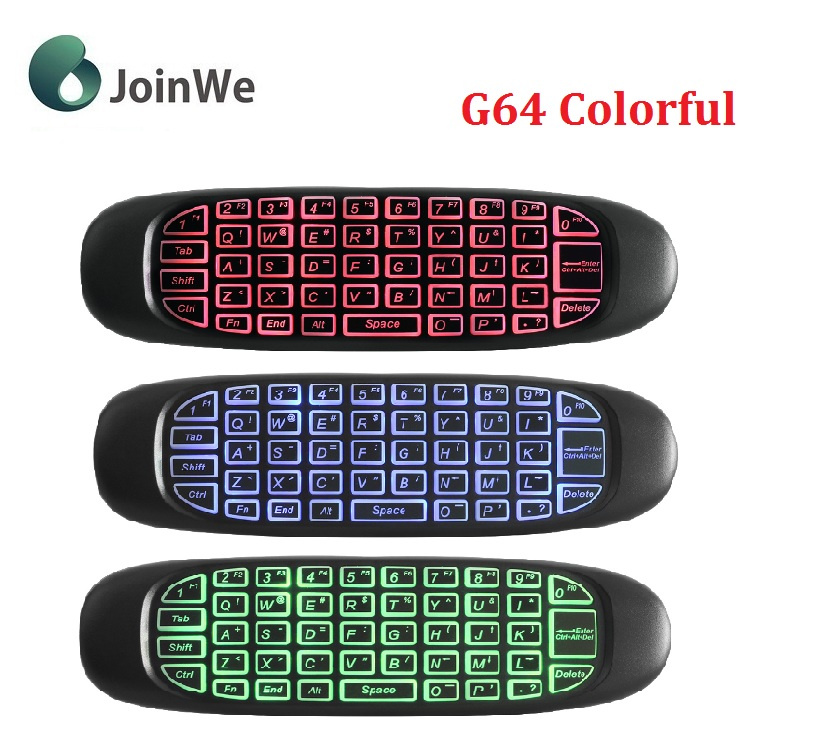

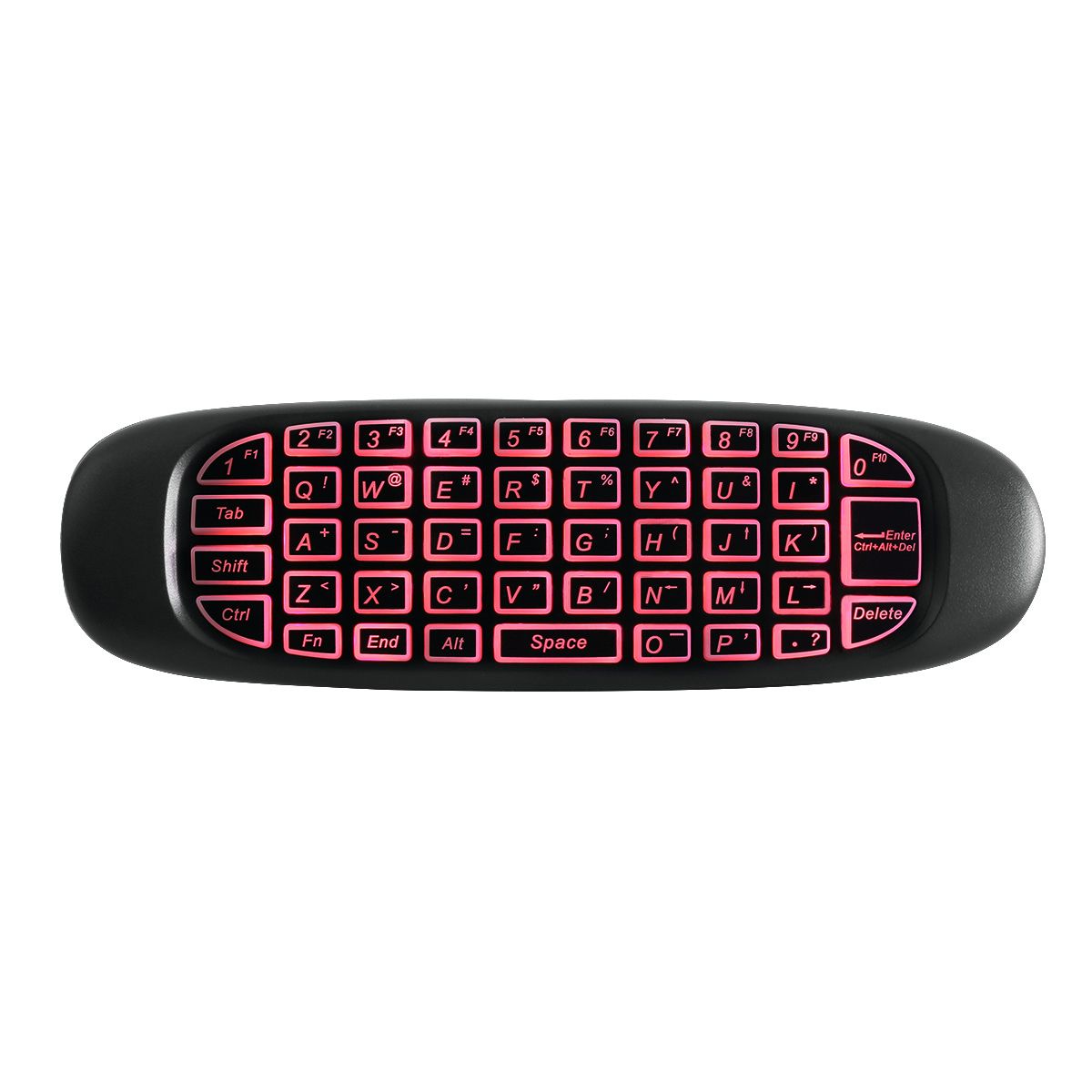

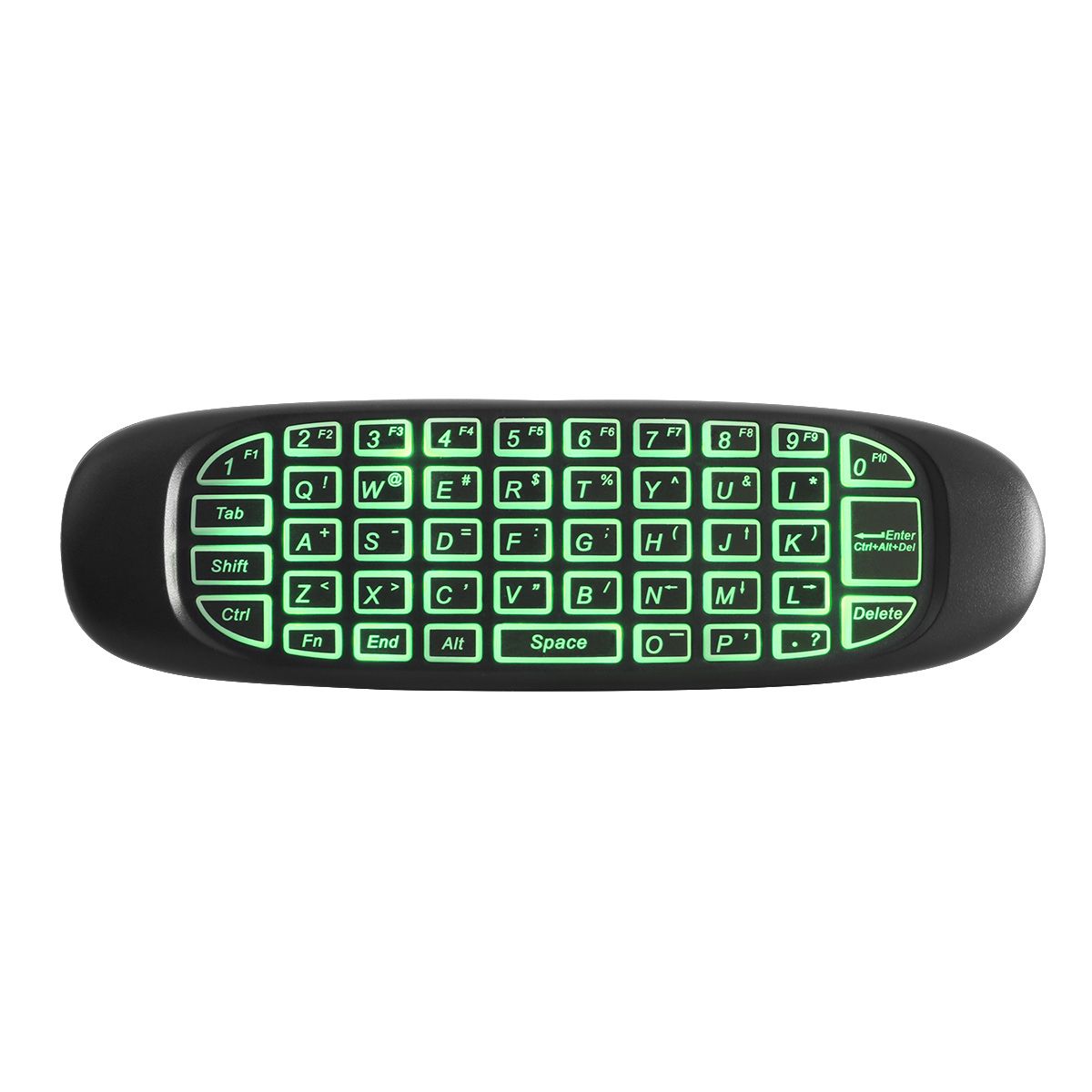

C120 Backlit Mini Wireless Keyboard Remote Controller Highlights 1.Perfect touch, classic double sided, full keyboard curve model-ling design;
2. Adopting low power consumption 2.4G wireless connection, with strong anti-disturbance ability, also with LED indicators to indicate the connection status;
3. Support low voltage work:3.6-4.2V;
4. With intelligent Anti-shake algorithm to make sure the mouse cursor stable and smooth;
5. In the dark environment, use the Back-light function to illuminate the keyboard characters.
Product Description| No | Function | Code |
| 1 | The mouse Turn ON/ OFF | Turn on/off the mouse, default is on. |
| 2 | Home | Multimedia Home(Android system)
Long press for 2 seconds to return to the home page |
| 3 | Mouse_R,
Back | Mouse Right Click
Back(Android System) |
| 4 | Menu | Multimedia Menu |
| 5 | Back-light ON/OFF | Long press for 3 seconds turn ON / OFF |
| 6 | Mouse_L | Mouse Left Click
Enter(when mouse mode is off) |
| 7 | Right | Keyboard Right |
| 8 | Left | Keyboard Left |
| 9 | Down | Keyboard Down |
| 10 | Up | Keyboard Up |
| 11 | Volume + | Multimedia Volume + |
| 12 | Volume - | Multimedia Volume- |
| 13 | Power ON/OFF | Turn on/off |
| 14 | Fn | Press and hold "Fn",
to top right corner Characters input |
Specification
| Acceleration Sensor | 3 axes gyroscope |
| Gyro-sensor | 3 axes g-sensor |
| Communication | 2.4 Ghz |
| Working Distance | 10-20m |
| Frequency | 2.400-2.483Ghz |
| Working Current | <10mA (The voltage for recording status is about 18mA) |
| Standby Current | <30uA |
| Battery | Rechargeable lithium battery |
| Indicator | 2 LED indicator |
| Product Size | 151*45*14mm (L*B*H) |
| Receiver Size | 18.58*14.59*6.7mm(L*B*H) mini receiver |
| Weight | 65g |
| USB | USB2.0 |
| System | Compatible for Windows, Mac OS, Linux, Android |
Pairing
Warning: This operation may disconnect the original paired connection, please operate with Cautions.
1. Plug in the USB dongle receiver, keep the distance between the remote control and the PC with in 10cm. And make sure there is no remote control and receiver connection.
2. Press the "Vol -" and "Vol +"keys, the green indicator stop blinking.
3. When the green light goes off,pairing succeeds.
Note: If the Pairing do not succeeds, you need to re-operate.
Sleep and wake up
1. In order to prolong lifespan of the battery, when the remote controller is stationary for more than 20 seconds, it will turn into hibernation mode. Press any key to wake up the remote controller.
2. When the low voltage (red light 2Hz slow flashing) is detected, it will sleep after 20 seconds.
