Remote Control, Garage Door Receiver Replacement 2 and 4 Channels

Name: Remote Control, Garage Door Receiver Replacement 2 and 4 Channels
Brand: all-electronics-online.com
SKU: 688716541
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	US $ 14.25-14.75/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QN-Kit01
Frequency:	Customized 315MHz, 433.92MHz,
Receive Frequency:	433.92MHz
Application:	Automatic Doors
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	>100m
Material:	Plastic
Voltage:	9~24 V

Product Description

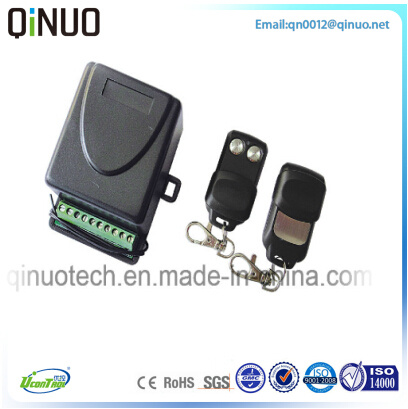

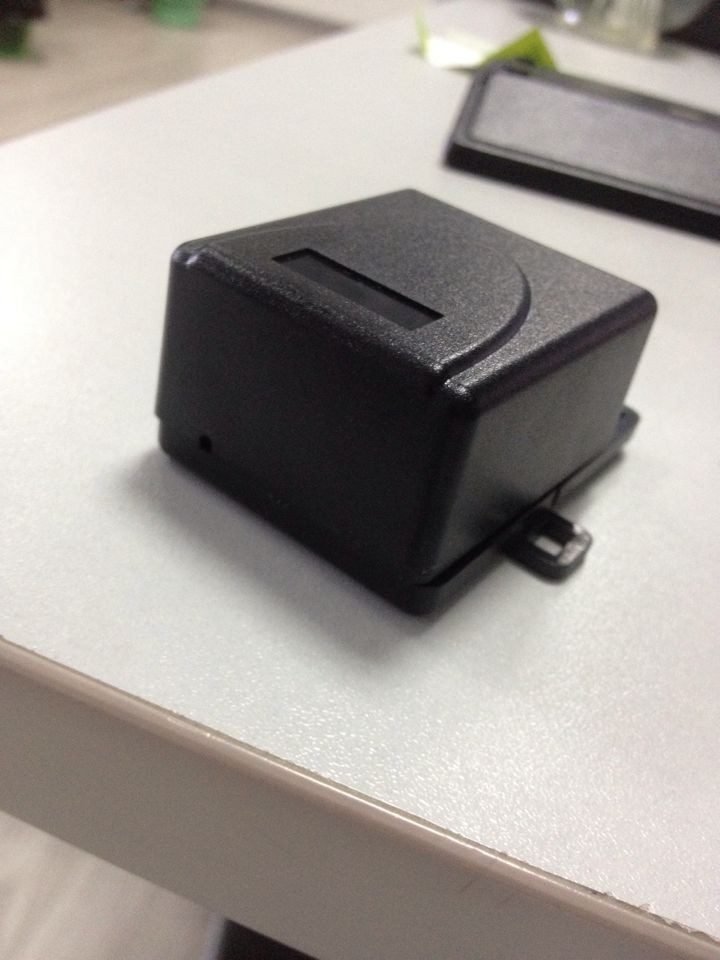

Garage Door Receiver QN-Kit01

Basic Info

Model NO.:	QN-Kit01
Certification:	SGS, CE, ISO, FCC, RoHS
Receive Frequency:	433.92MHz
Trademark:	Ucontrol
Usage:	Door
Origin:	China
Channel:	4
Frequency:	Customized 315MHz, 433.92MHz, 868MHz
Specification:	CE
HS Code:	85269200

Complete set of Receiver and Transmitter for garage door/automatic door/ Home alarm

The complete set of receiver and remote are used for the garage door sliding door gate.

Biggest load current on relay 12A 14 VDC or 7A 120 VAC

PROGRAMMING:
Press the P1:
-1time to program R1 in monostable mode
-2times to program R2 in monostable mode
-3times to program R2 in bistable mode
-4times to program R2 in bistable mode
Hold down the key of the radio remote control that you would like to acquire until the LED blinks

ERASING:
There are two ways of erasing
1. Erasing a single code:
Press P2 for about two seconds
(release the key) the LED will light up, press the key on the radio remote control that you want to delete.
2. Erasing all codes acquired:
Press P2 until the LED turns on (about 8 seconds)

Poly Bag, Blister, Paper Box, according to customer's requirements...

DHL, FEDEX, UPS... according to customer's requirement.

Accept OEM, ODM service. About product, 2 years guarantee for our customer. Any questions, do not hesitate to contact us.
