| Prod Model: |
KA-DP02R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Microwave Type: |
Hf System: 5.8GHz Cw Radar, ISM Band |
| Warranty: |
Two Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Delivery Time: |
Within 20 Days |
| Usage: |
All Kinds of Lamps |
| Type: |
Microwave Sensor Switch |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse, Garage, Toilets etc. |
| Principle: |
Microwave Radar Motion Sensor |
Product Description
KA-DP02R Remote Control Microwave Sensor With Remote Control Specifictation:1) Power source: 220-240V/AC
2) Power frequency: 50/60Hz
3) Rated load: 1200W Max. (220VAC tungsten cosφ =1)
150W Max. (220VAC fluorescent cosφ =0.5)
4) Installation height: 2.5~3.5m (ceiling mounting)
5) HF system: 5.8GHz CW electric wave, ISM band
6) Transmission power: <0.2mW
7) Detection angle: 360°
8) Detection range: 1.5-8m(radii. )(adjustable)
9) Detection motion speed: 0.5~1.2m/s
10) Time setting: 8sec to 12min (adjustable)
11) Light-control: 10~>1000LUX (adjustable)
12) Standby power: Approx. 0.9W
13) Working temperature: -15° C~+70° C
Remote Control Specification:1) Power source: DC3V(Button battery CR2032)
2) Static current: <1uA
3) Emission current: 16mA± 1 mA
4) Remote control distance: >10m
KA-DP02R Function:It can be installed inside of product that is made of glass and plastic because that these materials make little effect to microwave. Connect the product as shows below; You can change a common light to an automatic light.
Remote Control Function:
AUTO="AUTO"mode, enable the sensor to detect
ON= Always on, about six hours later turn to "AUTO"mode
OFF= Always off, about six hours later turn to "AUTO"mode
1) LUX: When luminance is less than 10 LUX, enable the light to power on, for the use at night. When luminance is less than 50 LUX, enable the light to power on, for the use when ambient luminance is not enough. When luminance is more than 1000 LUX, enable the light to power on, for the use when it is in the daytime.
2) TIME: Adjust time-delay of load work. The time delay is about 8s when turn in to 8s. The time delay is about 12min when turn in to 12min.
3) SENS: Detection distance: Two meters; It is an approximate value which will change according to detection object's size. Detection distance: Six meters; It is an approximate value which will change according to detection object's size. Detection distance: Maximum; It is an approximate value which will change according to detection object's size.

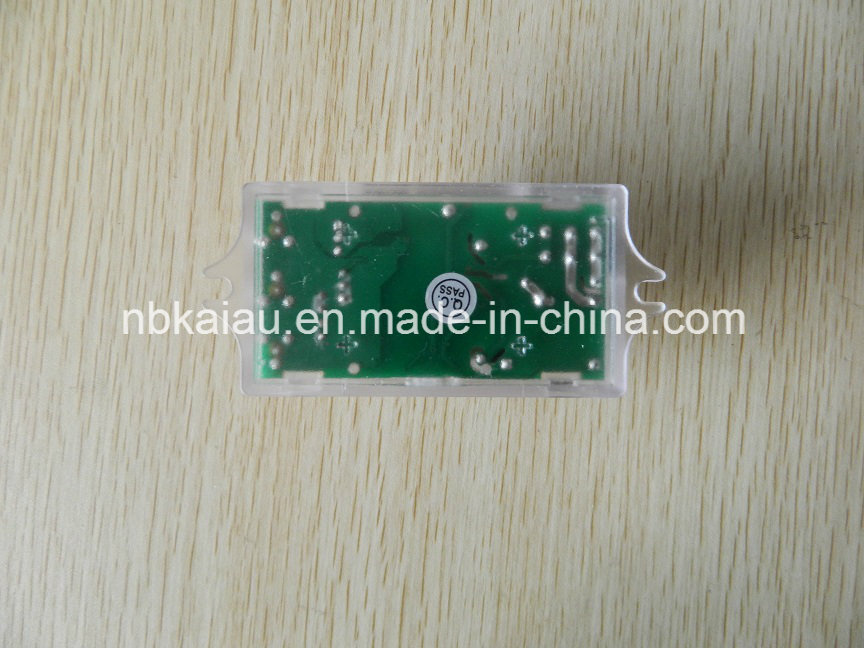

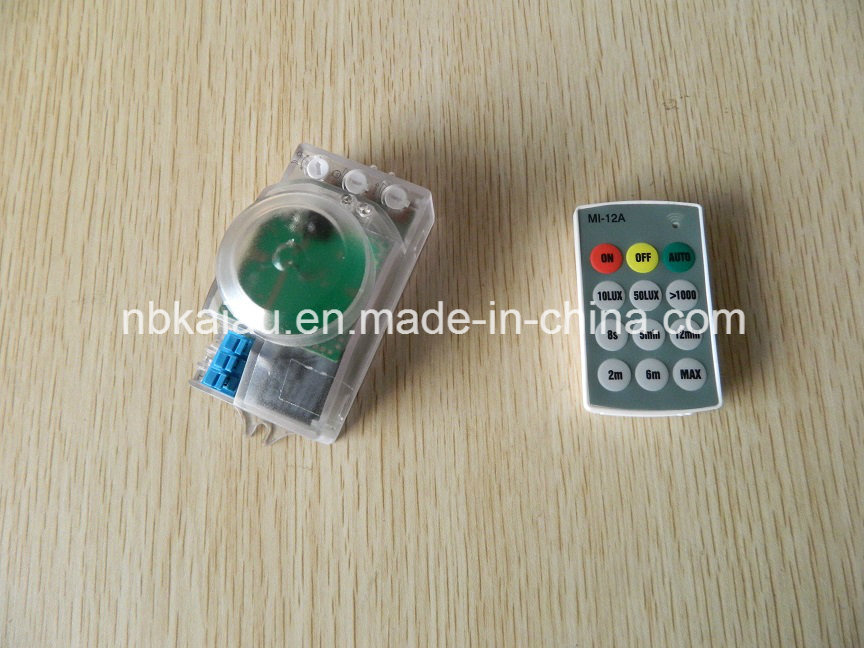

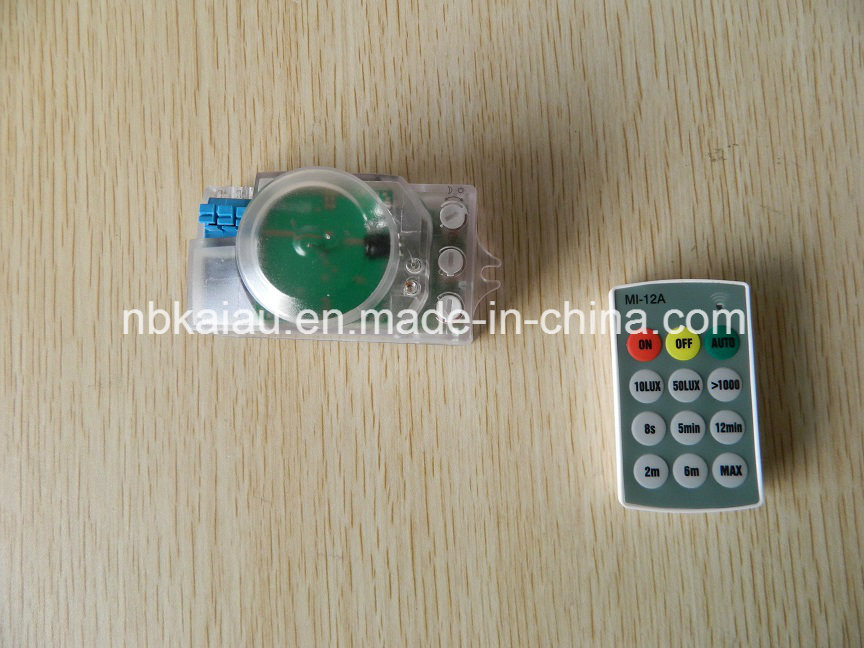

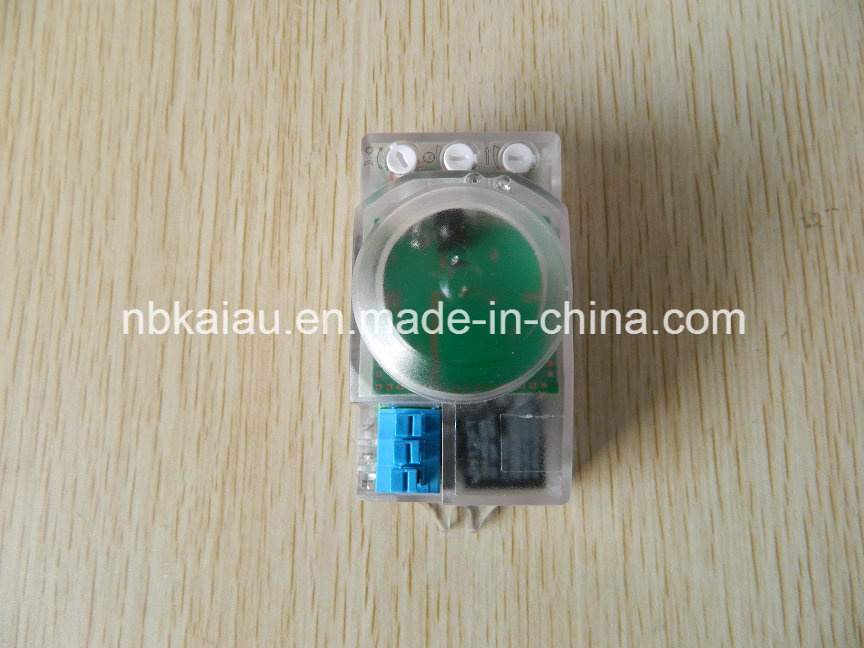

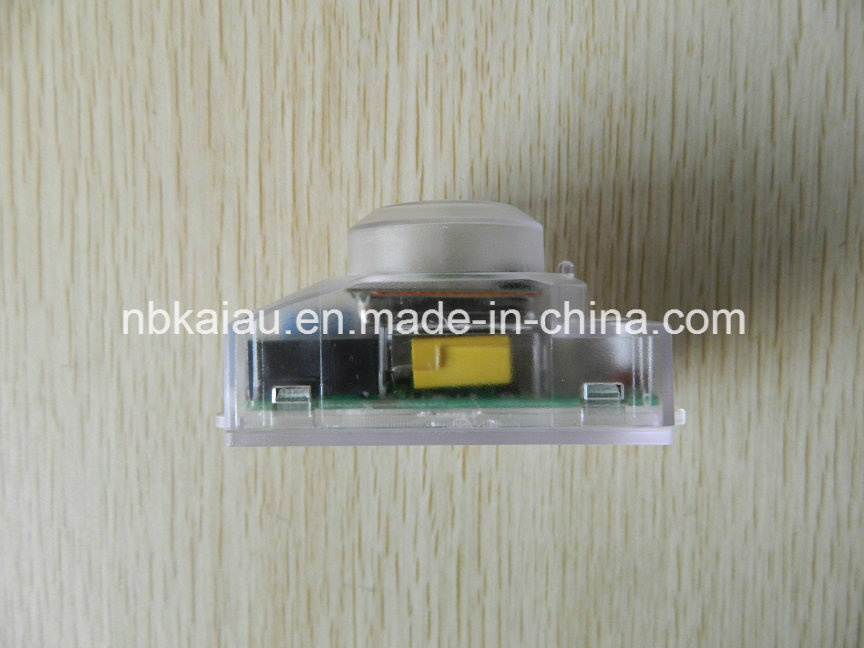

KA-DP02R Actual photos:
