Remote Engin Control GPS Tracker with Fuel Monitoring and Temperature Monitorng
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
OCT600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
+9V-35V/1.5A |
| Backup Battery: |
850mAh |
| Dimension: |
115mmx 60mm X 21mm |
| Weight: |
145g |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| Operating Temperature: |
-20°-55° |
| Interface: |
2 Input and 1 Output |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Chip: |
SiRF |
| Model: |
Oner Oct600 |
| Screen Size: |
Without |
| Carrier Frequency: |
GSM850/900/1800/1900MHz |
| Certification: |
Ce, RoHS, FCC |
Product Description

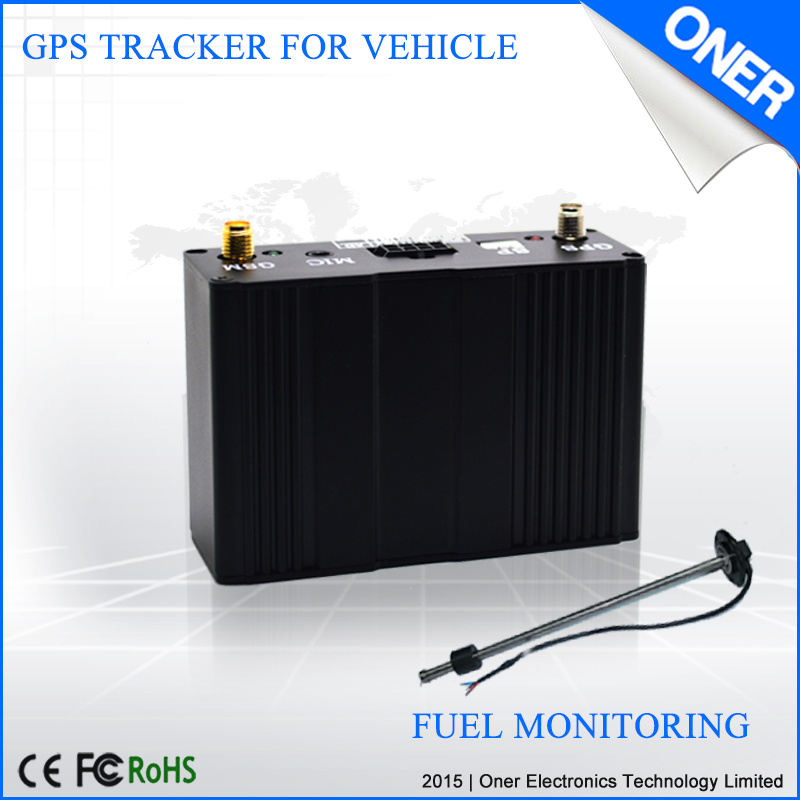

OCT600 is a GPS tracking device that utilizes the latest GPS, and Cellular technologies to provide
the location, direction, speed and history of your vehicle. You can track your devices and manage
your account via the website.
This device is cost-effect, and highly recommended to use in fleet management, vehicle tracking,
security, logistic and rental service companies, with its imported module, supports funcion exteni-
ons, like fuel monitoring, Firmware update OTA, etc, it is helpful in fleet management and security.
Advantage
1.Support working in the vehicles with different voltage range(6V to +36V);
2.High Adaptablility,be able to work well in severe environment of high temperature;
3.Intelligent charging circuit,avoid battery with the low level issue and bloated because of long time working; ensure the battry
working for long time with good quality.
4.Circuit protection Design; protect device from damage of electron ,also can avoid damage from wrong wire conenction;
5.High-performance CPU with ability of big data dealine
6.Huge Data storing and exporting; Support storing data over 6 months in the devices ,and generating report for vehicle management
7.Firmware update over the air; Support function updating over the air, you can add functions your clients any time;
8.Working time management
Improve effective of your fleet,no complaint of over time working from your staff
9.Tracking by SMS APP
Install the APP in the mobile phone , no need to remember the opeerate commands list , just need to click the buttom of the APP ,
then it can working.
10.Intelligent vehicle control
All comtrols to vehicle in hands, no need to know any complicate operation.
Main Feacture
1.Tracking via SMS or GPRS or LBS |
| 2.Living location report |
| 3.Tracking by time interval/distance |
| 4.Geo-fencing control and alarm |
| 5.Speeding alert |
| 6.Get detail address via SMS directly |
| 7.External power cut alert |
| 8.GOOGLE MAP link for location via SMS and call |
| 9. Remote engine/fuel cut |
| 10. ACC Detection |
| 11. SOS panic button,emergency alarm |
| 12. 2 ways communication (option) |
| 13. Mileage calculation report |
| 14. Fuel monitoring (option) |
| 15. Firmware updating OTA |
| 16. Voice monitoring ( option) ) |
| 17. Speed limitation |
| 18. Data recording (SD card, option) |
| 19. Voice reminder(option) |
| 20. working time setting |
| 21. Sim card balance inquiry |
Technical Specification
Item |
Specification |
Power Supply |
+9V - +35V / 1.5A |
Backup Battery |
850mAh |
Dimension |
115mmx 60mm x 21mm |
Installation Dimension |
115mmx 79mm x 21mm |
Weight |
145g |
Operating temperature |
-20° to 55° C |
Humidity |
5% to 95% Non-condensing |
Frequency |
GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz (optional) |
GPS Chipset |
latest GPS SIRF-Star III chipset |
GPS Sensitivity |
-158Db |
GPS Frequency |
L1, 1575.42 MHz |
C/A Code |
1.023 MHz chip rate |
Channels |
20 channel all-in-view tracking |
Position Accuracy |
10 m, 2D RMS |
Velocity Accuracy |
0.1 m/s |
Time Accuracy |
1 us synchronized to GPS time |
Default datum |
WGS-84 |
Reacquisition |
0.1 sec., average |
Hot start |
1 sec., average |
Warm start |
38 sec., average |
Cold start |
42 sec., average |
Altitude Limit |
18, 000 m(60, 000 feet) max. |
Velocity Limit |
515 m/second (1000 knots) max. |
LED |
1 LED light to show working status. |
Button |
One SOS button |
Interface |
2 input and 1 output |
