| Prod Model: |
GPS303G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Warranty Time: |
1 Year |
| Application: |
Tracking Car/Motorcycle/Bike |
| Fuel Sensor To Detect Fuel Level: |
Yes |
| Remote Cut Off Engine: |
Yes |
| Acc Work Alarm: |
Yes |
| Network: |
GSM/GPRS |
| GPS Module: |
Ns1315 |
| GPS Sensitivity: |
-159dBm |
| GPS Accurancy: |
5m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9100 |
Product Description

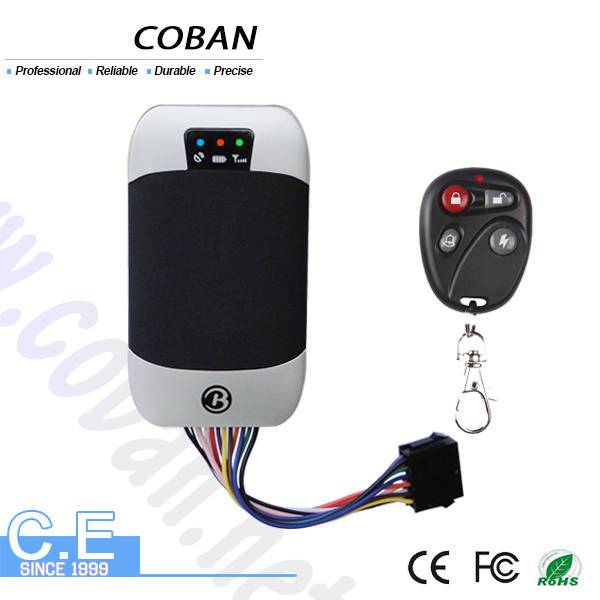

Remote Engine Cut off GPS Tracker with Fuel Sensor by Web/Phone Tracking Software
Model: GPS 303
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2. Features
1. Handheld and Vehicle purpose.
2. Built-in GSM, GPS antenna, compact, elegant appearance.
3. Support GPS and LBS (Location based service) double tracking solutions.
4. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
5. Support configure the settings remotely
6. Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
This device is divided into the following four types according to the function parts:
Type A: Handheld, simple function, tracking, monitoring, with home charger, no external hardness.
Type B: Simple car solution with 3 PIN harness for 12/24V power supply & ACC detection, tracking and monitor.
Type C: Fully functional vehicle with 12 PIN harness for ACC, door, cut off oil and power, Support fuel measurement
Type D: Add remote controller to ARM & DISARM on the basis of type C.
3. Fuctions
-Auto track continuously
-Automatic update positions of vehicle turns
-Location based service (LBS)
-Voice Monitor
-Low battery alarm
-External Power off alarm (Suitable for B, C and D model)
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-ACC working alarm (Option, for model B, C, D)
-Fuel alarm (Option, for model C, D)
-Remote cut off the Oil and Power System (Option, for model C, D)
-Function of Remote Controller (Option, for model D ONLY)
-Check the Vehicle State
-Reset Hardware
-Sleep Mode(save battery mode)
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting/tracking
| Content | Specification |
| DIM | 8.9×5.0×1.6cm |
| Weight | 65g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | NS1315 |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
