| Prod Model: |
WNK58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range Down: |
100:1 |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
0.25% of Url for 1 Year |
| Temperature Drift: |
0.0625% of Url/10oc |
| Protection Class: |
IP66/67 |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.075% |
| Pressure Range: |
-4000kpa~4000kpa |
Product Description
Remote Sealedl 4-20mA Hart Double Flange Differential Pressure Transmitter for Level Measurement Product feature
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
Product application
It can be used below particular occasiaon:
1.Need to isolate the high temperature medium with transmitter.
2. The measuring medium is corrosive to the transmitter.
3.The measuring medium solidification or crystallization due to environmental or temperature changes.
4.Suspended liquid or high viscosity medium.
Technical Data| WNK58 smart double flange differential pressure transmitter/liquid level transmitter |
| Measured media | liquid, gas and steam |
| Pressure range | +/-4000kPa |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.25% of URL for 1 year |
| Temperature drift | ±0.0625% of URL/10ºC |
| Housing material | Aluminum14 |
| Diaphragm material | 316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option |
| Fluid filled | Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option |
| Mechanical connection | M20×1.5;G1/2;1/2NPT, Customization |
| Protection class | IP66/67 |
| Ex-proof | ExiaII CT4/CT6, ExidIICT6 |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LC |
| Process temperature | -45 to 250ºC |

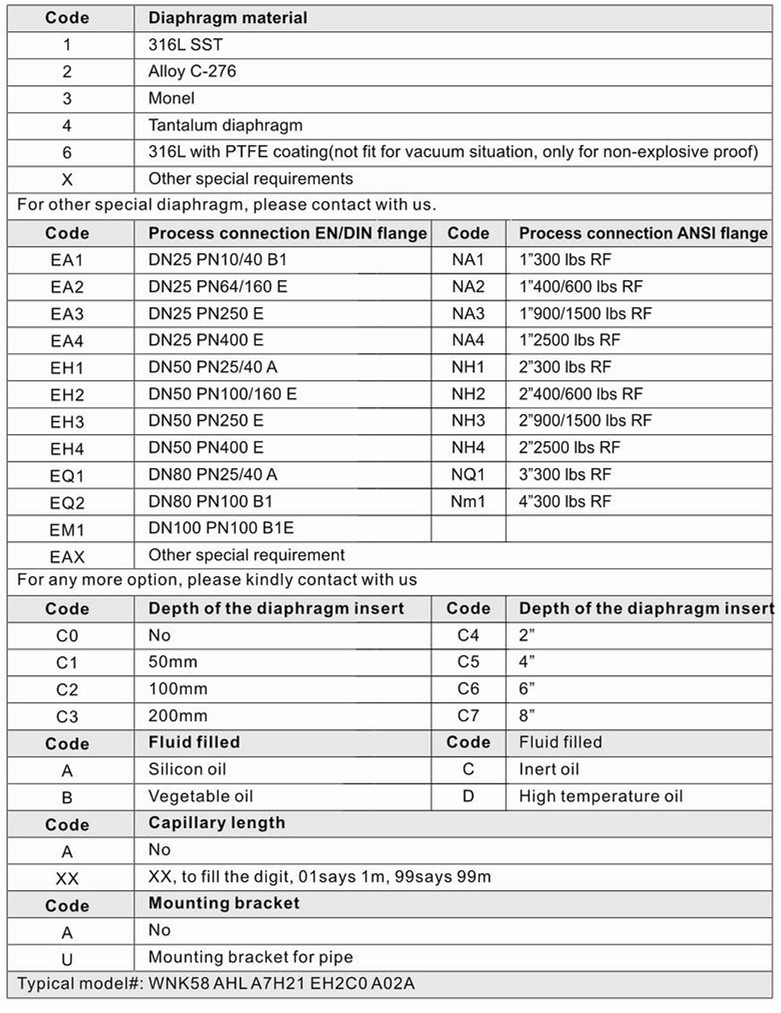

Ordering sheet

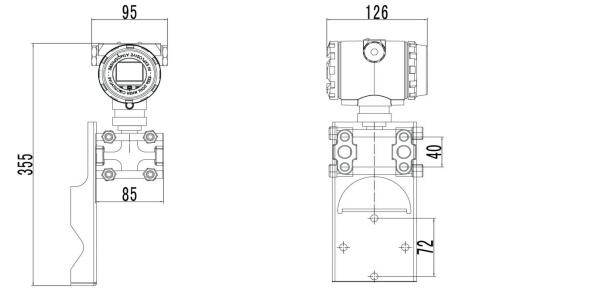

Installation diagram
Why Choose us?
1. we are manufacturer, with more than 14 years producing experience in our field.
2. Our produce quality is guaranteed, since 100% of products we do temperature compensation and aging test before shipment.
