Replace Hc Series Higher Electrical Insulation Acf Bonding Tapa

Name: Replace Hc Series Higher Electrical Insulation Acf Bonding Tapa
Brand: all-electronics-online.com
SKU: 833199745
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 33.6-36/Square Meter
Min Order:	50/Square Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

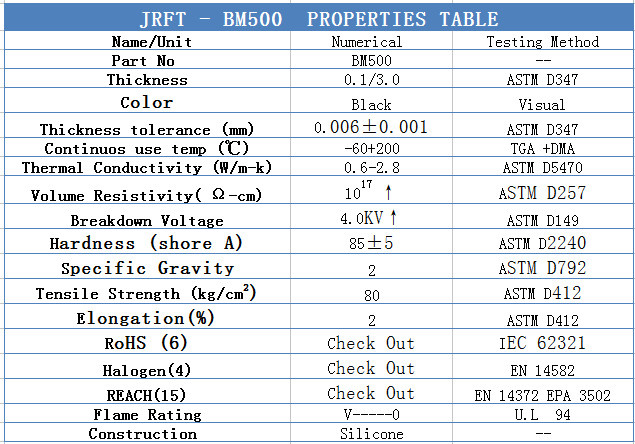

Prod Model:	BM500
Thickness:	0.2mm/0.3mm/0.45mm
Continuous Use Temp:	-60~200 Degree
Thermal Conductivity:	0.6-2.8W/M-K
Hardness:	85+-Shore a
Specific Gravity:	2.0
Tensile Strength:	80 Kg/Cm2
Flame:	94V0
Application:	TV/LCD
Type:	Insulation Film
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	A 105
Maximum Voltage:	>100KV
Certification:	SGS
Brand:	Jrft

Product Description

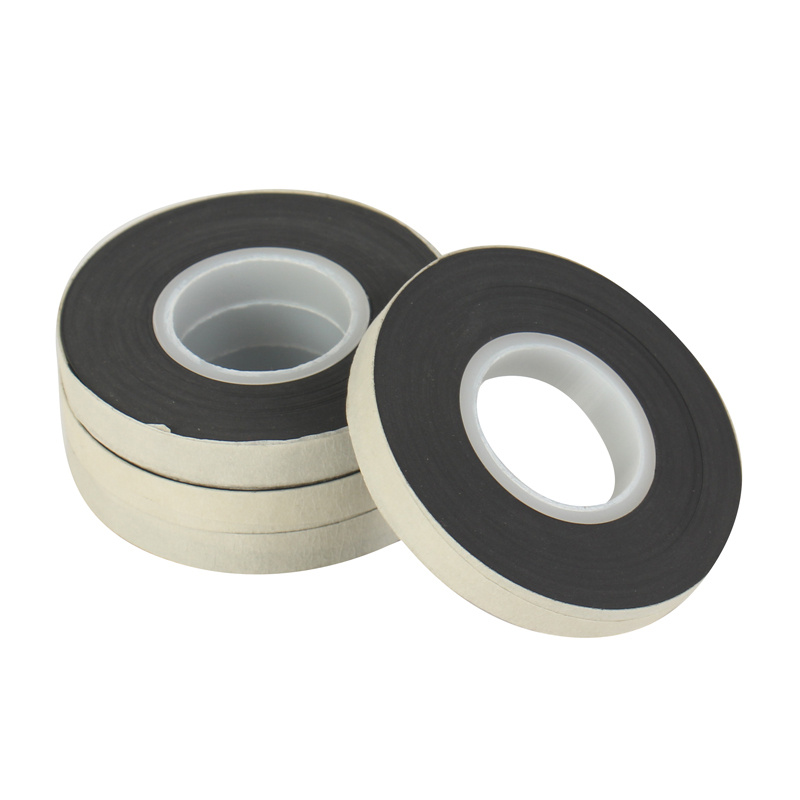

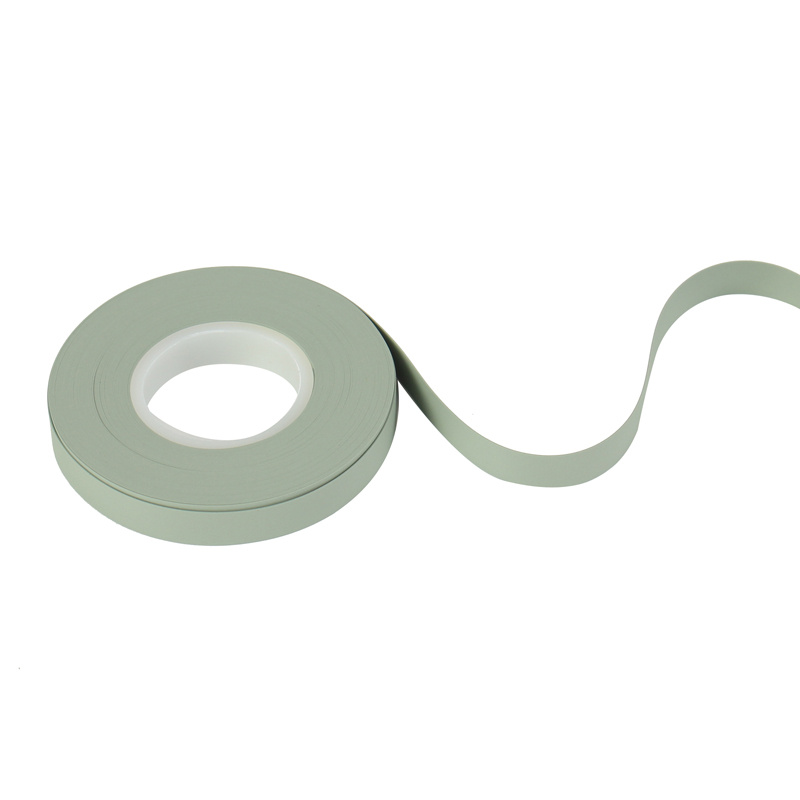

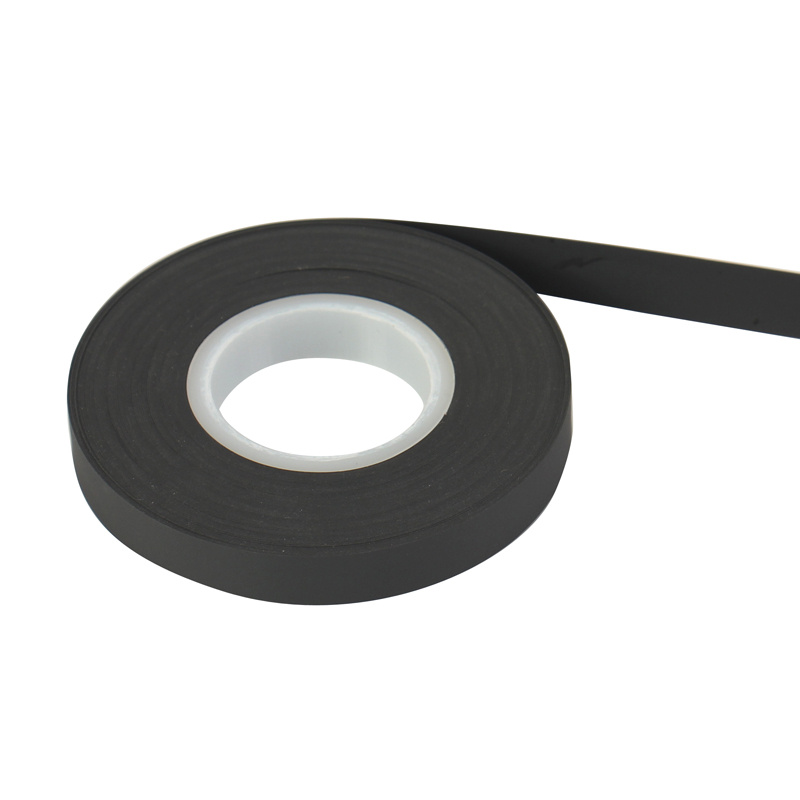

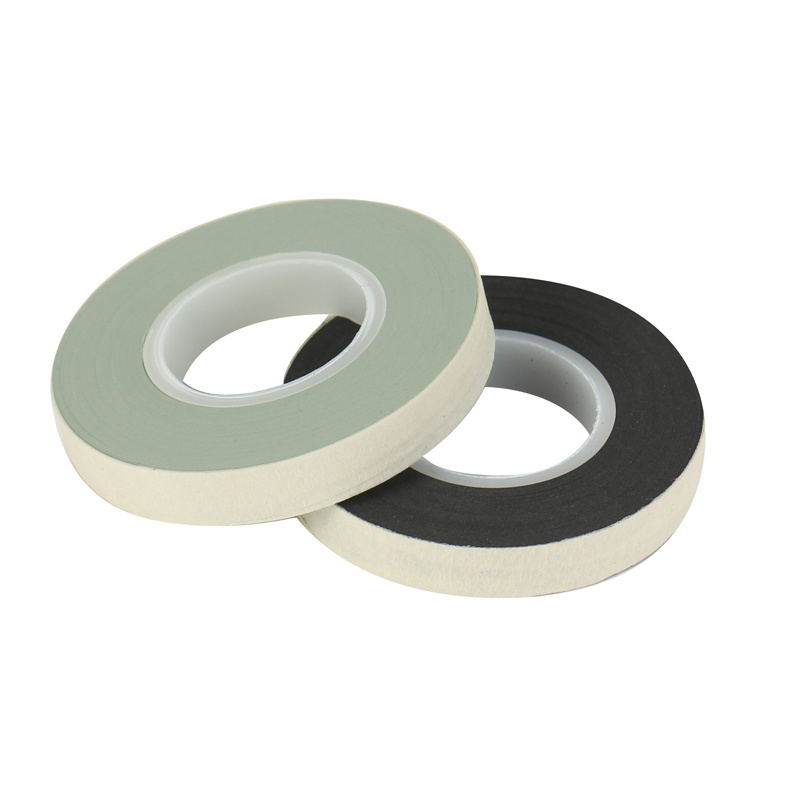

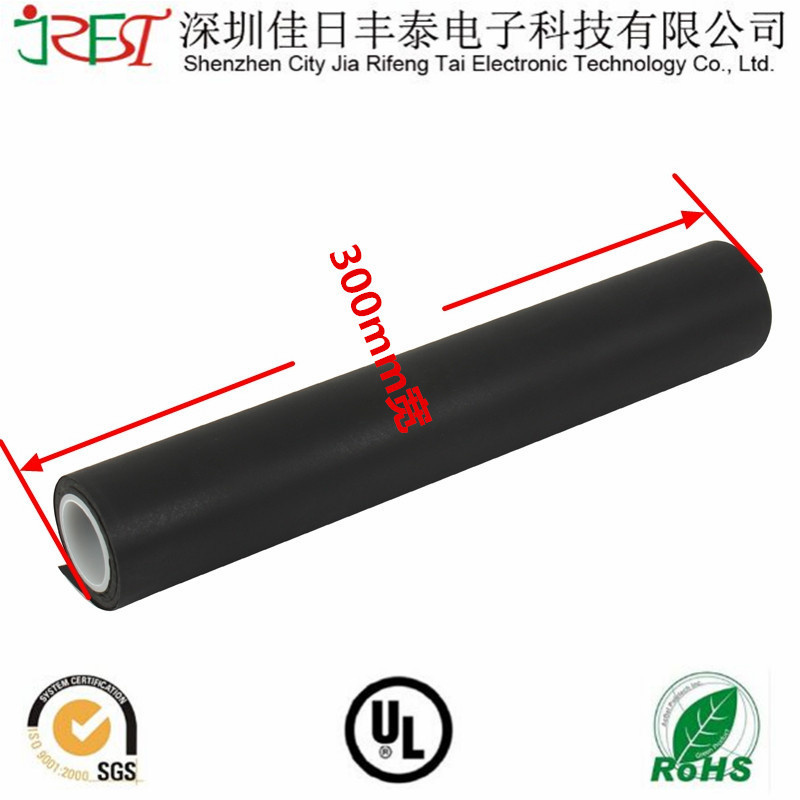

BM500 Bonding Silicone Rubber Sheet with silicone as carrier, through adding high performance nano material and heat conduction material made into by thin material flattener. It has excellent thermal conduction performance, excellent heat resistance and surface antistatic property . Completely replace the Shin Etsu HC series, HC-A series, HC-DS series in performance.

BM500 used in various types of display screen hot-press binding technology, put it on the bottom surface of thermal head , have a buffer effect on temperature, so that the temperature is uniform, isolation hot pressed products in direct contact with the thermal head, also has to prevent isolation protective effect of electrostatic leakage.

Applications:
1.ITO conductive glass
2.Electronic, electrical appliances
3.Flexible board (FPC)
4.Insulating thermal conduction semiconductor
5.Thermal conductive film, ACF heat pressing engineering
6.Thermistors and temperature sensors

Material composition:
1.Silicone rubber, fiberglass cloth etc.
2.High performance nano materials and heat conduction materials

Features:
1.Thermal resistance : 0.63 ºC -in2/W (@ 50psi)
2.low fastening pressure
3.Surface smooth and highly adapted
4.Electrical insulation

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
