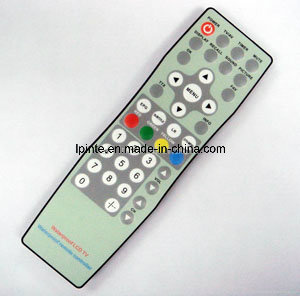

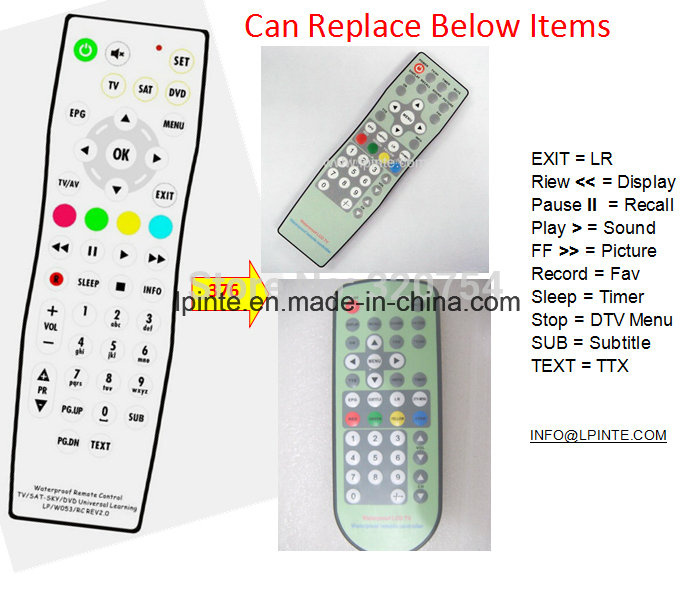

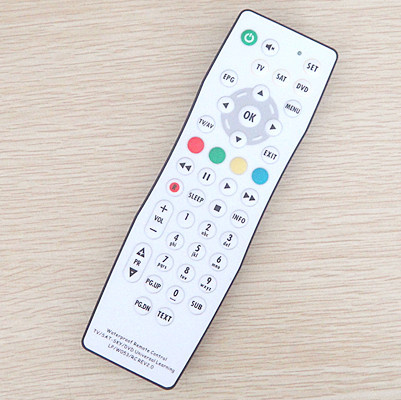

Replace Waterproof LCD TV Remote Control for Mirror TV Konci

Name: Replace Waterproof LCD TV Remote Control for Mirror TV Konci
Brand: all-electronics-online.com
SKU: 784748375
Availability: InStock
Rating: 5 (30 reviews)

Price:	US $ 75/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPW053REV2.0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof Standard:	IP67
Customized:	Yes
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	Button Battery

Product Description

replace waterproof lcd tv remote control mirror konci
Universal Programming remote control

Amount USD75.00 for 1pcs get 1pcs promotion, include shipping cost.
That means USD75.0/2pcs deliery to your home or office.
Delivery time: within 7 days.

http://doc.diytrade.com/docdvr/576936/45390312/1468466564.pdf

Waterproof Remote control; Wasserdicht Fernbedienung
Waterproof remote control, IP67 grade.
Perfect as application for light, SPA TV, LCD TV, BATHTOOM TV, OUTDOOR TV...

Specification: LPI-W053

LPI-W053
	Small form factor remote control
	Waterproof IP67
	IR Remote Controller
	Application: Bathroom LCD TV, Steam Room TV
	OEM & ODM are welcome
Specifications
	Number of keys	1~53
	Dimensions	175x52x12mm
	Case	ABS Plastic
	Buttons Type	PET Membrane
	Textplate	YES
	Weight (incl. batteries)	53g
	Battery	DC3.0V/CR2032

Size: L175 x W52 x H11mm
Battery: CR2032 brand long lifespan
Keys: From 1 to 53 max
Your artwork/logo, OEM available.
IC Protocol: Normal standard NEC format, 38kHz. Or pro

grammed code system
Contact us now for your own design to envalue your products.
Small order acceptable
OEM/ODM are welcome.

1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms

LP International Industries Co Ltd was established in 2004, located in Shenzhen China. Focus on wisdom, auto, high technology, energy saving business, OEM/DOM are welcome.

LP INTL has his own design, SMT and assembly facilities which achieved ISO9001, ISO14001 management system.

And take serious QC system to make sure products meet inquirements.

Only One Earth!

LP INTL takes care of the environment and take action on it. All of our material RoHS compliant.

Let's together make the life more better.

Main Products:

1, LEDs:

Chip LED, Lamp LED, SMD LED, power LED, AC LED, full spectrum grow LED

LED Streetlight Road light, LED module Kit, Retrofit LED module, accessories

LED high bay luminaire, LED floodlight, LED tunnel light

LED underwater light, PAR56 LED Swimming pool lights

LED Spotlight, LED bulb, LED tube, LED grow lights, LED aquarium lights

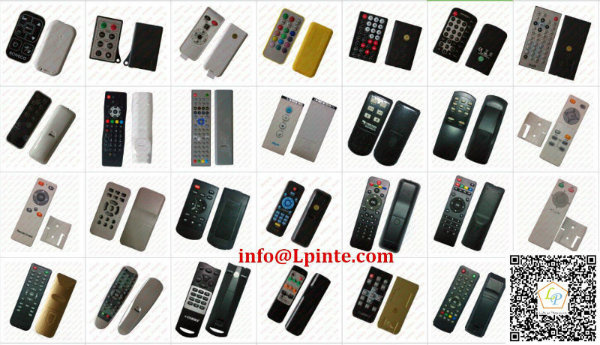

2, Waterproof IP67 Remote controls, Remote Controls
