Residual Current Circuit Breaker with Ce Certificate

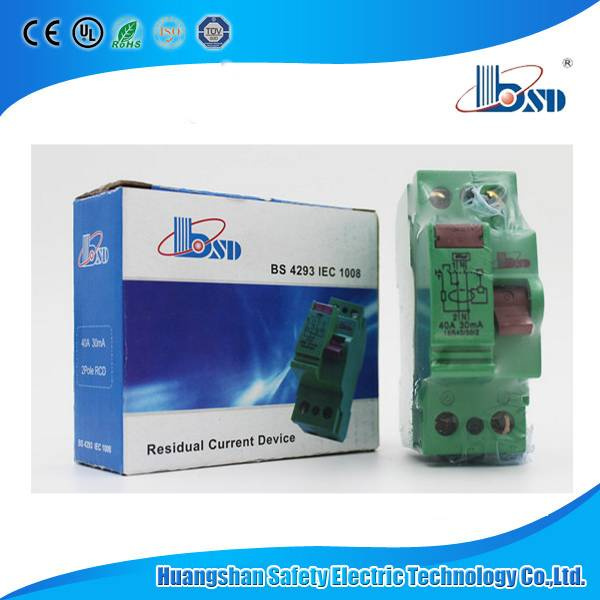

Name: Residual Current Circuit Breaker with Ce Certificate
Brand: all-electronics-online.com
SKU: 814412765
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	US $ 1.85/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	F360
Rated Current:	16A,25A,32A63A
Pole Number:	2p ,4p
Leakage Acting Current:	10mA,30mA,100mA,300mA
Warranty Time:	2 Years
Delivery Time:	Prompt Delivery Time
Service:	OEM ,ODM
Quality:	Class a & B Quality
Standard:	IEC61009.1&BS4293
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Insert
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

Rccb f362 f364 model 2 pole 4 pole F360 earth leakage circuit breaker

Application & Features

1.Elegant appearance, cover and handle in arc shape make comfortable operation.
Contact position indicating window.
2.In case of overload to protected circuit,RCCB handle trips and stays at central position, which enables a
quick solution to the faulty line.The handle cannot stay in such position when operated manually.
3.Provides protection against earth fault/leakage current and function of isolation.
4.High short-circuit current withstand capacity
5.Applicable to terminal and pin/fork type busbar connection

Technical Data
Model: Electro-magnetic type
Residual Current Characteristics: A, AC
Pole No.: 2, 4
Rated Making and Breaking Capacity: 630A
Rated Current (A): 16, 25, 32, 40, 50, 63A
Rated Voltage: 240/415V AC
Rated Frequency: 50/60 Hz
Rated Residual Operating Current IΔn (A): 0.01, 0.03, 0.1, 0.3, 0.5
Rated Residual Non-operating Current I Δno: 0.5I Δn
Rated Conditional Short-circuit Current Inc: 10kA
Rated Conditional Residual Short-circuit Current I Δc: 10kA
Tripping Duration: Instantaneous tripping ≤ 0.1s
Residual Tripping Current Range: 0.5 IΔn~10.5 IΔn
Terminal Connection Height: 19mm
Electro-mechanical Endurance: 4000 cycles
Connection Capacity: Rigid conductor 25mm²
Connection Terminal: Screw terminal

Specification:

Type	Rated Current(A)	LeakAge Acting Current	Range of Break-off	Rated Voltage
SF362	16A,25A,32A,40A,63A	10mA,30mA,100mA,300mA	0.5~1.0	230V(220V)
SF364	25A,32A,40A,63A	30mA,100mA,300mA	0.5~1.0	230V/415V (220V/380V)

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
