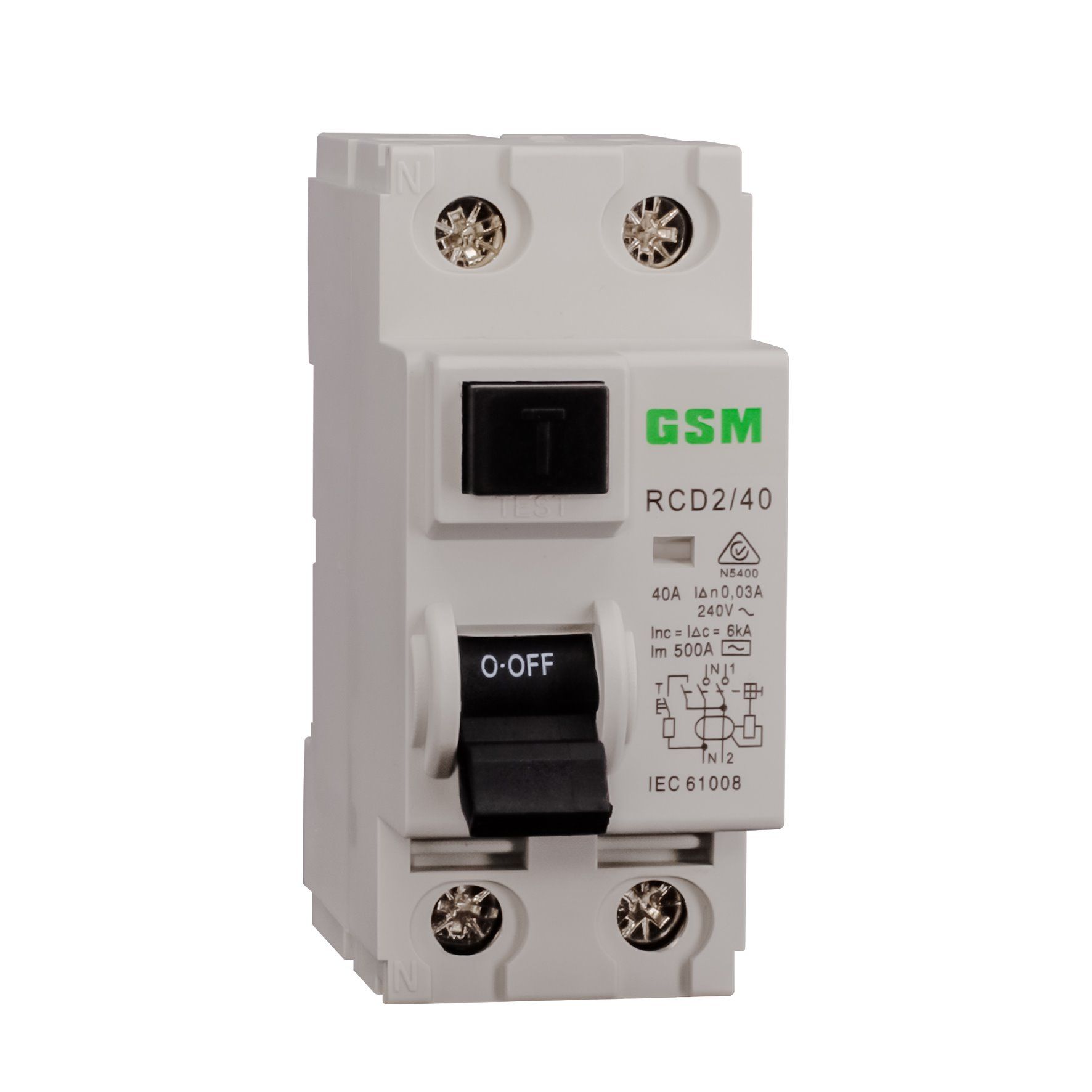

Residual Current Circuit Breakers RCCB Gsl1 (ID) -63 2p

Name: Residual Current Circuit Breakers RCCB Gsl1 (ID) -63 2p
Brand: all-electronics-online.com
SKU: 797157635
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RCCB Gsl1 (ID) -63 2P
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	CE
Poles Number:	2p and 4p

Product Description

Product Description

GSL1(ID)-63 can be used to cut off the fault circuit on the occasion of shock hazard or earth leakage of trunk line, It conforms to IEC61008.

Key Specifications/Special Features:
Rated voltage (Un): 230 and 400V
Rated current: 16, 25, 32, 40 and 63A
Rated frequency: 50/60Hz
Rated breaking capacity: 6kA
Energy limiting class: 3
Rated fault current: 10, 30, 100, 300 and 500mA
Cross-section of connecting lead 1 to 25mm
Isolating class B
Mounting on rail EN 60715 (EN 50022)
Pole numbers: 2 and 4p
Type: A and AC
Standards: IEC61008, EN61008 and VDE0664
Certifications: CE and SAA
All trademarks shown here are for reference purposes only. They are the property of their respective owners and we are not authorized to sell items bearing such trademarks.
Payment Details:
Payment Terms:
T/T or L/C
Minimum Order:
100 to 199 Pieces
Delivery Details:
FOB Port:
Shanghai or Ningbo

Type GSL1(ID)
Number of pole 1P+N, 3P+N
Rated current(A) 16, 20, 25, 40, 50, 63
Rated residual operating current In(mA) 30, 100, 300, 500
Rated voltage(V) AC230/240, AC400/415
Residual operating current scope 0.5 In~1In
Residual current off-time ≤ 0.3S
Short circuit capacity Icu 6000A
Endurance 4000
Protection degree IP20

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

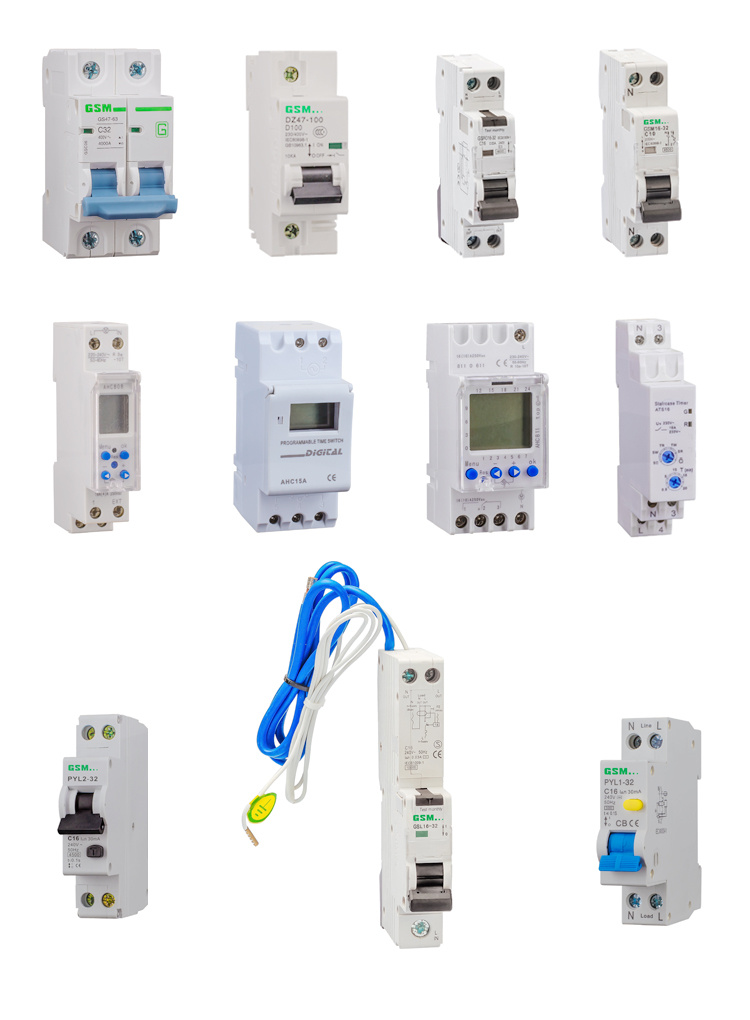

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
