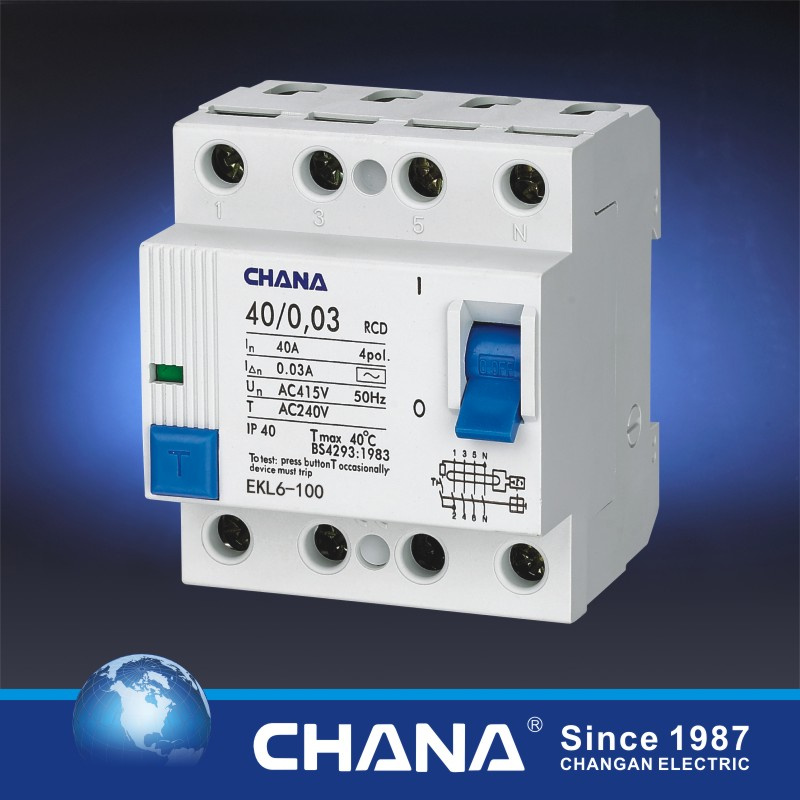

Residual Current Device with Overcurrent Protection Ce Certificate 4p RCD

Name: Residual Current Device with Overcurrent Protection Ce Certificate 4p RCD
Brand: all-electronics-online.com
SKU: 693935292
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 6-6.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL6-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Triping Type:	Thermal
Rated Sensitivity:	0.03
Pole:	2p/4p
Scpd Fuse:	10000
Short-Circuit Current:	6000A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC

Product Description

RCBO

Technical Data
Electrical Features
Type (wave form of the earth leakage sensed): AC
Thermo-magnetic release characteristic: C
Rated current In: 6, 10, 16, 20, 25, 32A
Poles: 1P+N
Rated voltage Ue: 230/240V
Rated sensitivity In: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
Rated short-circuit capacity lcn: 6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top.

Main parameter

Electrical life	2000	Short-circuit	6000
Mechanical life	2000	fault current indicator	yes
Protection degree	IP20	connection	from top to bottom
Storage temperature	25C	Rated frequency	50/60hz

Please feel free to ask anything.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
