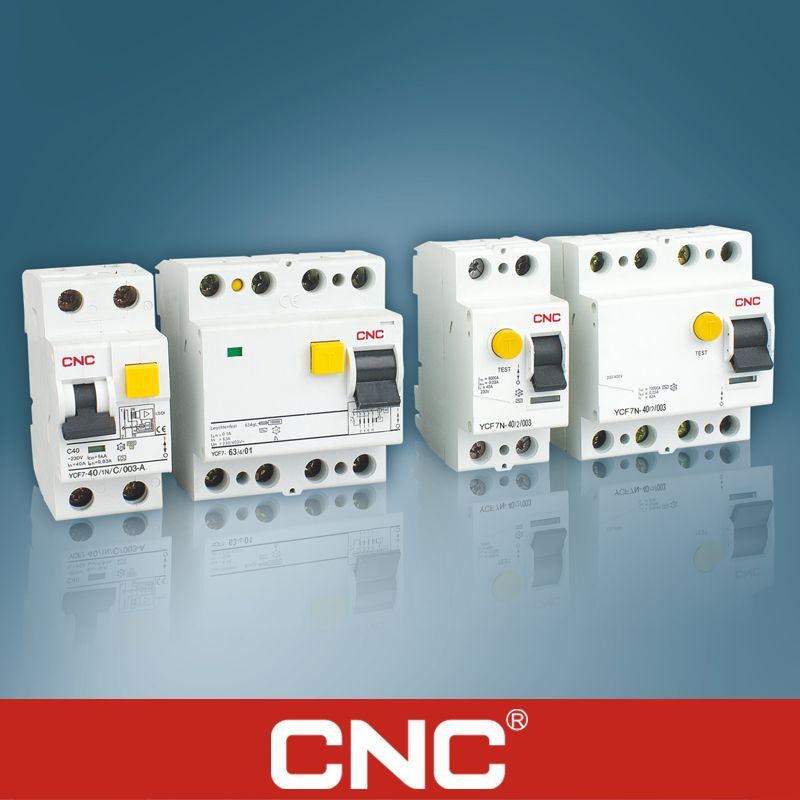

Residual Current Devices (YCF7(N)) Earth Leakage Circuit Breaker

Name: Residual Current Devices (YCF7(N)) Earth Leakage Circuit Breaker
Brand: all-electronics-online.com
SKU: 612096035
Availability: InStock
Rating: 5 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCF7(N)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	RCCB
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	ISO9001-2000
Operation:	Electric Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Structure:	earth leakage circuit breaker

Product Description

Residual Current Devices YCF7(N)

1. Rated voltage: 230/400V
2. Rated tripping current: 10, 30, 100, 300, 500mA
3. Resitivity: AC and pulsating DC
4. IEC61008
5. Degree of protection: Built-in switch IP 40
6. Output 2000PCS/day
7. CE, CB, ISO9001, 14001, IEC
8. OEM

Rated current In	A	16, 25, 32, 40, 63
Type (wave form of the earth leakage sensed)		A, AC
Poles	P	2, 4
Rated voltage Ue	V	230/400
Insulation voltage Ui	V	500
Rated frequency	Hz	50/60
Rated impulse withstand voltage (1.2/50) Uimp	V	6000
Rated sensitivity IΔ n	A	0.03, 0.1, 0.3
Electrical life	t	2000
Mechanical life	t	4000
Terminal size top/bottom for busbar	mm2	25
Tightening torque	N*m	2
Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
Connection		from top

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
