Residual Current Operated Circuit Breaker / RCBO

Name: Residual Current Operated Circuit Breaker / RCBO
Brand: all-electronics-online.com
SKU: 677747872
Availability: InStock
Rating: 4.3 (82 reviews)

Price:	US $ 6.2-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	120/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

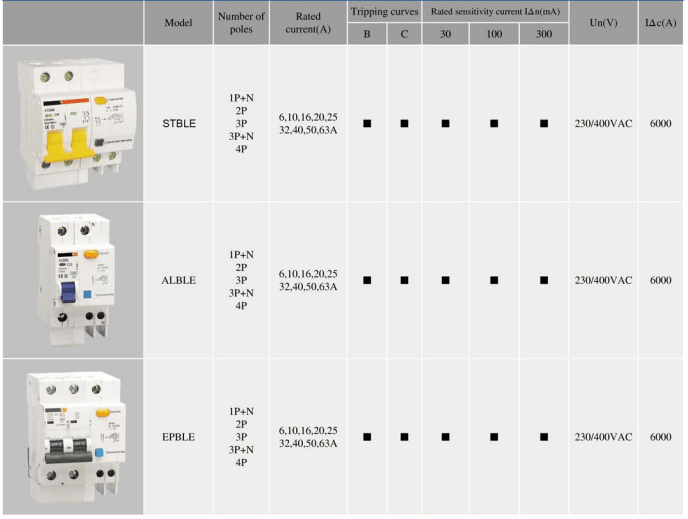

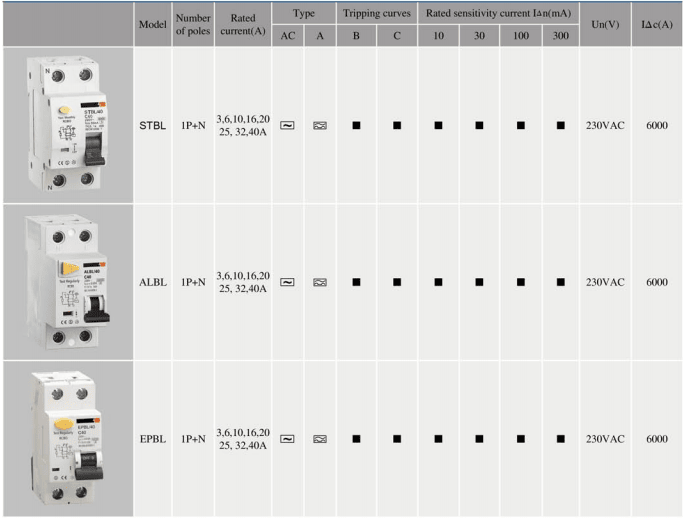

Prod Model:	STBL,ALBL,EPBL,STBLE,ALBLE,EPBLE,STNLE-32,etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standards:	IEC61009-1
Protection:	Ground Fault and Over Current
Rated Current:	6,10,16,20,25,32,40A
Rated Voltage:	230/400V AC
Width:	17.8mm Per Pole
Rated Sensitivity Currents:	10,30,100,300mA
No. Of Pole:	1,2,3,4
Tripping Duration:	<=0.1s
Tripping Curve:	B,C,D
Type Of Terminal:	Lug or Pin
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Certification:	Kema
Poles Number:	1,2,3,4

Product Description

STBL1-40 Residual Current Operated Circuit Breaker
Catalogue
Number
Rated
Current (A)
Number
of Pole
Rating
Type
Un(V)
IΔc(A)
STBL1-40
6,10,16,20,
25,32,40
1P+N
10,30,
100,300
AC,A
230VAC
6000

Stylish modern profile, matches all other SETEN devices Double pole module Positive contact status indicator Available from 6 to 40A rating Available in B,C type Lockable dolly switch
STBL1-63 Residual Current Operated Circuit Breaker
Catalogue
Number
Rated
Current (A)
Number
of Pole
Rating
Type
Un(V)
IΔc(A)
STBL1-63
6,10,16,20,
25,32,40,63
1P+N,2P,3P,
3P+N,4P
30,100,300
AC,A
240V/415V
6000,
10000

STBL1-63 RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 240V/415V. When an electric shock or the residual current of the circuit exceeds the threshold value, the RCBO can cut off the power within the time of 0.ls to protect the personal safety and prevent the equipment from the fault result by the residual current. Combined with MCB RCBO, it can also protect the circuit against overload and short circuit.It conforms to IEC61009 standard.

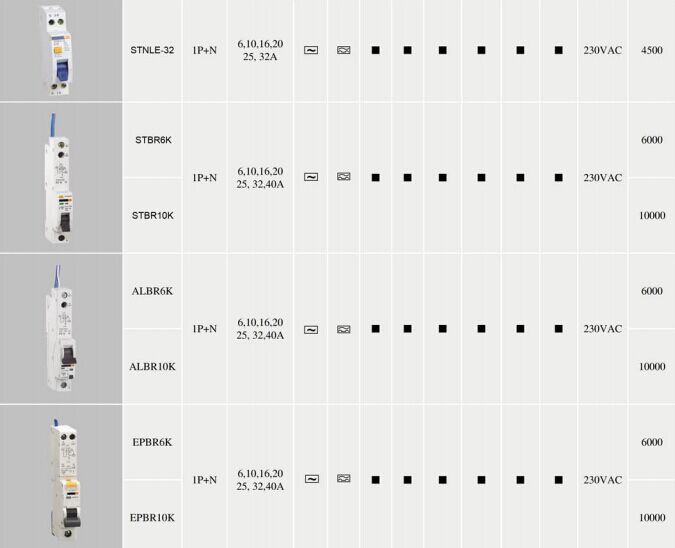

Residual Current Operated Circuit Breaker
Catalogue
Number
Rated
Current (A)
Number
of Pole
Rating
Type
Un(V)
IΔc(A)
STNLE-32
6,10,16,20,
25,32
1P+N
10,30,
100,300
AC,A
230VAC
4500

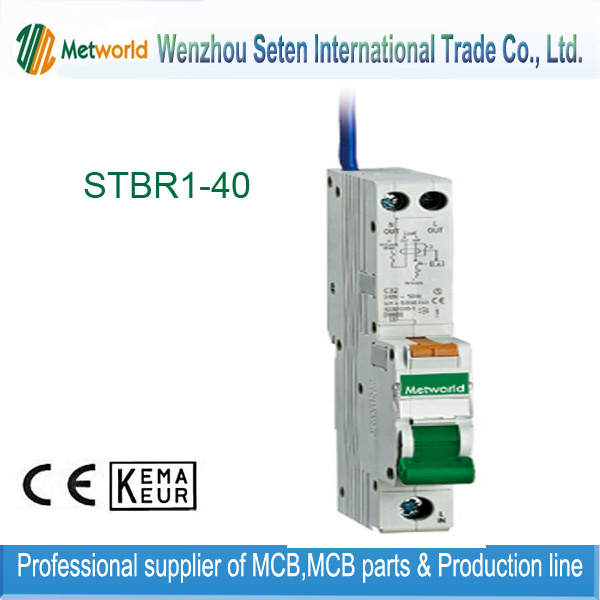

STBR1-40
6,10,16,20,
25,32
1P+N
10,30,
100,300
AC,A
230VAC
6000,
10000

Stylish modern profile, matches all other SETEN devices Simple pole module Positive contact status indicator Available from 6 to 40A rating Available in B,C type Lockable dolly switch
