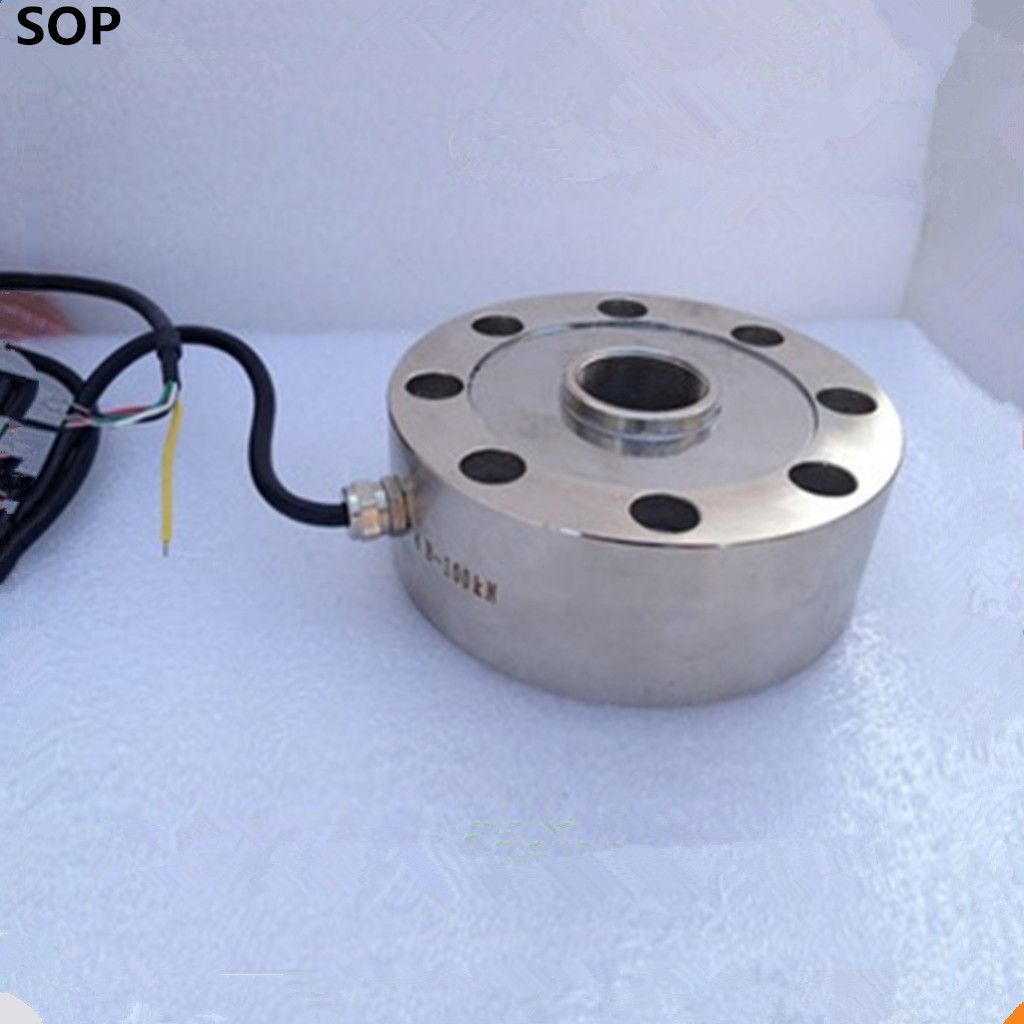

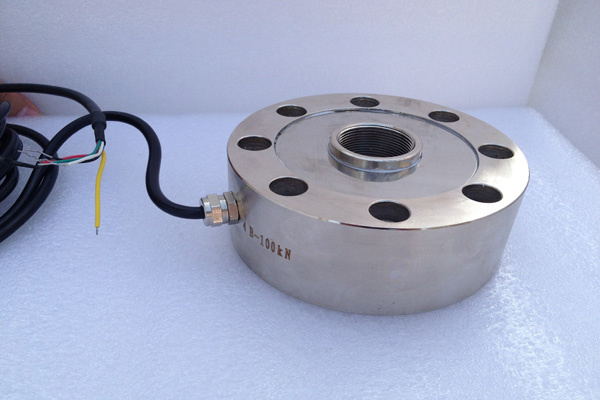

Resistive Spoke Type New Teachnology Load Cell for Automobile Track

Name: Resistive Spoke Type New Teachnology Load Cell for Automobile Track
Brand: all-electronics-online.com
SKU: 825386935
Availability: InStock
Rating: 4.3 (76 reviews)

Price:	US $ 500-600/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLP204-50T
Accuracy Class:	C1
Excitation Voltage:	9-12VDC
Temperature:	-35~+65
Type:	Spoke Type
Warranty:	12 Months

Product Description

Resistive Spoke Type New Teachnology Load Cell for Automobile Track

Parameter Table:

Scale Range	25T 50T 50kib 100kib
Accuracy Class	C1
Comprehensive Error	±0.05%FS
Sensitivity	3.0±0.01mv/v
Need To Change	±0.03%FS/30min
Zero Output	1.0%FS
Input Impdance	700±10Ω
Insulation Resistance	700±5Ω
Temperature Sensitivity	≤500MΩ (100VDC)
Temperature Effect Zero	±0.05%FS10ºC
Temperature Make Up	-10~±40ºC
Temperature	-35~±65ºC
Excitation Voltage	9-12VDC
Safe Overload	150%
Ultimate Overload	200%
Degree Of Protection	IP66

Spoke Load Cell Feature:

high-quality stainless steel material
simple structure
convenient to install and maintenance
high comprehensive precision
low setting height
Protection grate is IP65
good long -term stability

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
