| Prod Model: |
ZX9 |
| Customized Design: |
Yes |
| Rated Working Voltage: |
AC660V;DC 440V |
| Rated Heating Power: |
4.6kw |
| Rated Frequency: |
50Hz |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Material: |
Metal Film Resistor |
| Application: |
for Motor Starting, Speed Adjustment |
| Brand: |
People |
Product Description

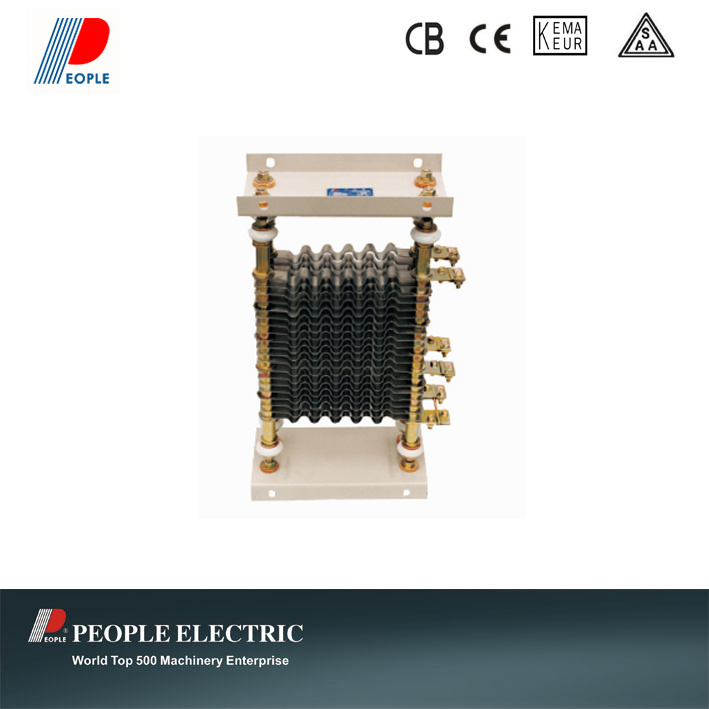

ApplicationZX9 series resistor is applied in AC 50Hz, voltage up 660V or DC 440V circuit. Mainly for motor starting, speed adjustment & braking, it's open type, the rated heating power is 4.6kW, consist of iron, chrome & aluminum wave shape resistor components
Normal working & installment condition1.Temperature: -30ºC~+40ºC
2. Humidity: ≤85% at +20ºC± 5ºC
3. Altitude: ≤2500m
4. Mounting place: indoor place without metal dust or obvious shock
5. Storage temp:-25ºC~55ºC
Specification | Model | +20ºC general resistance(Ω) | Load current(A) | resistor components NO |
| ZX9-1/10 | 0.106 | 215 | 40 |
| ZX9-2/14 | 0.14 | 181 | 40 |
| ZX9-3/20 | 0.188 | 152 | 48 |
| ZX9-4/28 | 0.254 | 128 | 48 |
| ZX9-1/40 | 0.426 | 107 | 40 |
| ZX9-2/55 | 0.56 | 91 | 40 |
| ZX9-3/88 | 0.756 | 76 | 48 |
| ZX9-4/110 | 1.016 | 64 | 48 |
| ZX9-5/152 | 1.344 | 55 | 48 |
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
