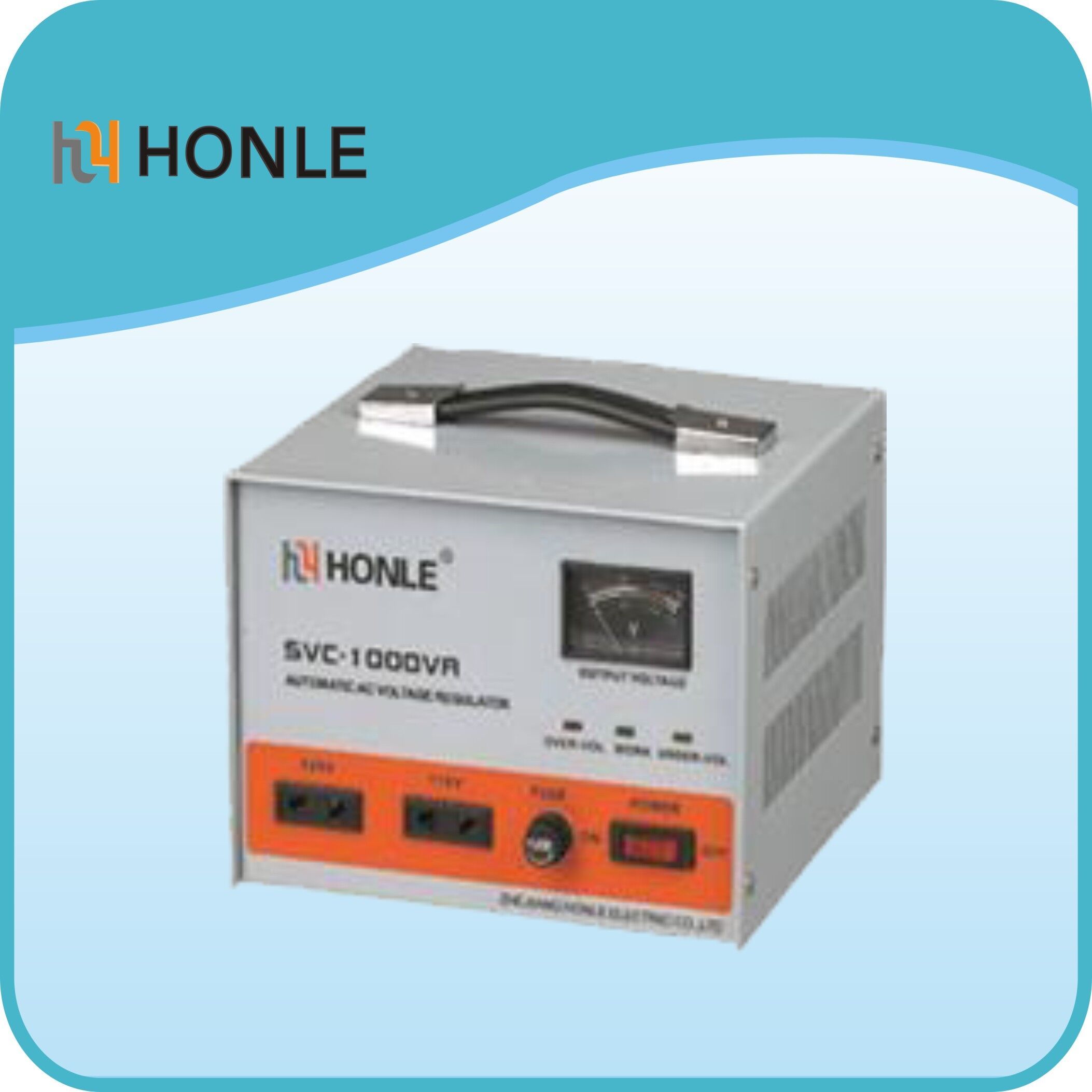

Resonable Price SVC-1000 Single Phase Fully Automatic AC Voltage Regulator
| Price: |
US $ 13.89-246.44/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SVC-1000va |
| Input Voltage: |
140V-250VAC ,110V-250VAC |
| Efficency: |
> 90% |
| Relative Humidy: |
Less Than 90% |
| Output Voltage: |
220V±3% |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
50-60 Hz |
| Brand: |
Honle |
Product Description
Resonable price SVC-1000 Single Phase Fully Automatic AC Voltage RegulatorRelavant models

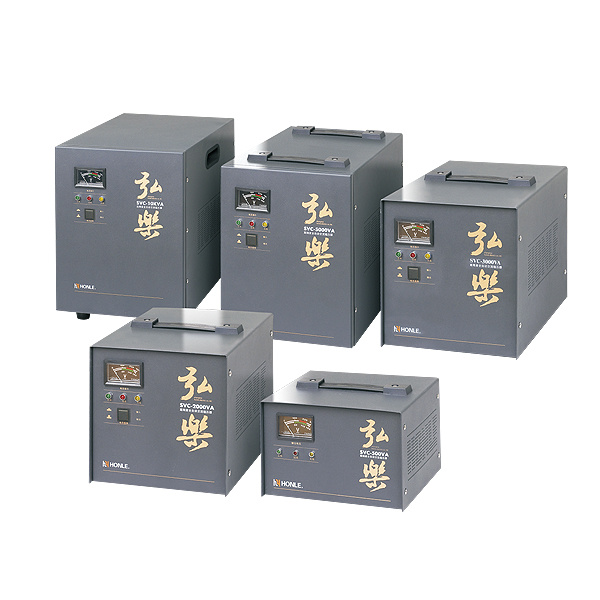

| SVC-500VA | SVC-1000VA | SVC-1500VA | SVC-2000VA |
| SVC-3000VA | SVC-5000VA | SVC-5000VA(DOUDLE COILS) | SVC-7500VA |
| SVC-10000VA(VERTICAL) | SVC-15000VA | SVC-20000VA | SVC-30000VA |
Products Specification
| Name/Model | Voltage stabilizer/SVC-1000va |
|---|
| Phase | Single |
|---|
| Input voltage | 140V-250VAC ,110V-250VAC or 70V-250VAC |
|---|
| Output voltage | 220V±3% |
|---|
| Under-voltage protection | set arcording to users requirement, generally |
|---|
| not set |
| Over-voltage protection | 256V±4V(according to users requiremnts,generally not set |
|---|
| Efficency | > 90% |
|---|
| Regulating speed | < 1S(when input voltage varies 10%) |
|---|
| Temperature-rise | < 60°C(under full-load condition) |
|---|
| Frequency | 50~60Hz |
|---|
| Waveform distortion | No additional distrortion |
|---|
| Max rated output current | 0.5KVA 2A, 1KVA 4A, 1.5KVA 6A, 2KVA 8A, 3KVA 12A, |
|---|
| 5KVA 20A,10KVA 40A, 15KVA 60A, 20KVA 80A, 30KVA 120A |
| Ambient temp | -5°C~+40°C |
|---|
| Relative humidity | Less than 90% |
|---|
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
