| Prod Model: |
FDC |
| Name: |
DC Contactor |
| Rated Working Voltage: |
380V 660V |
| ODM: |
Yes |
| Color: |
Black |
| Warranty: |
1 Year |
| Frequency: |
50/60 Hz |
| Application: |
Controlling |
Product Description
reversing single pole electrical contactor types Product Description

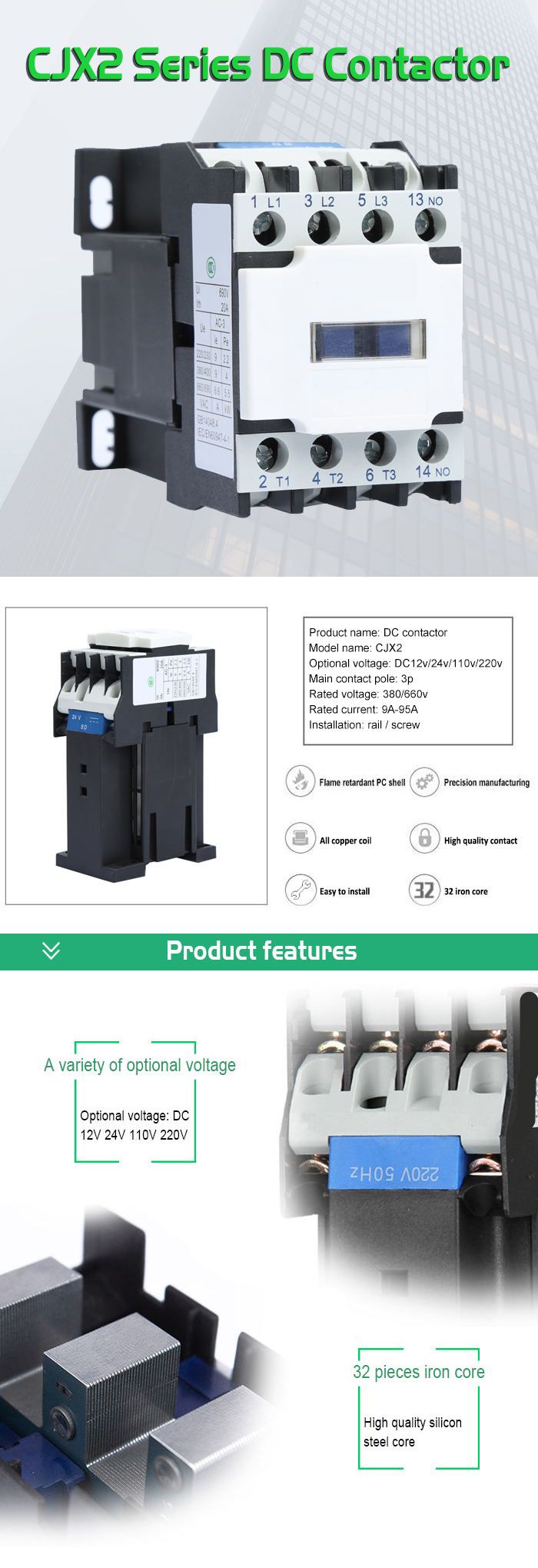

DC Contactor Application:
CJX2-Z series DC AC contactor for AC 50/60hz, rated voltage to 690v, rated current to 95A in the power system. For frequent remote connection and disconnection of AC circuits, the main control object is the motor can also be used to control, such as welding machine, capacitor bank, electric heating, lighting and other loads.DC Contactor Features:1. Contactor small size, light weight, low power consumption, high life expectancy, safe and reliable
2. Three-dimensional layout, the building blocks can be installed above the auxiliary contact group and air delay time extension head assembly is helpful to expand the function, can be equipped with auxiliary contacts on both sides of the coil can be installed at both ends of the absorption device
3. Tunnel-type trough, personnel can not directly touch live parts, flame-retardant shell to ensure personal and nearby electrical safetyDC Contactor Parameters: Model
Parameter | CJX2-09Z | CJX2-12Z | CJX2-18Z | CJX2-25Z | CJX2-32Z | CJX2-40Z | CJX2-50Z | CJX2-65Z | CJX2-80Z | CJX2-95Z |
Rated working current
Ie A (AC-3) | 380V | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| 660V | 6.6 | 8.9 | 12 | 18 | 21 | 34 | 39 | 42 | 49 | 49 |
Rated control power
kw (AC-3) | 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 37 | 37 | 45 | 45 |
| Conventional heating current Ith (A) | 25 | 25 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 126 |
| Rated working voltage Ue | 380V~660V |
| Rated insulation voltage Ui | 690V |
| AC-3 | Electric life (104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| Operating frequency (h-4) | 1200 | 1200 | 1200 | 1200 | 600 | 600 | 600 | 600 | 600 | 600 |
| AC-4 | Electric life (104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 |
| Operating frequency (h-4) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Mechanical life (104) | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 800 | 800 | 600 |
Auxiliary
contacts | Conventional heating current Ith (A) | 10 |
| Electric life | AC-15(360VA) | same as the electric life of main contact (AC-3) |
| DC-13(33W) | same as the electric life of main contact (AC-3) |
| Minimum load | 6V 10mA |
| Coil | Rated control voltage Us | DC 12V 24V 110V 220V |
| Pull-in voltage | 85%~110%Us |
| Release voltage | 0.1-0.7Us |
| Coil power (W) | 11 | 11 | 11 | 13 | 13 | 22 | 22 | 22 | 22 | 22 |
Terminal
(mm) | Number of wire | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 2 |
| Soft wire | 2.5 | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 4 | 6 | 6 | 10 | 10 | 16 | 16 | 16 | 16 | 50 | 25 | 50 | 25 |
| Hard wire | 4 | 4 | 4 | 4 | 6 | 6 | 6 | - | 10 | 10 | 10 | 10 | 25 | - | 25 | - | 50 | - | 50 | - |
Packaging & ShippingDC Contactor Package:Standard export carton packing DC Contactor Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC Contactor Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your DC Contactor when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your DC Contactor quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your DC Contactor?
A:We offer one year warranty for our customer.
