Rex-C100 Digital Pid Temperature Control Controller Thermostat

Name: Rex-C100 Digital Pid Temperature Control Controller Thermostat
Brand: all-electronics-online.com
SKU: 829416615
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 5.94-6.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	REX-C100

Product Description

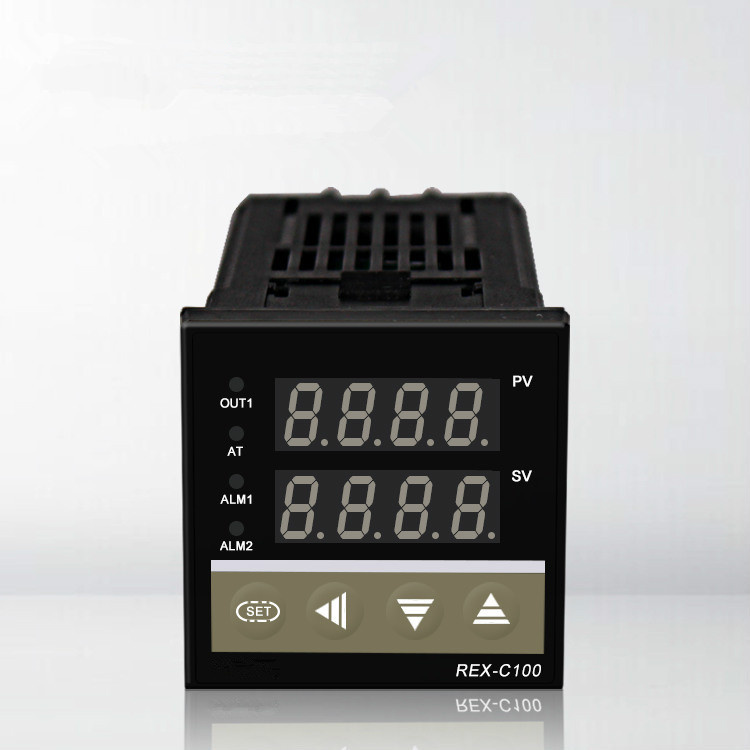

REX-C100 Digital PID Temperature Control Controller Thermostat

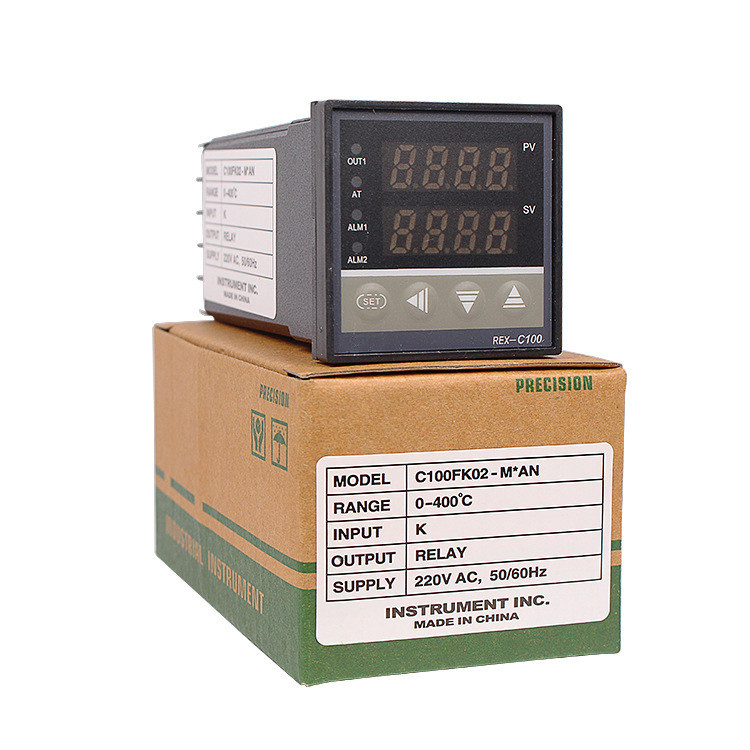

Product model:REX-C100FK02-M*AN
Output:RELAY
Dimensions:about 48mm×48mm×110mm(APP)
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2 Celsius (can be modified by software in 0~50 Celsius )
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 2 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range:0 to 400 Celsius
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50 Celsius ,
environment with no corrosive gas 30~85% RH

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
