| Prod Model: |
RH-806-0012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gold |
| Body: |
Brass and Gold Plated |
| Impedence: |
50ohm |
| Orientation: |
Straight |
| OEM: |
Weclome |
| Factory Direct Sale: |
Yes |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
| Classification: |
Male and Female |
| Interface Type: |
SMA |
Product Description
Jack to reverse plug SMA connector
Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Vibration | 100m/S2 (10 to 2000 Hz), 10G |
| Impendance | 50ohm |
| Frenquency Range | DC-12.4GHz( Semi-Rigled Cable DC-18GNz) |
| Working Voltage | 335V r.m.s at sea level |
| Workstandinging Voltage | 1000V r.m.s at sea level |
| Center Contact Resistance | ≤3Mohm |
| Outer Contact Resistance | ≤2.5Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.28N |
| Coupling Nut Retention Force | ≥180N |
| Insertion Loss | ≤0.15dB/6GHz |
| VoltaggeStanding Wave Ratio : |
| Straight | ≤1.10+0.02f |
| Right Angle | ≤1.20+0.03f |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass |
| Contact | Brass |
| Insulator | PTFE |
| Suitable cable |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |

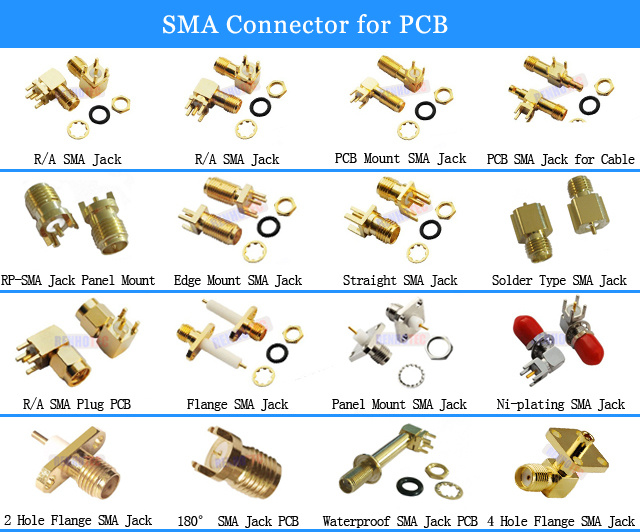

More SMA Female Male Connectors

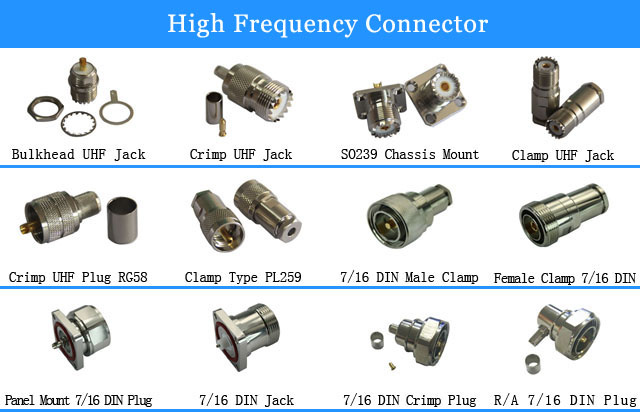

Related Electrical RF Coaxial Connector
Renhotec Hardware Electronics Co., Ltd
Quality is essential to both of us, we believe that excellent quality, reasonable price, mutual benefit will be good basis of our cooperation. If you have any requirement, please contact us. We are looking forward to cooperating with you!
As a major enterprise of RF products in China, our company manufactures a full range of products, including:
1) MMCX RF coaxial connectors
2) MCX RF coaxial connectors
3) SMA RF coaxial connectors
4) SMB RF coaxial connectors
5) SMC RF coaxial connectors
6) SSMA RF coaxial connectors
7) SSMB RF coaxial connectors
8) SSMC RF coaxial connectors
9) TNC RF coaxial connectors

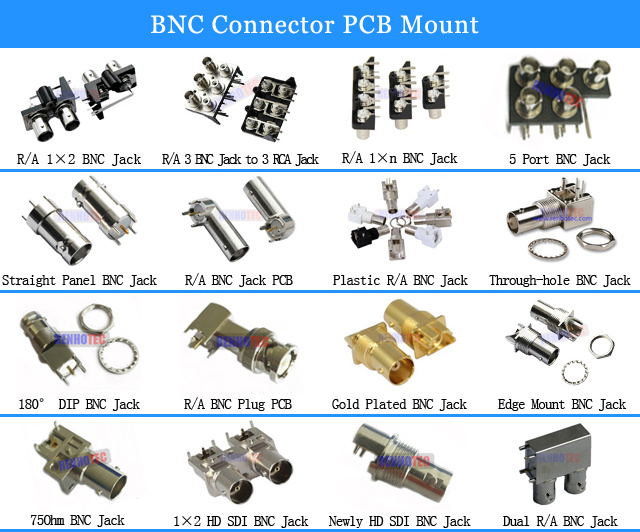

10) BNC RF coaxial connectors
11) N RF coaxial connectors
12) 7/16 (L29) RF coaxial connectors
13) 1.6/5.6 (L9) RF coaxial connectors
14) F RF coaxial connectors
15) 1.0/2.3 (CC4) RF coaxial connectors
16) UHF RF coaxial connectors
17) MINI UHF RF coaxial connectors
18) FME RF coaxial connectors
19) TAC RF coaxial connectors
20) Reverse polarity connectors
21) Plug for cell-phones and special purpose connectors
22) Coaxial terminations
23) Lightning arresters

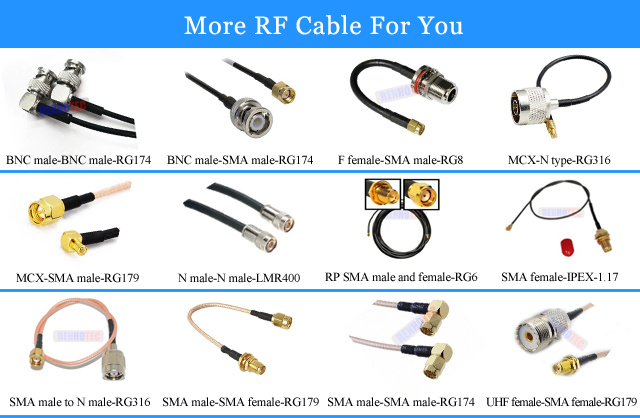

24) Jumper cables

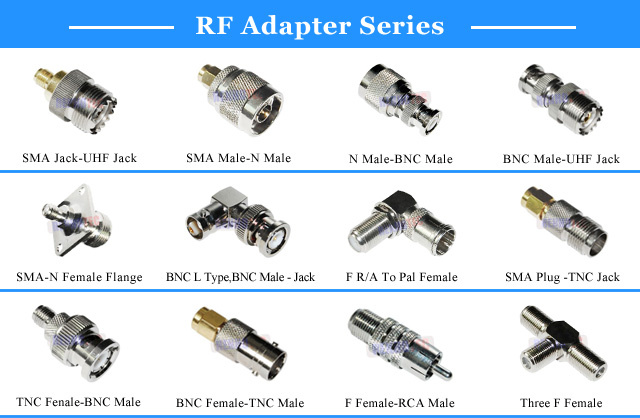

25) Inter-type adaptors
